INS627-8 32/44
If the first unit is opened it will self-activate and a tamper will be signalled to the
control panel. If the second unit is opened both units will self-activate and a
tamper will be signalled to the control panel.
If more than one unit is connected to an installation, the current demand may
exceed the rated current output of the control panel. This can be avoided by
selecting Low Current (LC) or SCB mode on one or more of the connected units.

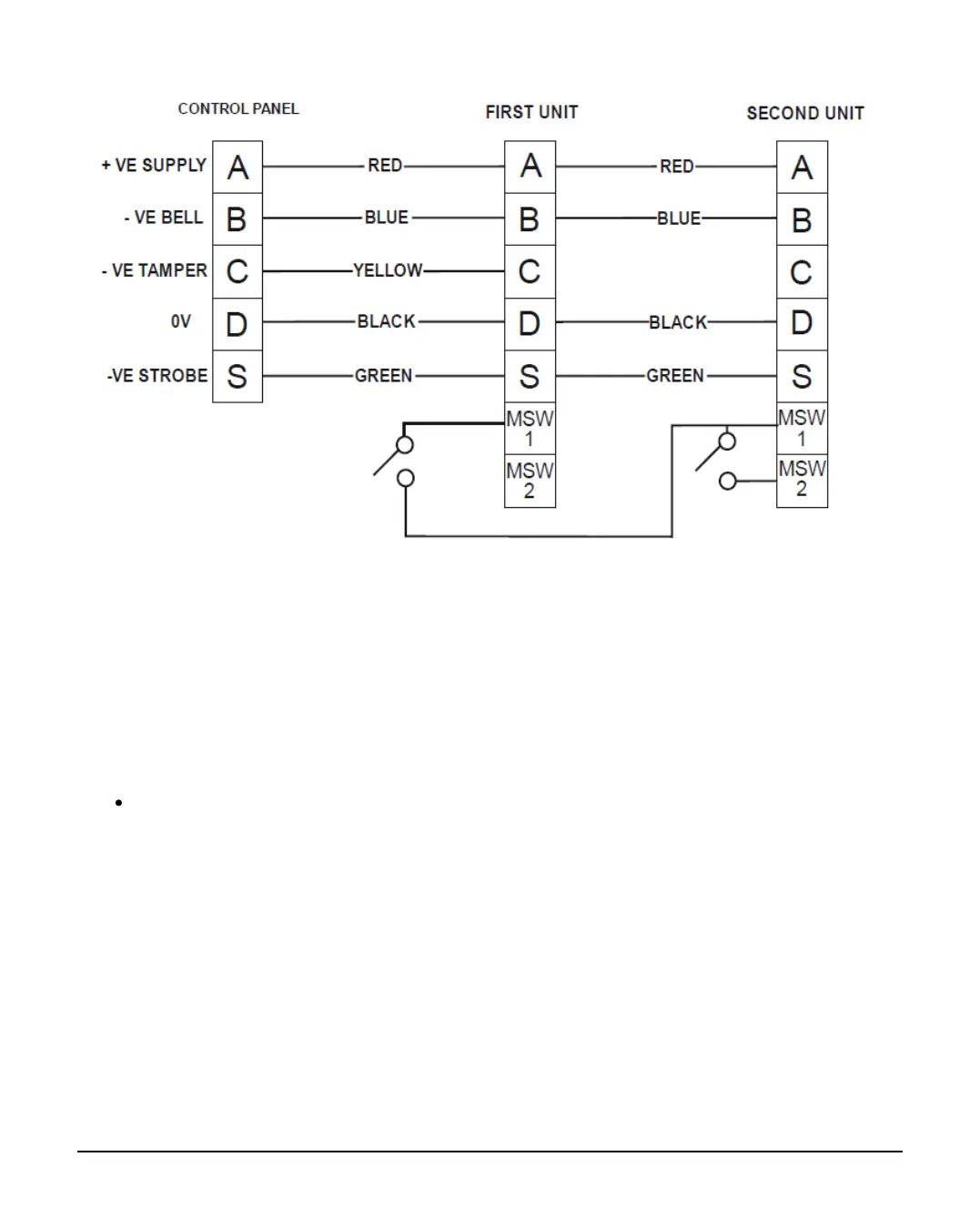

Remove tamper wire from MSW 2 on the first unit and connect to spare core.
On second unit connect spare core into MSW 1.
