LUBRICATION

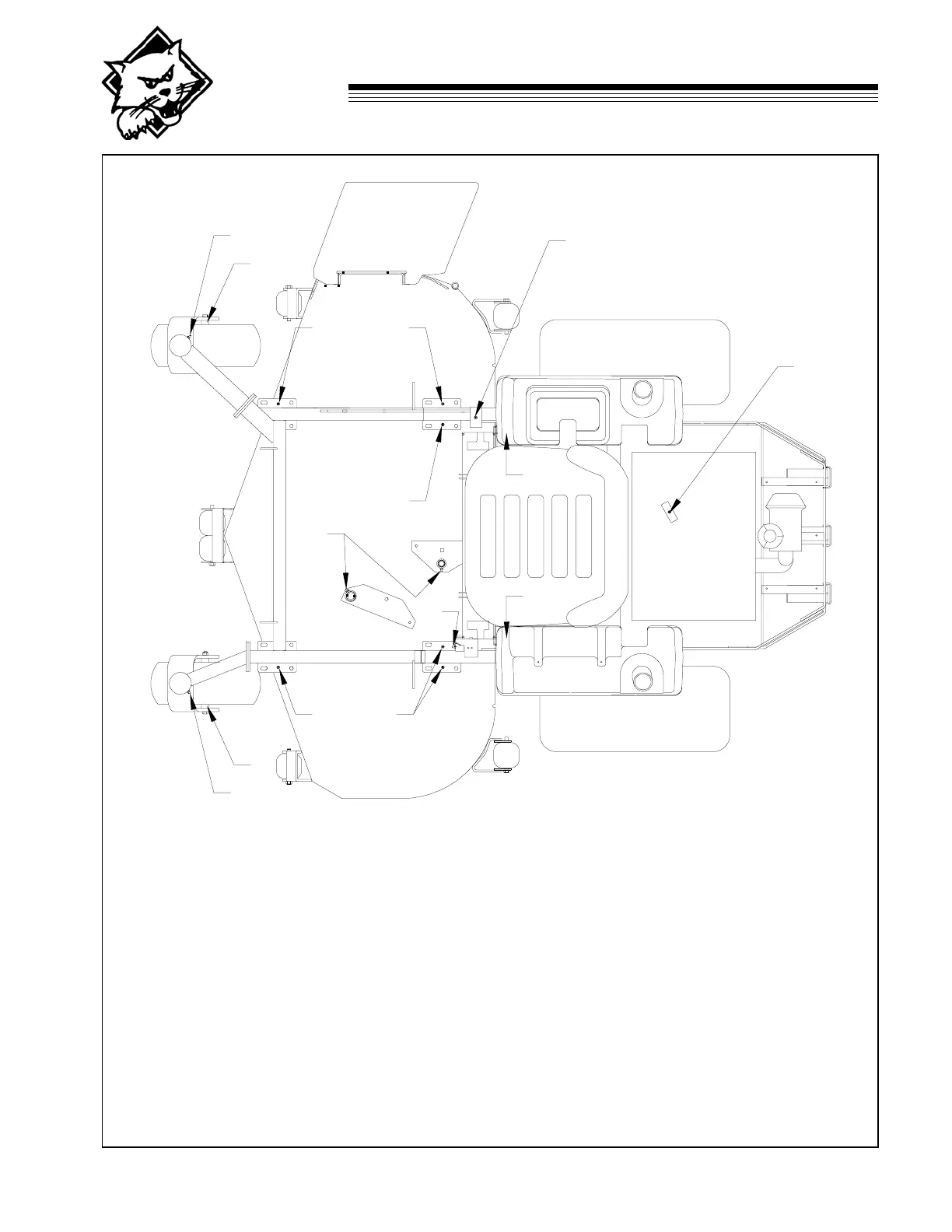

Every 50 hours of operation, lubricate the following points with grease:
1. Caster wheel pivots (2 points)
2. Caster wheel bearings ( 2 points)
3. Deck idler pivot bearings (2 points)
4. Deck lift pivots (6 points)
5. Hydro belt tensioner (1 point under engine deck)
6. Brake lever pivot (1 point)
7. Push arms (2 points located at rear of cutter deck under each fuel tank)
8. Deck lift rockshaft (1 point)
NOTE ON BLADE SPINDLES - The blade spindles on these machines use
a superior sealed bearing that does not require relubrication.
4
3
6
44
2
1
7
5
8
44
2
1
7
