47
ITEM PART NO. DESCRIPTION QTY
ITEM PART NO. DESCRIPTION QTY
ZT 220D
Series
10-1 2721489 TANK-FUEL LH 1
(INCLUDES ITEMS 18 & 19)
10-2 2721490 TANK-FUEL RH 1
(INCLUDES ITEMS 18 & 19)
10-3 2721028 S-CONTROL PANEL W/LAB 1
10-4 2720996 S-ENG DECK W/LABS 1
10-5 2306144 S-DOC TUBE W/LABS 1
10-6 2721806 CAP-FUEL TANK 2
10-7 38542 CLAMP-DOC TUBE 2
10-8 64205-007 BLT-MET. M10-1.5 X 20 8
10-9 38061A SPINDLE-SHIELD 2
10-10 64006-01 LCKWSHR-HELICAL 1/4 6
10-11 A1102966 BLT-M6-1.00 X 16 6
10-12 88042N HOSE CLAMP 11
10-13 2721126 KEY-SWITCH 1
10-14 118020-15 CONTROL-THROTTLE 1
10-15 2188153 SWITCH-CLUTCH 1
10-16 64025-15 NUT-HEX #10-24 KEPS 7
10-17 64152-46 SCR.-SLT HH #10-24 X 1/2 7
10-18 48310 S-BUSHING, FUEL TANK 2
10-19 38540 S-FUEL SHUTOFF VALVE 2
10-20 800488 LOCK WASHER M10 8
10-21 64251-004 WASHER-M10 8
10-22 2188161 VALVE-TANK SELECTOR 2
10-23 48016-11A HOSE 1/4IDX1/2OD X 24.0" 1
10-24 48016-11A HOSE 1/4IDX1/2OD X 22.0" 1

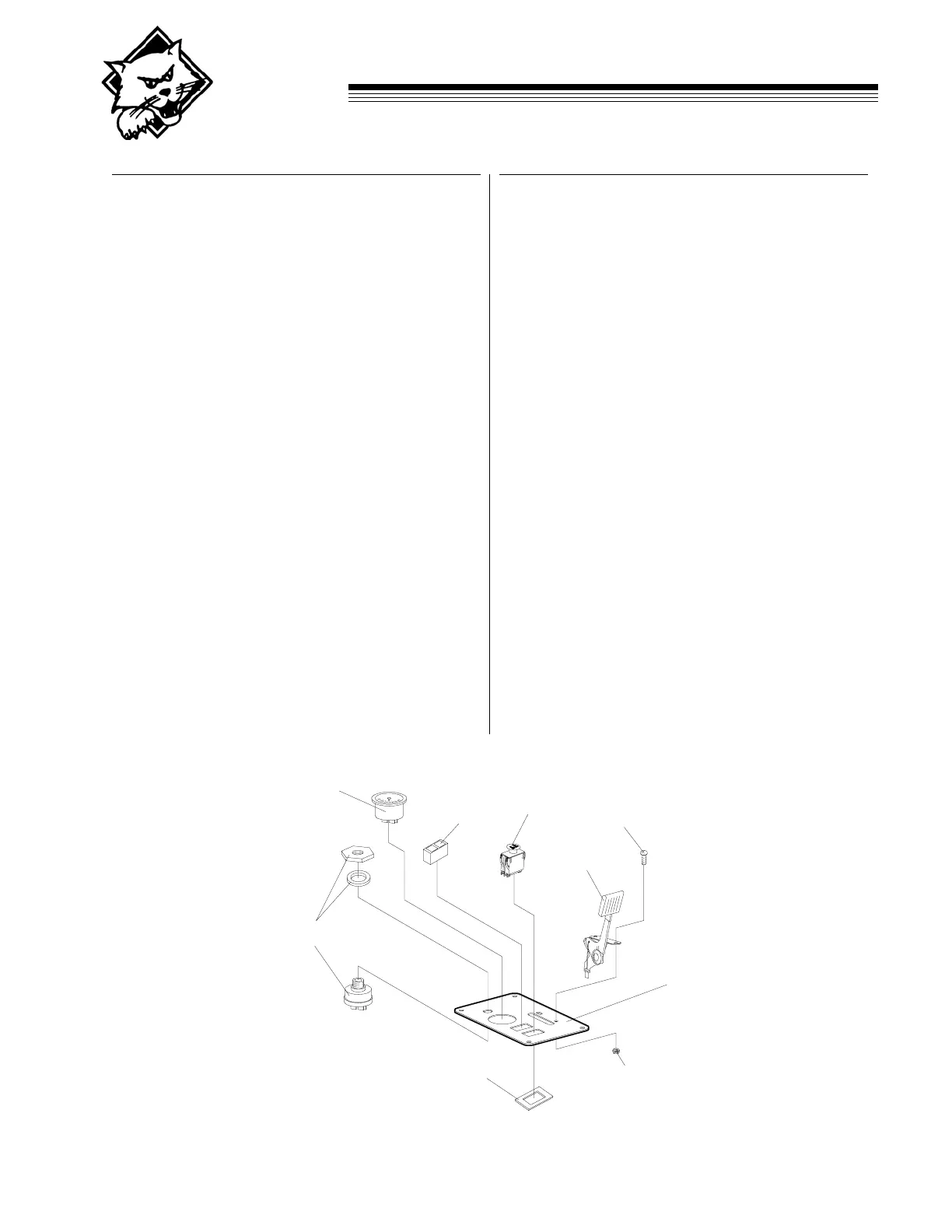

FIGURE 10
FUEL TANKS/CONTROL PANEL
2721543-10
30
44
13
45
15
3
16
14
17
10-25 48016-11A HOSE 1/4IDX1/2OD X 18.0" 1
10-26 FUEL PUMP 1
(AVAILABLE THROUGH YANMAR DEALER)
10-27 2188154 MODULE-DELAY 1
10-28 158122-02 TUBING-SIGHT GLASS 9.0" 1
10-29 64163-03 WSHR-FLT 0.256ID X 18 GA 8
10-30 2188178 SWITCH-RETAINER 1
10-31 2721581.7 BRACKET-FUEL PUMP 1
10-32 58026 3-WAY CONNECTOR 1/4" 1
10-33 48016-13A HOSE-25 ID X 0.50 OD X 2.0" 2
10-34 148263-10 HOSE-FUEL 5/16-30.0" 1
10-35 148263-10 HOSE-FUEL 5/16-42.0" 1
10-36 88042-01 CLAMP-HOSE 3/16 2
10-37 88042-02 CLAMP-HOSE 5/16 2
10-38 64205-025 BLT-METRIC M6-1.00 X 25 4
10-39 64237-02 LOCKNUT-NYLON M6-1.00 4
10-40 48524 CIRCUIT BREAKER 1
10-41 RECTIFIER 1
(AVAILABLE THROUGH YANMAR DEALER)
10-42 64025-14 NUT-HEX #10-32 2
10-43 446118 LOCKWASHER-#10 2
10-44 2721531 TEMPERATURE GAUGE 1
10-45 2721894 CLUSTER-WARNING LIGHT 1
