5 - 13
MAINTENANCE
Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers.
5
Both the oil dipstick and fill cap must be in place before operating the engine. Failure to install the dipstick and fill cap will result in
oil being discharged into the engine compartment
As a final check, check the oil level again with the vehicle on level ground. Like all liquids, oil increases in volume
when warm. The full ‘H’ mark on the dipstick is calibrated for an engine at operating temperature. When the engine is
cold, the oil will be below the full mark. The engine can be operated safely as long as the oil is within the safe oper-
ating range as indicated on the dipstick. Do not operate vehicle if oil level is below the safe area indicated on
the dipstick.

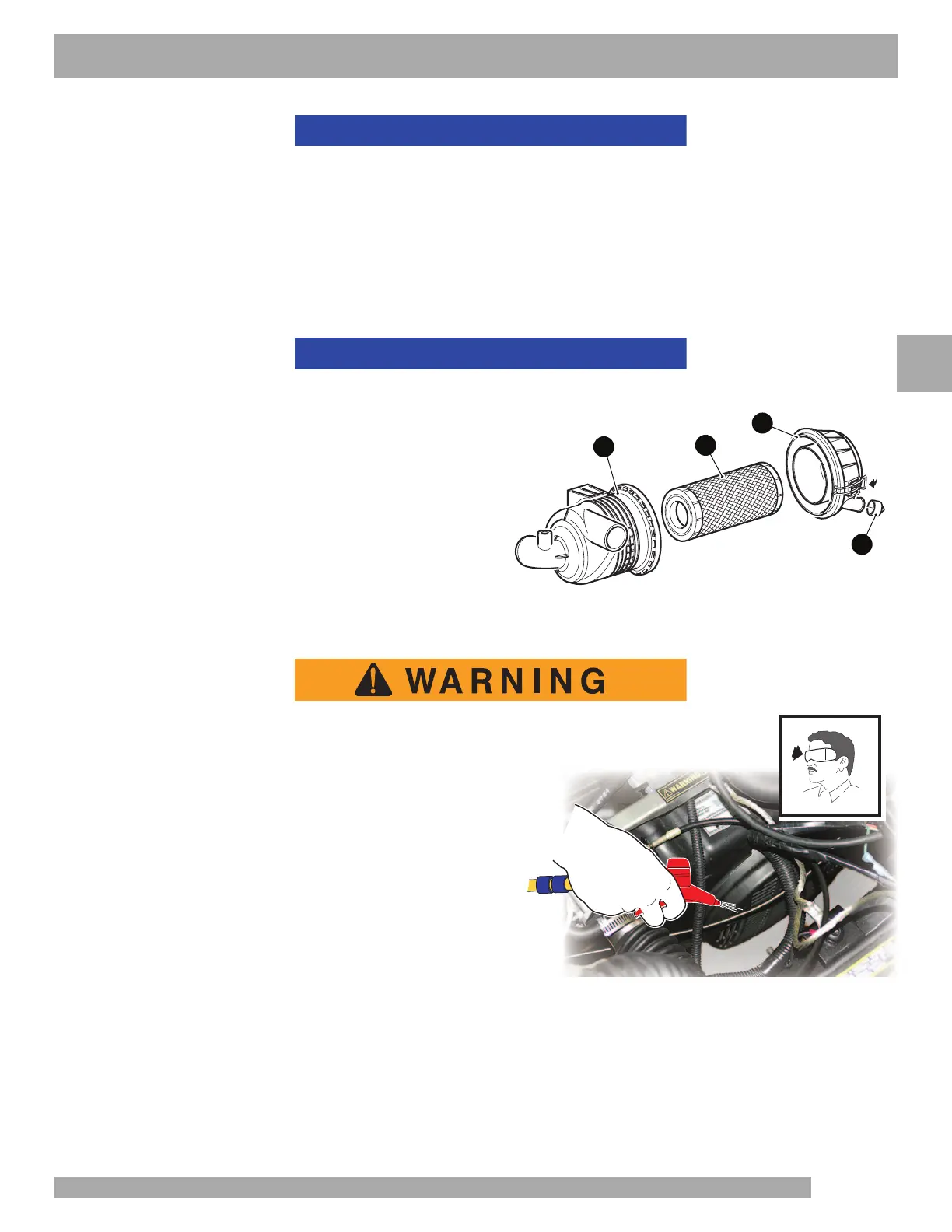

AIR FILTER INSPECTION / REPLACEMENT
The air filter assembly on the vehicle is a dry unit. Do not use oil on the filter element or any part of the unit.
The air cleaner is located under the last forward facing
seat. Raise the seat bottom and remove if necessary.
Unsnap the two clips that secure the cover (2) to the canis-
ter (1), remove the cover to access the air filter element
(2). Remove the air filter element (3) and clean the inside
of the canister (1), the cover (2) and the dust collector (4).
Inspect the air filter element (3) and replace it in accor-
dance with the Periodic Service Schedule. Install the air fil-
ter element (3) and replace the cover (2), making sure it is
properly seated then position the clips and snap them
closed.
AIR INTAKE AND COOLING FINS
To prevent possible burns, engine parts should be
kept clean to reduce risk of overheating and ignition
of accumulated debris. After every off road use,
allow to cool and then check for a build up of dirt
and debris in the air intake and cooling fins. Dirt
and debris may clog the engine’s air cooling sys-
tem. Clean areas shown to prevent engine dam-
age. Keep linkages, springs and controls clean.
Keep area around muffler free of any combustible
material.
At least once a year, (or more often under adverse conditions)
the cooling system should be cleaned. Cleaning will assure an
adequate supply of air to the cooling fins. Compressed air
may be used for routine cooling system maintenance.
