OPERATION 5
GB-15
5.4 STARTING________________________________________________________________
IMPORTANT: Do not use starting assist fluids. Use of
such fluids in the air intake system may be potentially
explosive or cause a “Runaway” engine condition and could
result in serious engine damage.
1. Sit in operator’s seat, make sure the PTO switch (Q) is
“OFF” (down) and the parking brake is engaged.
Remove feet from pedals. Always use the seat belt
when operating tractors equipped with a ROPS.
2. Set throttle lever (T) to half throttle and check that
alarm switch (O) is “ON”.
3. Turn ignition switch (V) to “ON” ( ) position.
Note: At this time the warning lights (N, Y) on the
instrument panel will come on. Check that lights are
operating.
4. Wait until glow plug light goes out, then immediately
turn ignition key to “START” ( ) position. Release as
soon as engine starts.
Note: Do not hold key in “START” position for more than
10 seconds at a time. After 10 seconds the starting
circuit will shutdown and must be reset by returning the
key to the OFF position.
Allow 30 seconds between start-up attempts to allow
time for engine starter motor to cool.
All warning lights should go off after engine starts.
Allow engine to gradually become warm before
operating at high RPM.

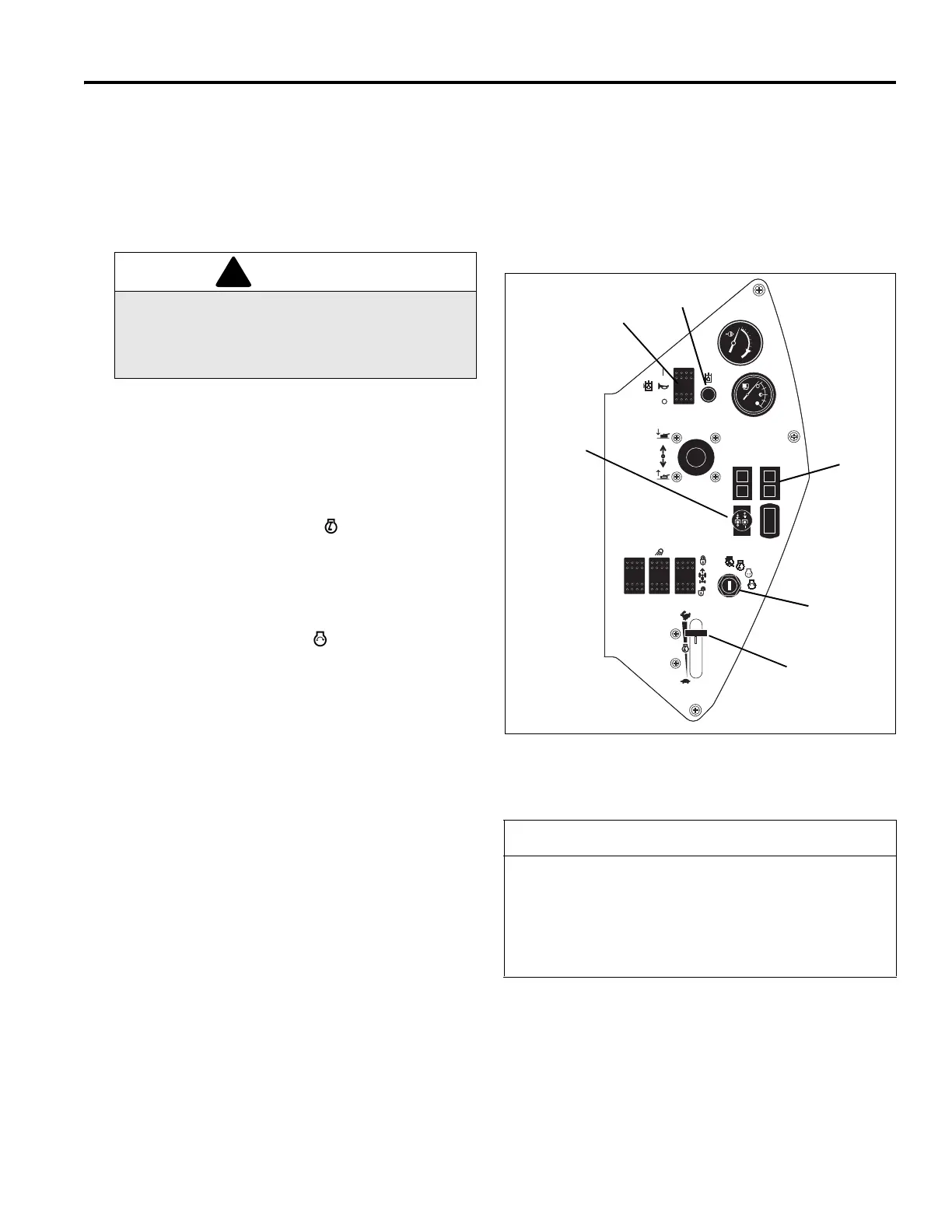

Figure 5A
5.5 STOPPING / PARKING______________________________________________________
To stop:
Remove your foot from traction pedal.
The tractor will
automatically brake when the traction pedal returns to
neutral.
Always engage parking brake, shut off engine and
remove key before leaving operator seat for any reason.
To park the tractor under normal conditions:
1. Disengage the PTO switch (Q) then raise and lock the
implements in the transport position and move away
from the area of operation.
2. Select a flat and level area to park.
a. Release traction pedal to bring the tractor to a com-
plete stop.
b. Disengage all drives, lower implements to the
ground, engage parking brake, reduce throttle to
idle and allow engine to operate at no load for three
to five minutes.
3. Engage parking brake, stop the engine and always
remove the ignition key.
If an emergency arises and the tractor must be parked in the
area of operation, follow the guidelines outlined by the
grounds superintendent.
If the tractor is parked on an incline, chock or block the
wheels.
WARNING
To prevent injuries, sit in the seat, engage
parking brake, place traction pedal in neutral and
PTO switch in OFF position before attempting to
start the engine.
!
T
Y
O
Q
N
V
LF003
CAUTION
Permanent damage to the turbocharger may occur if
the engine is shut down without allowing the
turbocharger time to cool.
To prevent damage, operate the engine at idle with no
load for 3 to 5 minutes before shutting off engine.
