rev 12/98 4 - 1 09-367
OPERATION section 4

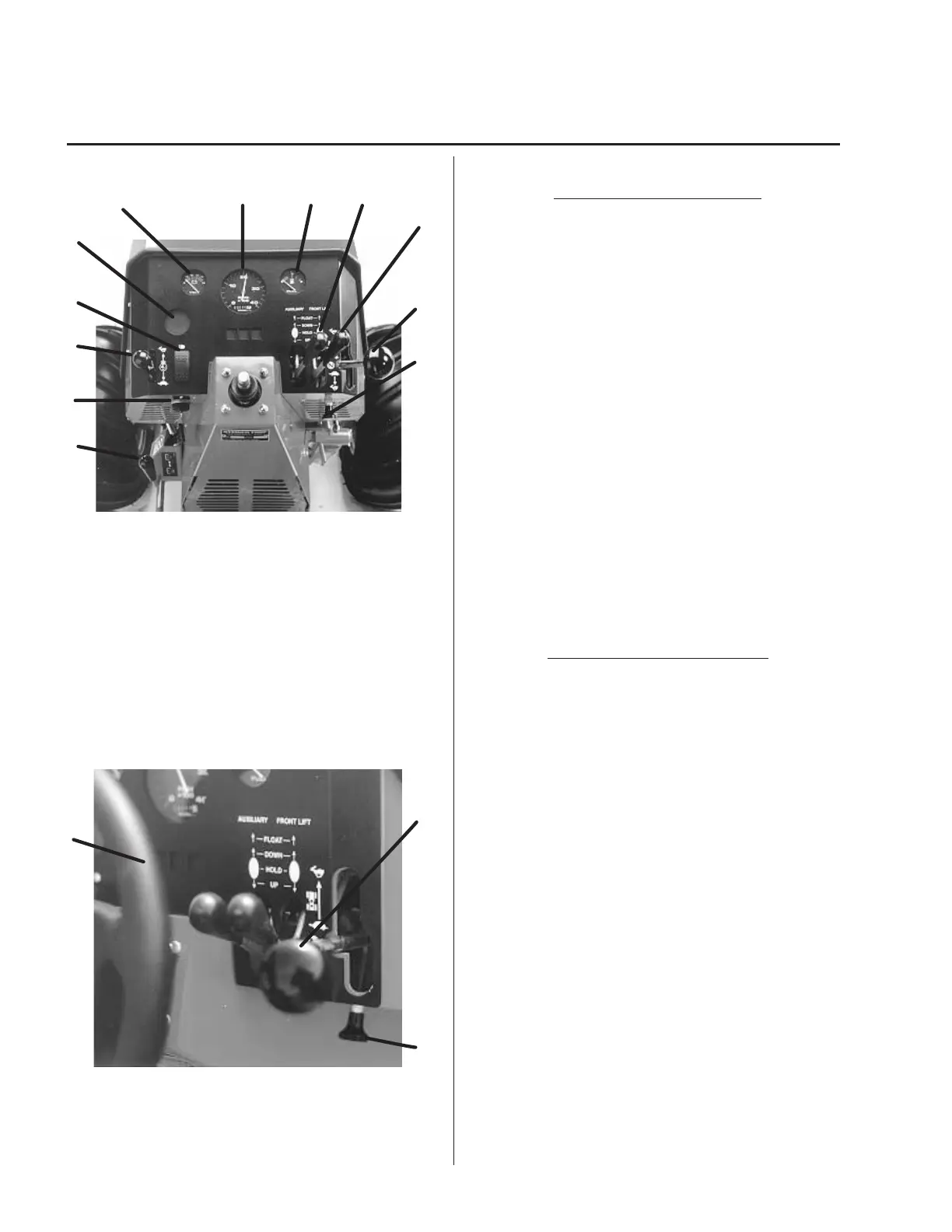

Photo 2 - Controls, Left Side
CONTROLS... Left side
1. PTO Lever - Controls Power Take Off front belt
drive for attachments.
2. Key Switch - Starting and ignition.
3. Throttle Lever - Throttle controls engine speed.
4. Light Switch - Lights.
5. Water Temperature Gauge - Used only on wa
-
ter cooled engines.
6. Voltmeter - Voltmeter shows condition of battery
or charging system.
7. Tachometer and Hour Meter - Shows engine
RPM and records total engine running time.
CONTROLS... Right side
8. Fuel Gauge - Shows fuel level in tank.
9. Auxiliary Hydraulic lever - Auxiliary lever con
-
trols the attachments which are connected to
the auxiliary couplers. Float position is provided
for those attachments which require float.
10. Hydraulic Front Lift Lever - Lift lever controls
front mounted implements. Float position is
provided for those attachments which require
float.
11. Forward - Reverse Lever - Single lever con
-
trols forward and reverse infinitely variable
speeds.
12. Choke - Choke for cold engine starting.
(Gas engines only)
13. Steering wheel - Full power steering for easy
handling.
Photo 3 - Controls, Right Side
13
11
12
11
12
10
1
2
3
4
5
6
7
8
9
