TFI AXT-225 - Step 10 Leg Extension;Curl Cable Routing

AXT-225 Deluxe Home Gym www.tu stu tness.com
25

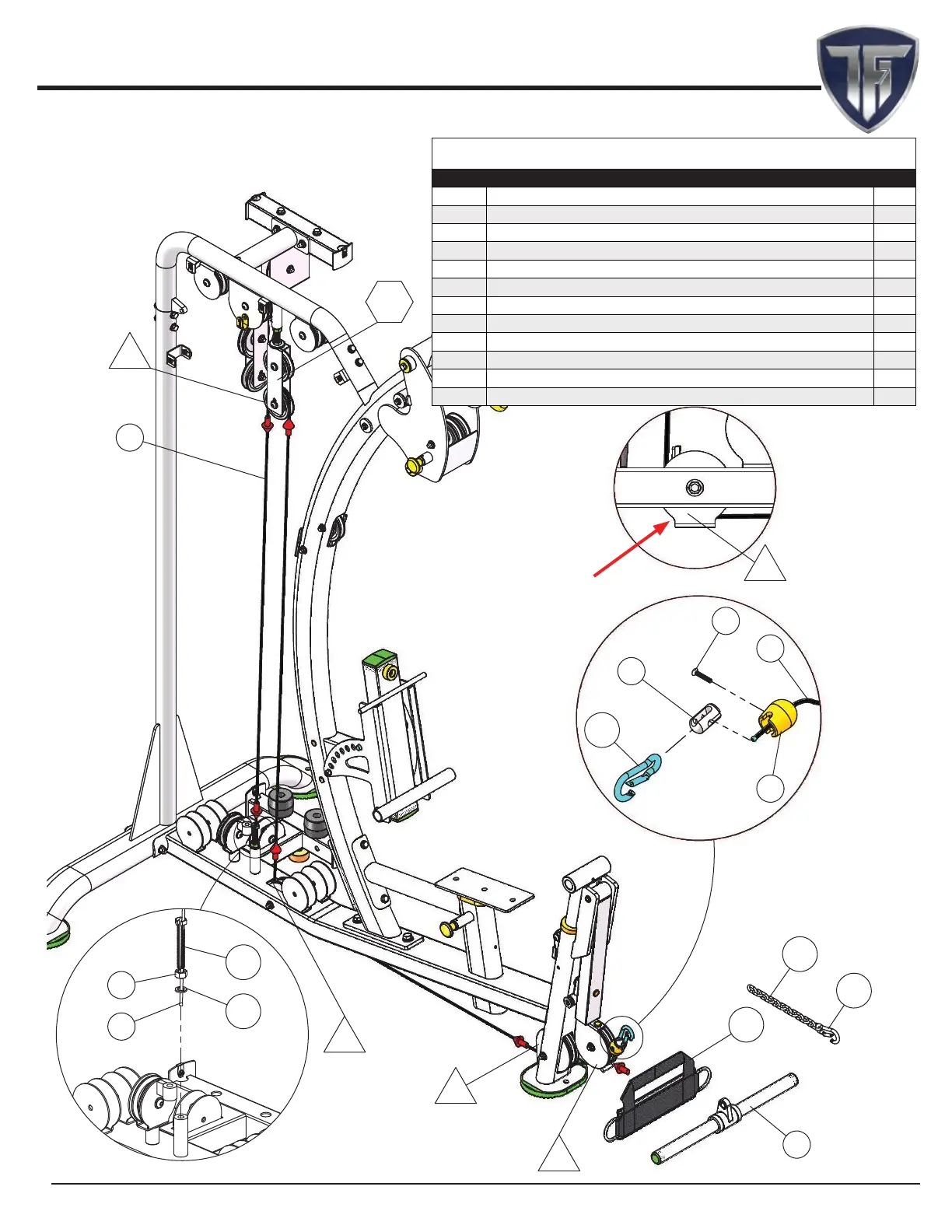

Step 10 Leg Extension/Curl Cable Routing
C
76
117
16
105
D
C
A
B
*151
104
112
60
113
16
56
16
37
86
104
Step 10 Assembly List
Item # Description Qty.
16 LEG EXT/CURL CABLE 1
37 7/8 RD X 1 5/8 LINK 3/16 CABLE 1
56 CABLE STOPPER SHELL 1 1/2 X 1 3/4 1
60 FINISHED HEX NUT Z/P 1/2-13 1
76 LOW ROW BAR 1 1/4 ALUMINUM 1
86 OVAL HEAD PHILLIPS MACHINE SCREW Z/P #10-32 X 1 1/8 1
104 SNAP LINK Z/P 8MM X 80MM 2
105 NYLON ANKLE STRAP 1
112 SPLIT HEX TAP BOLT Z/P 1/2 -13 X 3 1/2 1
113 SPLIT LOCK WASHER Z/P 1/2” 1
117 COIL CHAIN Z/P 3/16 X 12 1
*151 ADJUSTABLE DOUBLE PULLEY BRACKET 1
MAKE SURE CABLE IS
INSIDE THE BRACKET
NOTE:
1. SOME PARTS CUT OUT/NOT SHOWN FOR CLARITY.
