TFI AXT-225 - Step 10 Tension Cable Routing

AXT-225 Deluxe Home Gym www.tu stu tness.com
27

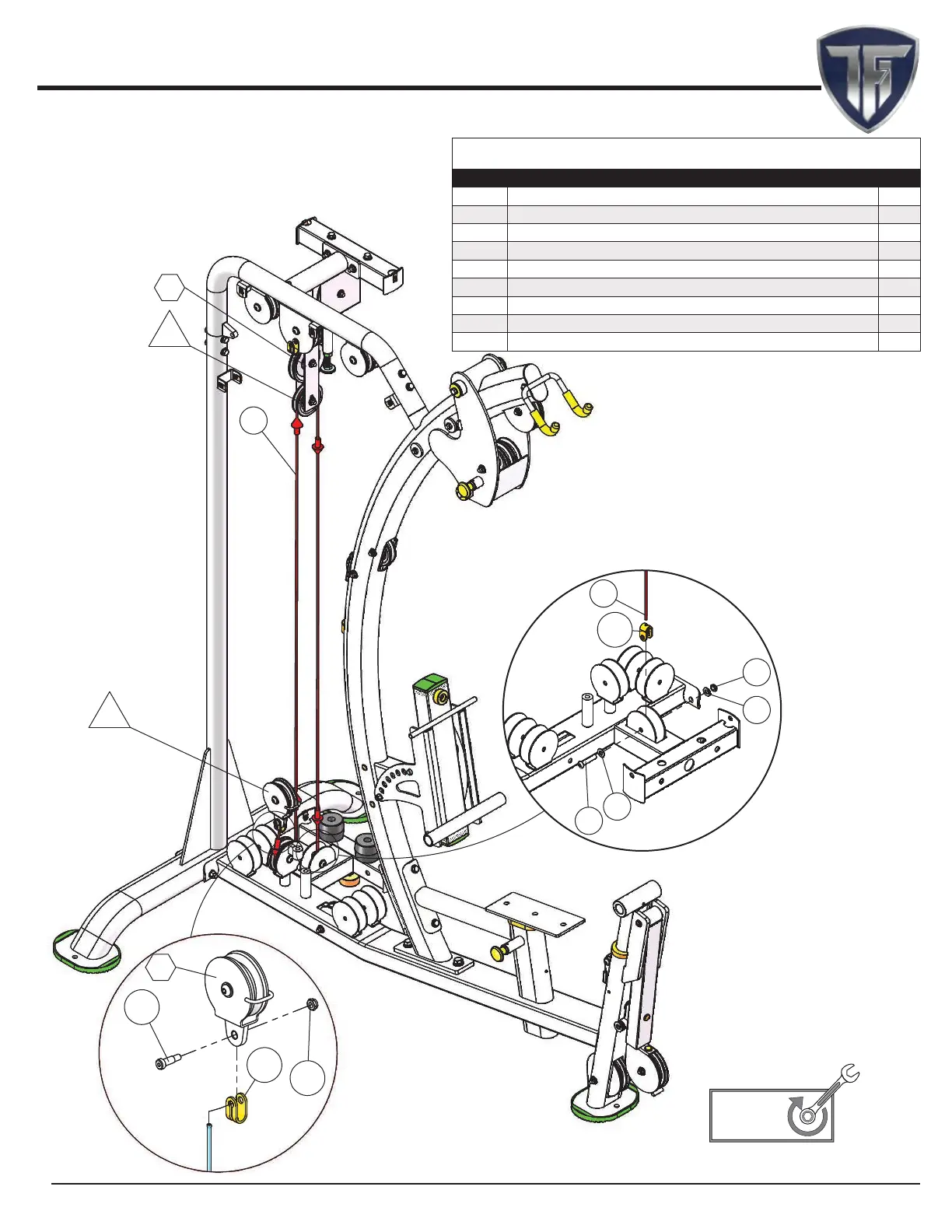

Step 11 Tensin Cable
144
100
*8
118
A
31
B
*3
NOTE:
1. SOME PARTS CUT OUT/NOT SHOWN FOR
CLARITY.
2. FOLLOW THE TRIANGLE BALLOONS TO
PROPERLY ROUTE THE CABLE.
100%
Fully Tighten
Fully Tighten
Wrench tighten all hardware in this step.
Step 11 Assembly List
Item # Description Qty.
*3 ADJUSTABLE DOUBLE PULLEY BRACKET 1
*8 FLOATING PULLEY BRACKET 1
31 TENSION CABLE 1
53 BUTTON HEAD SOCKET CAP SCREW Z/P 3/8-16 X 1 3/4 1
62 FLAT WASHER SAE Z/P 3/8” 2
83 NYLON INSERT THIN PATTERN LOCK NUT Z/P 3/8-16 1
100 SHOULDER BOLT Z/P 3/8 X 3/4 1
118 STRAP BRACKET 20 #SF20 STAINLESS STEEL 1
144 NYLON INSERT LOCK NUT Z/P 5/16-18 1
62
31
118
62
83
53
