TFT EAS 930A User Manual

www.SteamPoweredRadio.Com

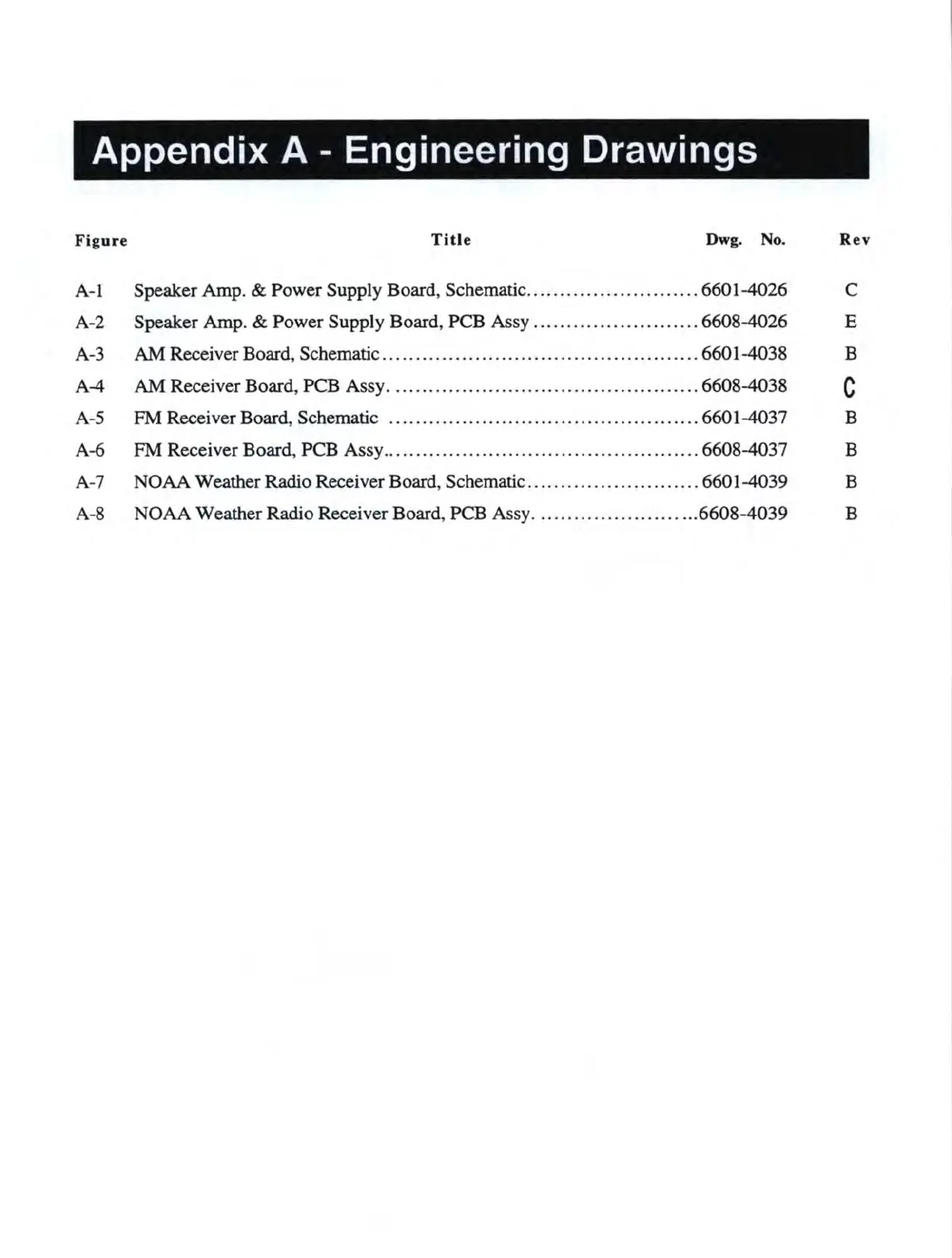

Appendix A - Engineering Drawings
Figure
Title Dwg. No. R ev
A-1 Speaker Amp. & Power Supply Board, Schematic .......................... 6601 --4026 C
A-2 Speaker Amp.
& Power Supply Board, PCB Assy ................... . ..... 6608--4026 E
A-3 AM Receiver Board, Schematic ................................................ 6601--4038 B
A--4 AM Receiver Board, PCB Assy ... . .................................... . ...... 6608--4038 C
A-5 FM Receiver Board, Schematic ............................................... 6601--4037 B
A-6 FM Receiver Board, PCB Assy
................................................ 6608--4037 B
A-7 NOAA Weather Radio Receiv er Board, Schematic .......................... 660 1--40 39 B
A-8 NOAA Weather Radio Receiver Board, PCB Assy
......................... 6608-4039 B

TFT EAS 930A Specifications

General

Brand	TFT
Model	EAS 930A
Category	Receiver
Language	English
