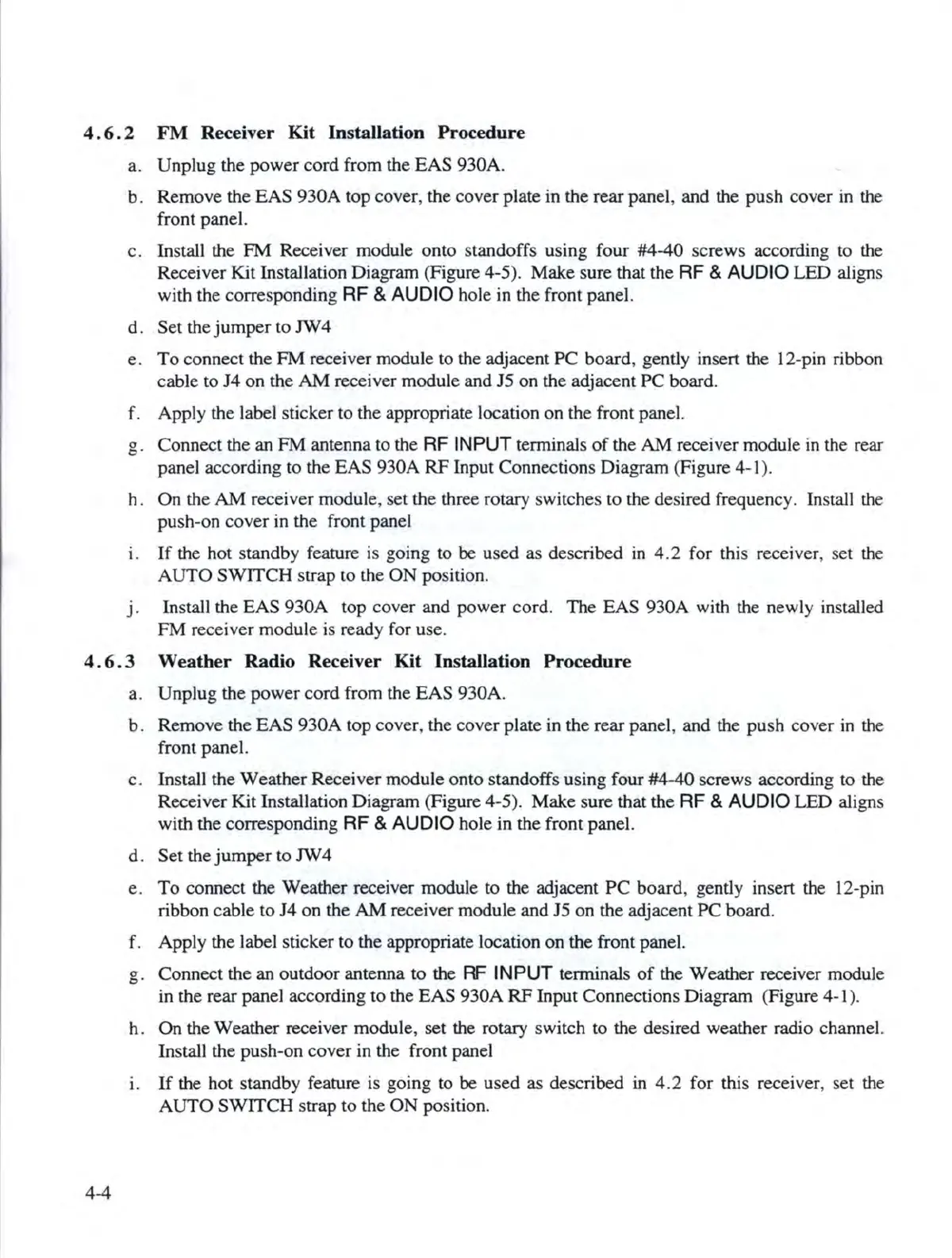

4 . 6 . 2
FM
Receiver Kit Installation Procedu
re
a. Unplug the power cord from the
EAS
930A.
b. Remove the EAS 930A top cover, the cover plate in the rear panel, and the push cover in the
front panel.
c.
Install the FM Receiver module onto standoffs using four #4-40 screws according to the
Receiver Kit Installation Diagram (Figure 4-5). Make sure that the
RF & AUDIO LED aligns
with the corresponding
RF & AUDIO hole in the front panel.
d. Set the jumper to
JW
4
e.
To
connect the
FM
receiver module to the adjacent PC board, gently insert the 12-pin ribbon
cable to
14
on the AM receiver module and
15
on the adjacent PC board.
f. Apply the label sticker to the appropriate location on the front panel.
g . Connect the an FM antenna to the
RF INPUT terminals
of
the AM receiver module in
th
e rear
panel according to the EAS 930A
RF
Input Connections Diagram (Figure
4-1
).
h. On the AM receiver module, s
et
the three rotary switches to the desired frequency. Install
th
e
push-on cover in the front panel
1.
If
the hot standby feature is going to
be
used as described in 4.2 for this receiver, set the
AUTO SWITCH strap to the ON
po
sition.
J. Install the EAS 930A top cover and power cord. The EAS 930A with the newly installed
FM
receiver module is ready for use.
4.
6.
3 W
ea
tber Radio R
ece
iver Kit I
ns
tallation Procedure
4-4
a. Unplug the power cord from the EAS 930A.
b. Remove the EAS 930A top cover, the cover plate in the rear panel, and the push cover in the
front panel.
c. Install the Weather Receiver module onto standoffs using four #4-40 screws according to the
Receiver Kit Installation Diagram (Figure 4-5). Make sure that the
RF & AUDIO LED aligns
with the corresponding
RF
& AUDIO hole in the front panel.
d. Set the jumper to
JW
4
e.
To
connect the Weather receiver module to the adjacent
PC
board, gently insert the 12-pin
ribbon cable to J4 on the AM receiver module and
15
on the adjacent PC board.
f. Apply
th
e label sticker to the appropriate location on the front panel.
g.
Connect the
an
outdoor antenna to the RF INPUT terminals
of
the Weather receiver module
in the rear panel according to the EAS 930A
RF
Input Connections Diagram (Figure 4-1 ).
h.
On
the Weather receiver module, set the rotary switch to the desired weather radio channel.
Install the push-
on
cover in the front panel
1.
If
the hot standby feature is going to
be
us
ed
as described in 4.2 for this receiver, set the
AUTO SWITCH strap
to
the ON position.
To Next Page
