4.3 QUICK CONNECT INLET AND TRAVEL RANGES
The Tornado Monitor is available with various inlet fittings. These
Inlet Adapters must be oriented upon installation so the Tornado
will point in the desired direction. Travel ranges relative to the
Straight Ahead Reference Mark are shown in Figure 4.3B. Figure
4.4 gives the location of the “Stop Bolts”, which are used to limit
the travel.
A rotational lock is included on quick connect couplings on RC
models. The locking pin also holds the coupling up and out of the
way while orienting the monitor to engage the internal ear into the
slot on the adapter. Hold the pin out, push the coupling up and
release the pin before installing monitor on the adapter. Once the
monitor is properly aligned on the adapter, hold the pin out while
sliding the coupling down to the adapter. Rotate the coupling until
it is tight. The coupling may become sufficiently tight before
reaching the next detent position. It is not necessary to over
tighten the coupling if the pull pin is between detent positions. Do
not use the pull pin as a lever to tighten or loosen the coupling.

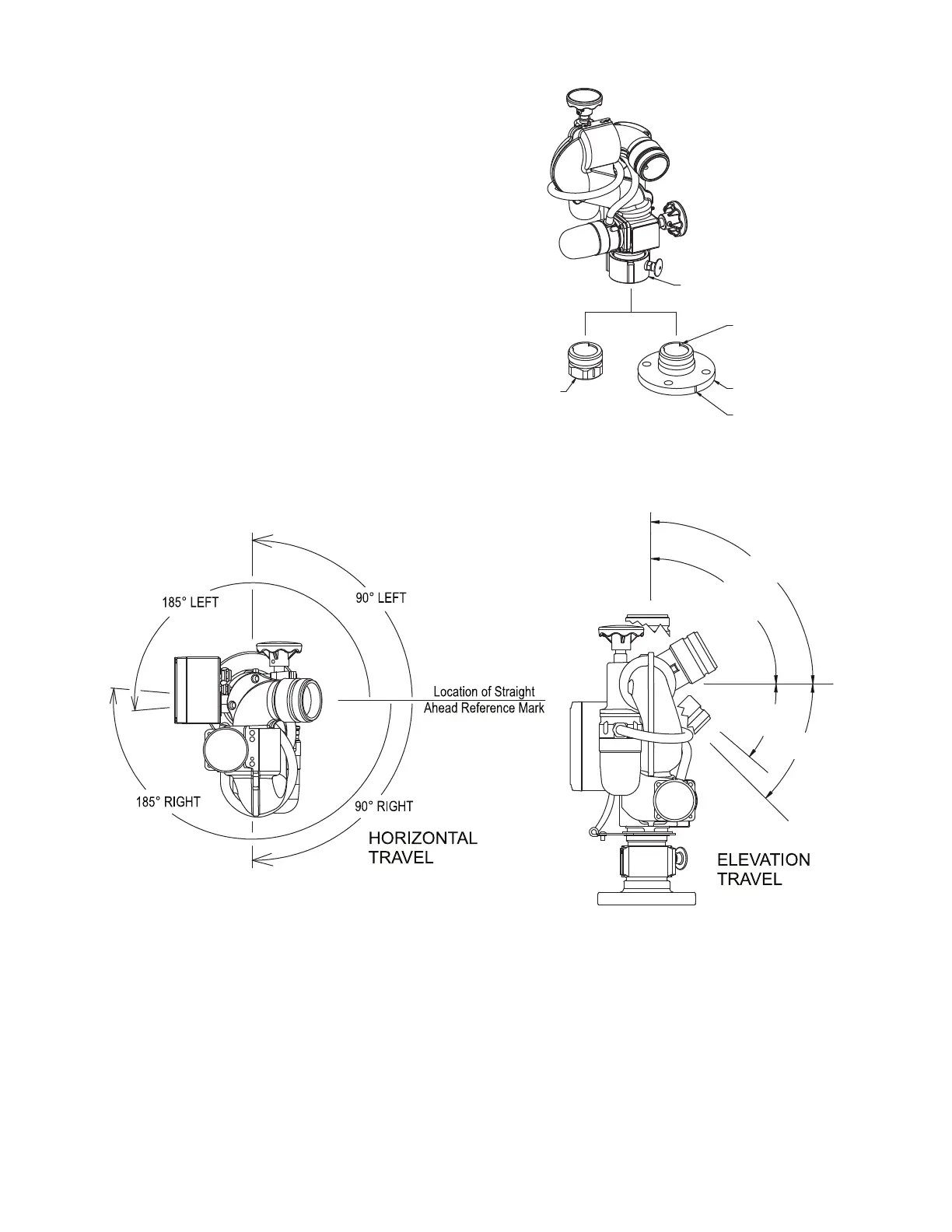

Figure 4.3B
2 1/2" NH Coupling
ON TORNADO INLET WITH LOCK
(TILLER VERSION DOES NOT HAVE LOCK)
INTERNAL EAR ON TORNADO RC
ENGAGES THIS SLOT ON THE ADAPTER
TO GIVE ROTATIONAL ALIGNMENT.
STRAIGHT AHEAD REFERENCE MARK
IMPORTANT: INSTALL SO STRAIGHT
AHEAD REFERENCE MARK IS FACING
DESIRED DIRECTION.
SEE FIGURE 4.2B.
FLANGED
INLET ADAPTER
FEMALE THREADED
INLET ADAPTER
Figure 4.3A
90° WITH
STOP BOLT
39° WITH
STOP BOLT
45° BELOW
90° ABOVE
