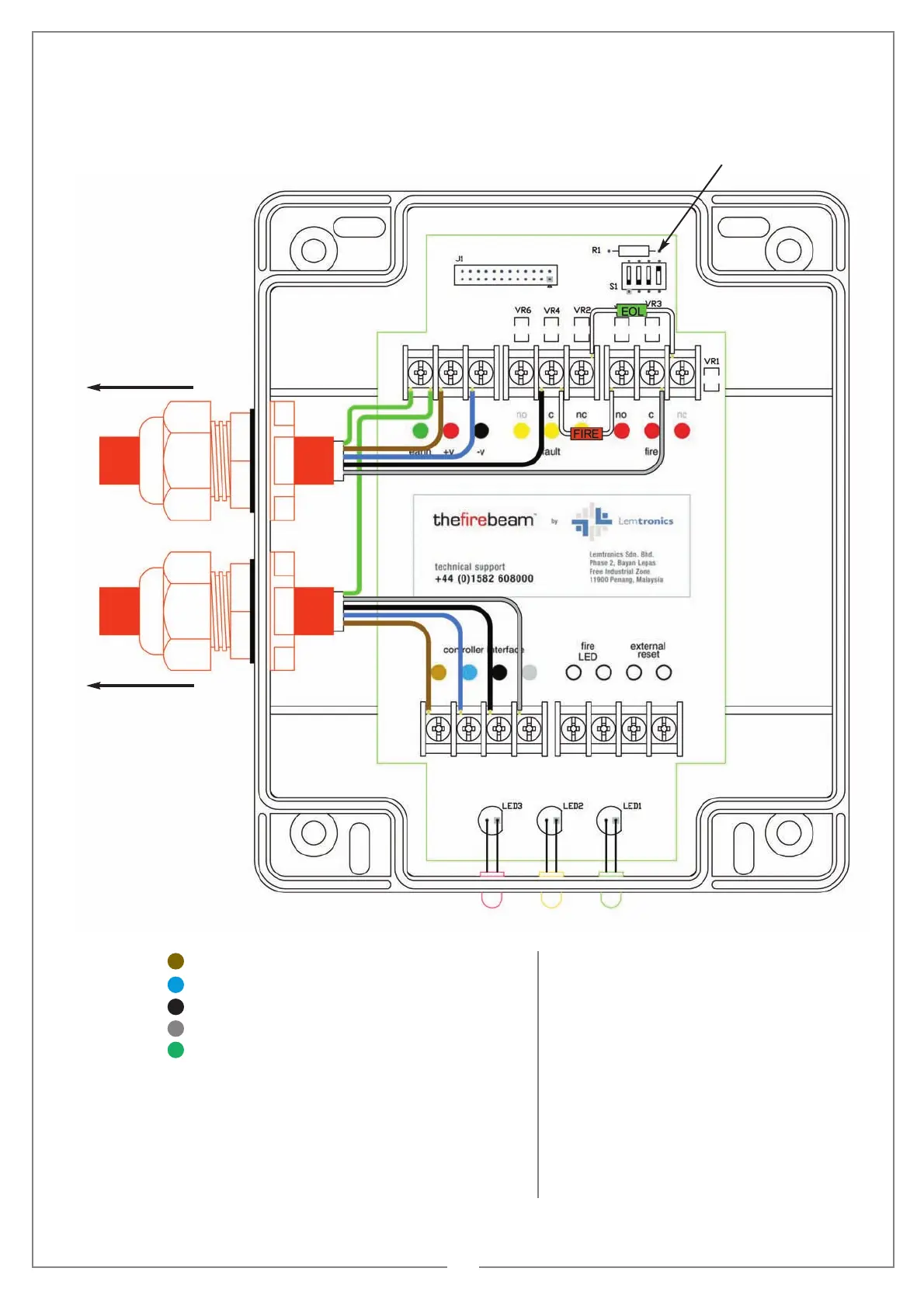

The Fire Beam firebeam - Wiring Configuration; Generic Wiring Diagram

generic wiring configuration
to fire panel
to controller
switch 4 on all rest off
BROWN + supply (10.2-30 Vdc)
BLUE - supply (return)
BLACK zone +
GREY zone -
GREEN earth (screen)
Supply Voltage 12Vdc to 24 Vdc +25% -15%
Quiescent Current 3mA
Alarm Current 3mA
Aligning Current 3mA
Fault / Fire relay contact rating 2A @ 30Vdc
FIRE and EOL
components as specified by
the panel manufacturer
5
