The Singing Machine SML505 - Control Locations; Front View Controls; Rear View Connections

I

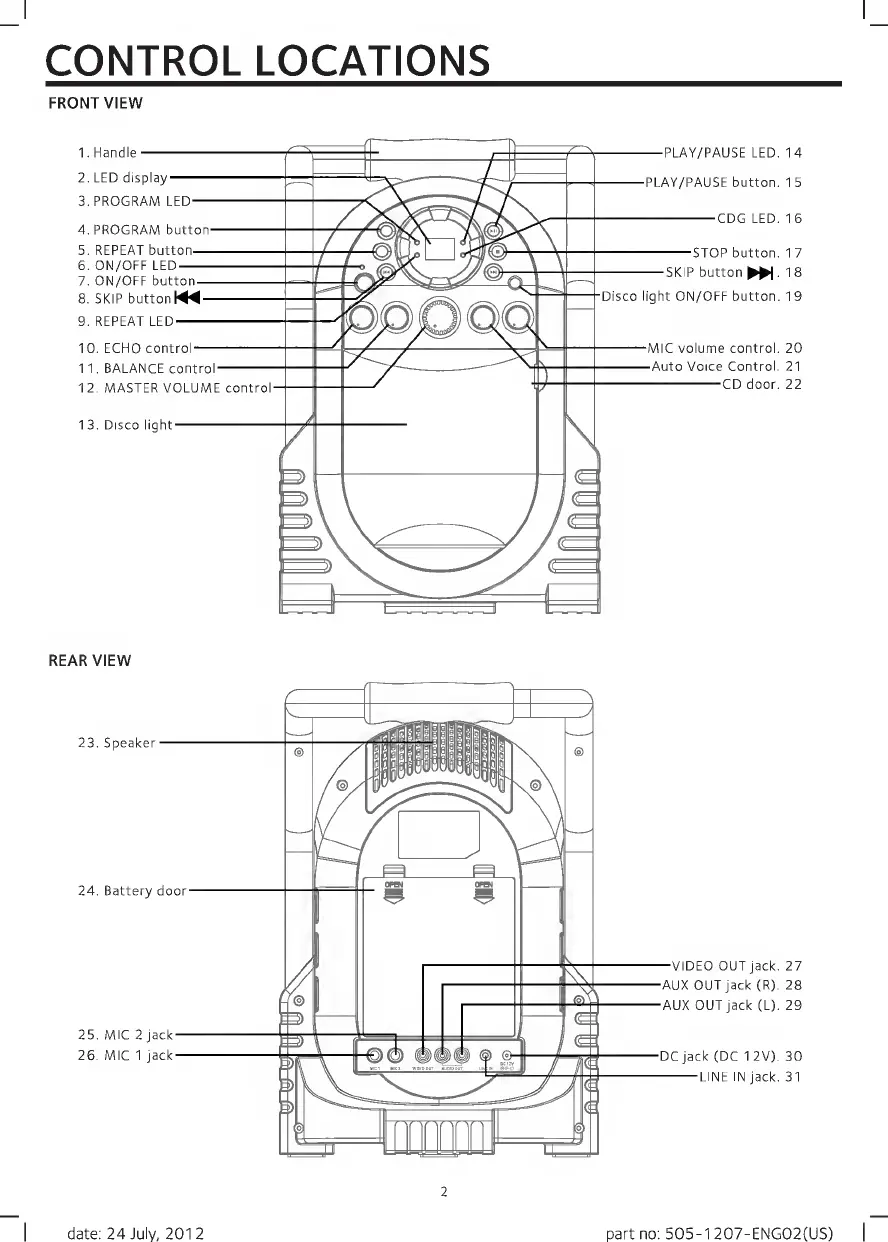

CONTROL LOCATIONS
FRONT VIEW
1. Handle-
2. LED display-
3. PROGRAM LED-
4. PROGRAM button-
5. REPEAT button-
6. ON/OFF LED-
7. ON/OFF button-
8. SKIP button W4-
9. REPEAT LED-
10. ECHO control-
11. BALANCE control-
1 2. MASTER VOLUME control
13. Disco light-
REARVIEW
PLAY/PAUSE LED. 14
PLAY/PAUSE button. 1 5
CDG LED. 1 6
STOP button. 1 7
SKIP button 18
Disco light ON/OFF button. 19
MIC volume control. 20
Auto Voice Control. 21
CD door. 22
2
date: 24 July, 2012 part no: 505-1 207-ENG02(US)
