Theben SELEKTA top2 Series User Manual

Page | 77
 No option to load the program in C1 or C2 either.
o OBELISK with SELEKTA 172 top2 program  inserted and selected in SELEKTA 170
top2: COPY TIME SWITCH  OBELISK (overwrite)  possible 

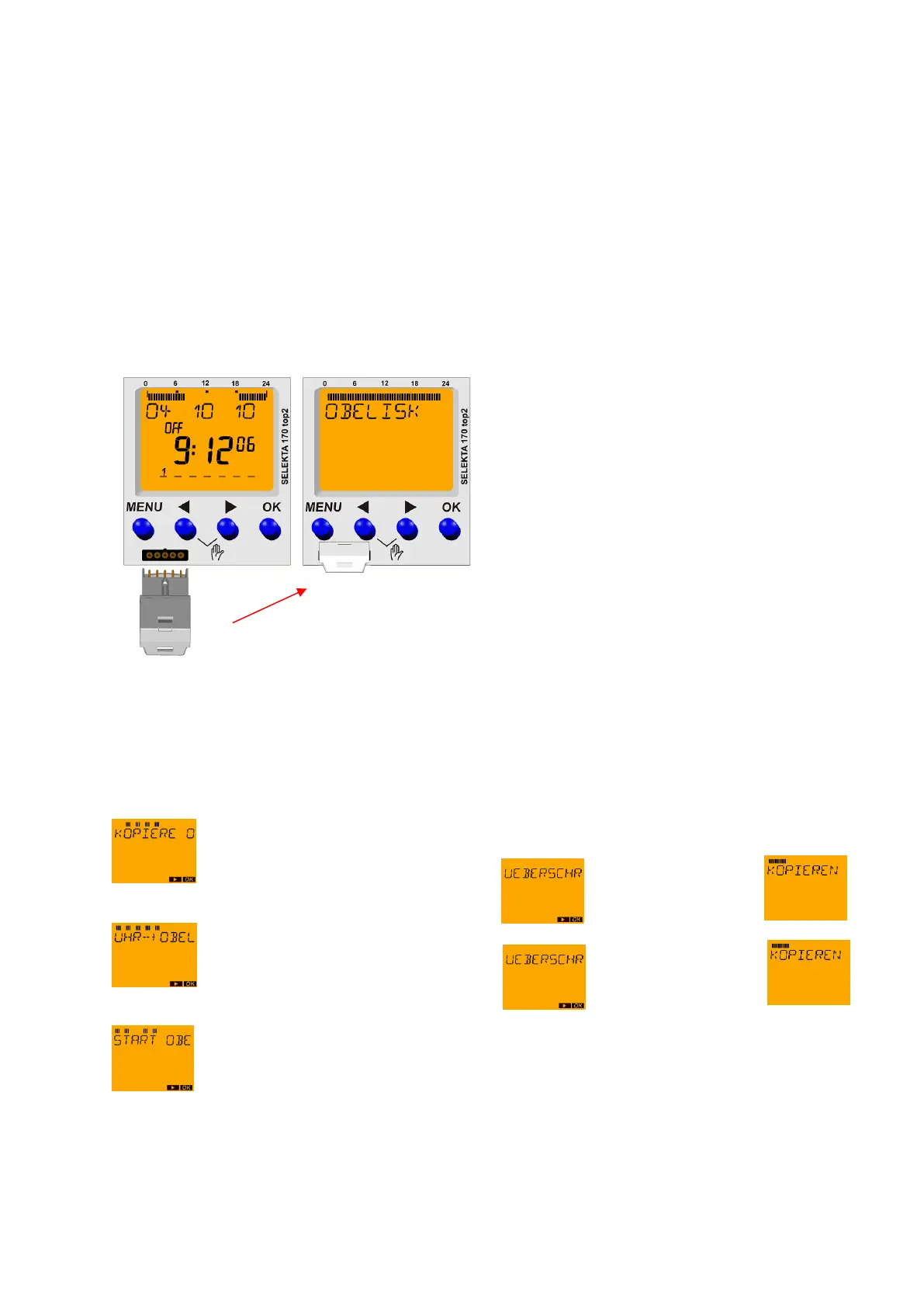

12.3. OBELISK menu
If an OBELISK top2 memory card is inserted in auto mode, the OBELISK data is verified (this lasts
for a few seconds and is shown by a progress bar):
o If the OBELISK top2 does not match the time switch type, OBELISK ERROR is
shown. Only the copying process TIME SWITCH  OBELISK is still possible. When
selecting other menu items, OBELISK ERROR is shown.
o If the OBELISK top2 and time switch do match, the OBELISK menu is shown.
COPY OBELISK  TIME SWITCH
continue with button ► or execute with OK
COPY TIME SWITCH  OBELISK
continue with button ► or execute with OK
START OBELISK PROGRAM (for a description, see 13.4)
continue with button ►

Theben SELEKTA top2 Series Specifications

General

Power reserve	10 years (lithium battery)
Display	LCD
Protection class	IP20
Operating Voltage	230 V AC
Frequency	50-60 Hz
Mounting Type	DIN rail
Program Type	Weekly program
Shortest Switching Time	1 minute
Channels	1
Switching capacity	16 A / 250 V AC
Operating temperature	+55°C
Contact Type	Changeover contact
Power Consumption	Approximately 1.5 W
Accuracy	±1 second per day
Ambient Temperature	+55°C
Memory Locations	8
Battery Reserve	10 years
Switching capacity (inductive load)	250 V AC
Storage temperature	+70°C
