Thecus N3200XXX Series User Manual

11
N3200XXX:

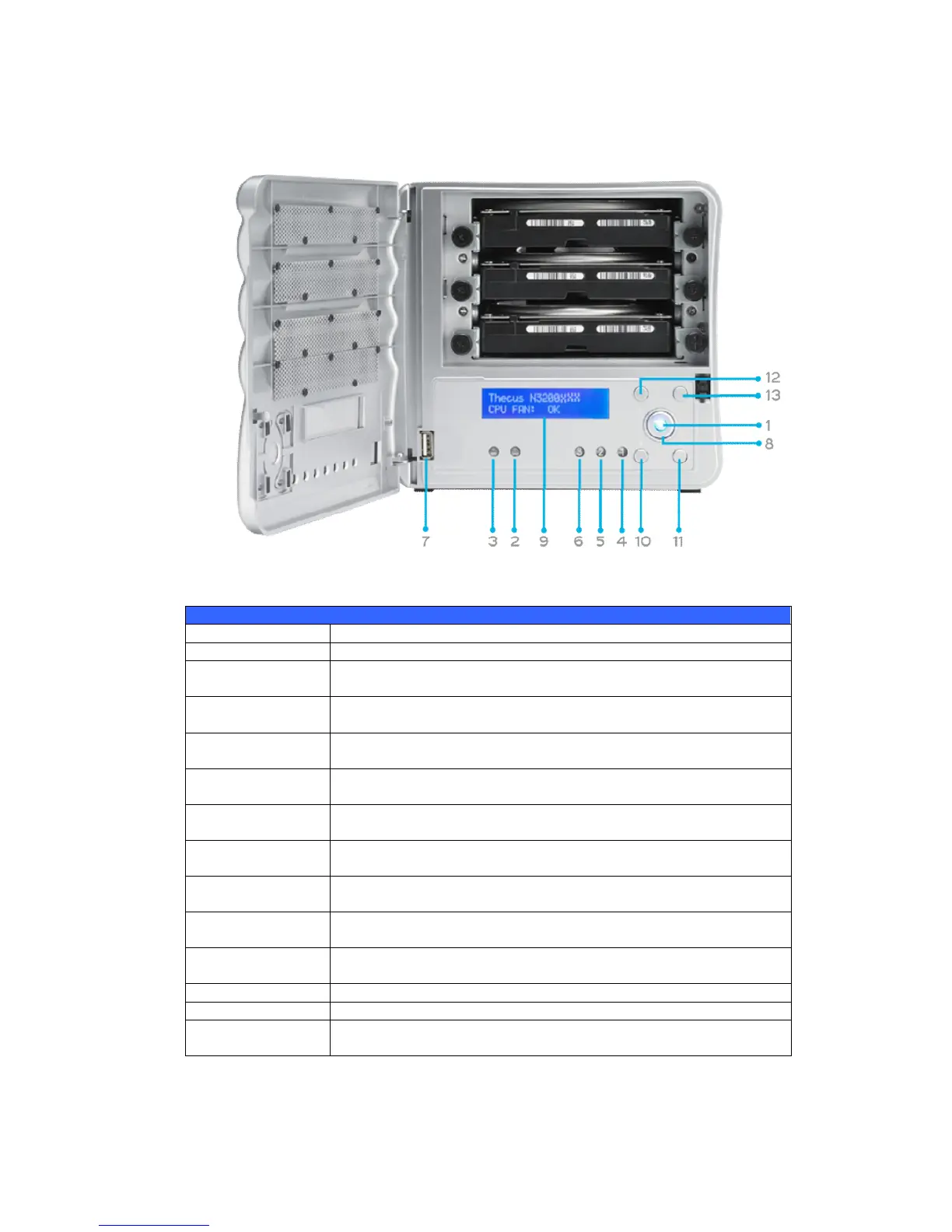

The Thecus N3200XXX’s front panel has the device’s controls, indicators, and hard
disk trays:
Front Panel
Item Description
1. Power LED  Solid blue: System is powered on
2. WAN/LAN1 LED  Solid green: Network link
 Blinking orange: Network activity
3. LAN2 LED  Solid green: Network link
 Blinking orange: Network activity
4. HDD 1 LED  Solid red: HDD failed
 Blinking orange: HDD activity
5. HDD 2 LED  Solid red: HDD failed
 Blinking orange: HDD activity
6. HDD 3 LED  Solid red: HDD failed
 Blinking orange: HDD activity
7. USB Port  USB 2.0 port for compatible USB devices, such as digital cameras,
USB disks, and USB printers.
8. Power Button  Powers the N3200XXX on/off.
 Solid blue: Device is powered on
9. LCD Display  Displays current system status and messages (Update time: 60
seconds).
10. Down Button
▼
 Push to scroll DOWN when using the LCD display.
11. Up Button ▲  Push to scroll UP when using the LCD display.
12. Enter Button   Push to confirm information entered into the LCD display.
13. Escape Button
ESC
 Push to leave the current LCD menu.

Thecus N3200XXX Series Specifications

General

Brand	Thecus
Model	N3200XXX Series
Category	Network Storage Server
Language	English
