N0503:

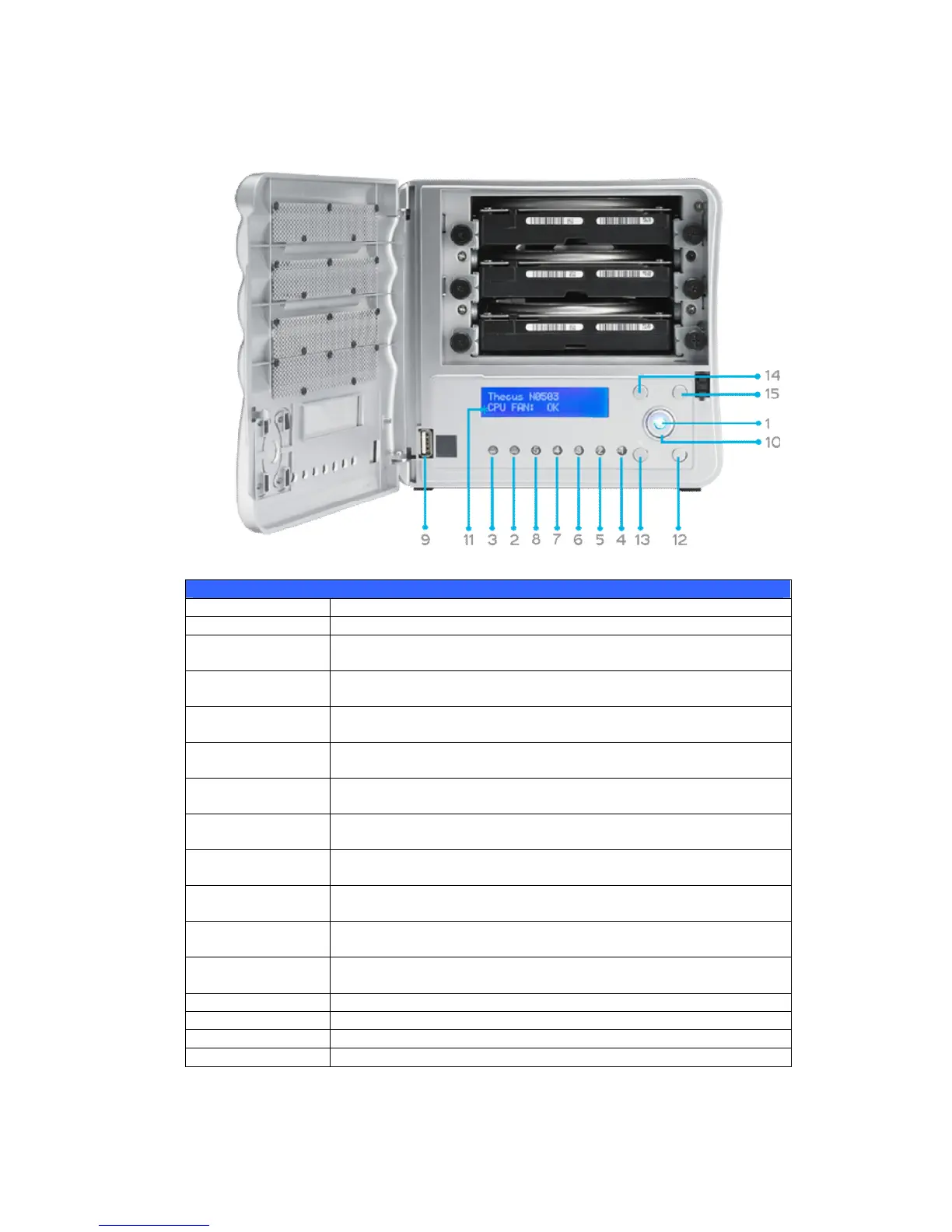

The Thecus N0503’s front panel has the device’s controls, indicators, and hard disk
trays:
Front Panel
Item Description
Power LED Solid blue: System is powered on
WAN/LAN1 LED
Solid green: Network link
Blinking orange: Network activity
LAN2 LED
Solid green: Network link
Blinking orange: Network activity
HDD 1 LED Solid red: HDD failed
Blinking orange: HDD activity
HDD 2 LED Solid red: HDD failed
Blinking orange: HDD activity
HDD 3 LED Solid red: HDD failed
Blinking orange: HDD activity
HDD 4 LED Solid red: HDD failed
Blinking orange: HDD activity
HDD 5 LED Solid red: HDD failed
Blinking orange: HDD activity
USB Port
USB 2.0 port for compatible USB devices, such as digital cameras,
USB disks, and USB printers.
Power Button Powers the N0503 on/off.
Solid blue: Device is powered on
LCD Display Displays current system status and messages (Update time: 60
seconds).
Down Button Push to scroll DOWN when using the LCD display.
Up Button Push to scroll UP when using the LCD display.
Enter Button Push to confirm information entered into the LCD display.
Escape Button ESC
Push to leave the current LCD menu.
