THERMACUT EX-TRAFIRE 100SD - Hand Torch Setup Guide

EX-TRAFIRE
®
100SD
Operator Manual, Revision T-52-14

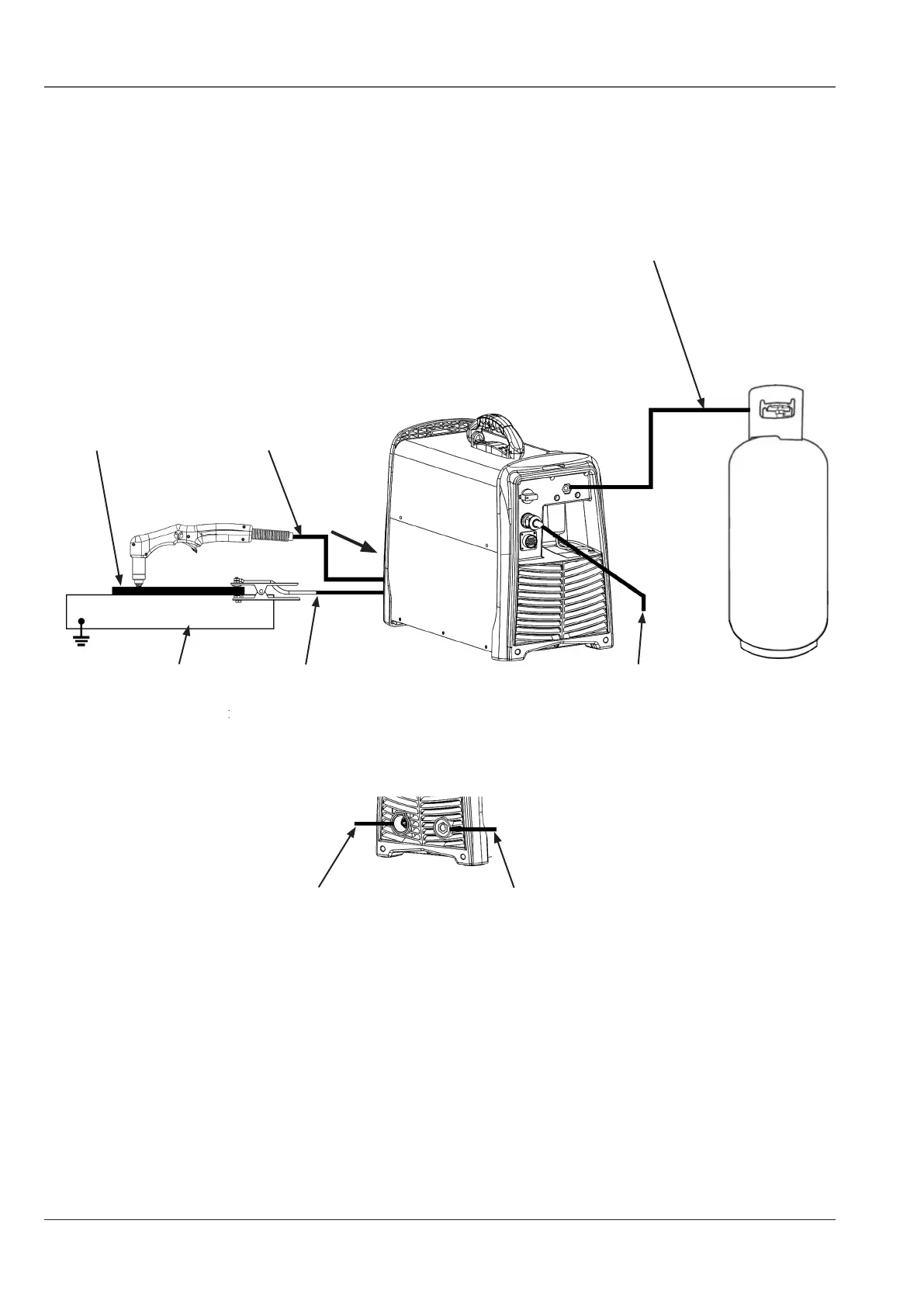

Hand torch setup
Ground Work lead Power lead Gas supply
Torch lead
P
view P
Torch lead Work lead
Workpiece
Work table
Gas hose (min� Ø8 mm)
min� 270 LPM
min� 6 bar
max� 10 bar
