EX-TRAFIRE
®
100SD
Operator Manual, Revision T-54-36

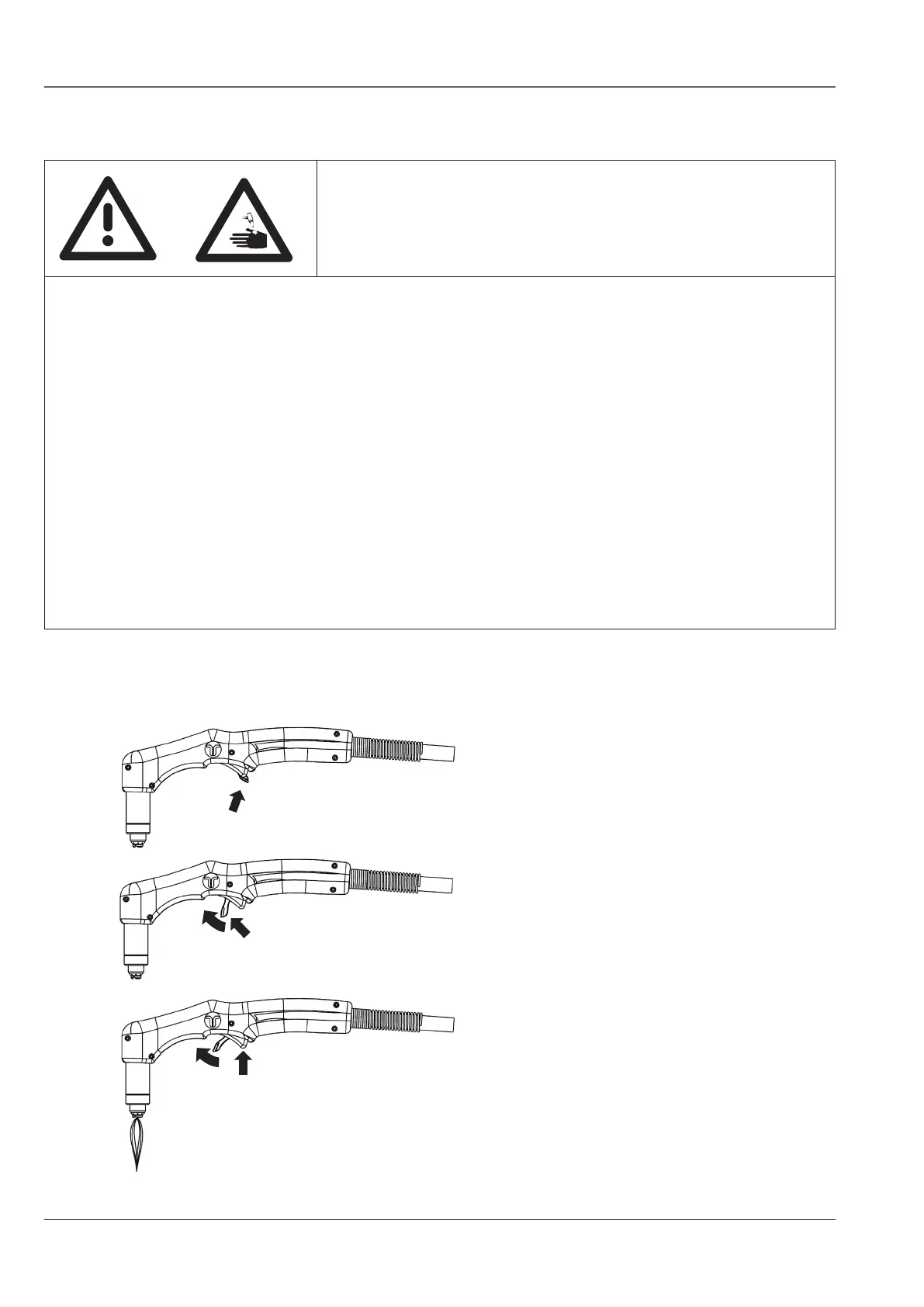

Operating the hand torch
Operating the torch safety trigger
WARNING
Plasma arc is generated immediately
when the torch trigger is depressed�
The plasma arc will cut quickly through gloves and skin�
Make sure the power supply is switched off before changing consumables�
• Keep away from the torch tip�
• Do not hold the piece that is to be cut and keep your hands away from the cutting path�
• Never point the torch toward yourself or toward others�
• Never use with the pendant control switch�
Important:
In case of operation of the power supply equipped with 23 m long hand torch you have to increase
dynamic gas pressure to value 6�5 bar� To refire the arc during post-flow it’s necessary to press
the trigger button once to stop the flow of the air or wait until the post-flow stops automatically�
Then wait approx� 2 s until the air escapes from the torch� Afterwards the pilot arc can be initiated
by pressing the trigger button again�
1�
2�
3�
4� Release the torch trigger to stop cutting�
Press the torch trigger for ignition of the arc�
Release the trigger guard�
Safety trigger guard position�
