THERMACUT EX-TRAFIRE 100SD - Mains Power Lead Setup

EX-TRAFIRE
®
100SD
Operator Manual, Revision T-53-20
Mains power lead
EX-TRAFIRE
®
100SD is supplied with a 3 meter length of 4 core 4 mm
2
flexo cable without plug�
Use of a mains power lead extension is at the discretion of the user� The extension of the mains
power lead shall comply with local and national codes of practice and should be installed by a
certified electrician� See the length requirements listed below�
Recommended mains power lead extension depending on length (mm
2
)
< 3 m 3 - 7�5 m 7�5 - 15 m 15 - 30 m 30 - 45 m
Model CE Phase
mm
2
mm
2
mm
2
mm
2
mm
2
400 VAC±15% 3 6 6 10 10 16
Note: The system was tested with a 3 meter mains power lead for compliance with EMC standards�
Three-phases mains power lead
To operate the EX-TRAFIRE
®
100SD, use a plug that complies with national and local codes of
practice� A certified electrician or electrotechnically competent person should connect the mains
power lead to the plug�
Installation of three-phases mains power lead

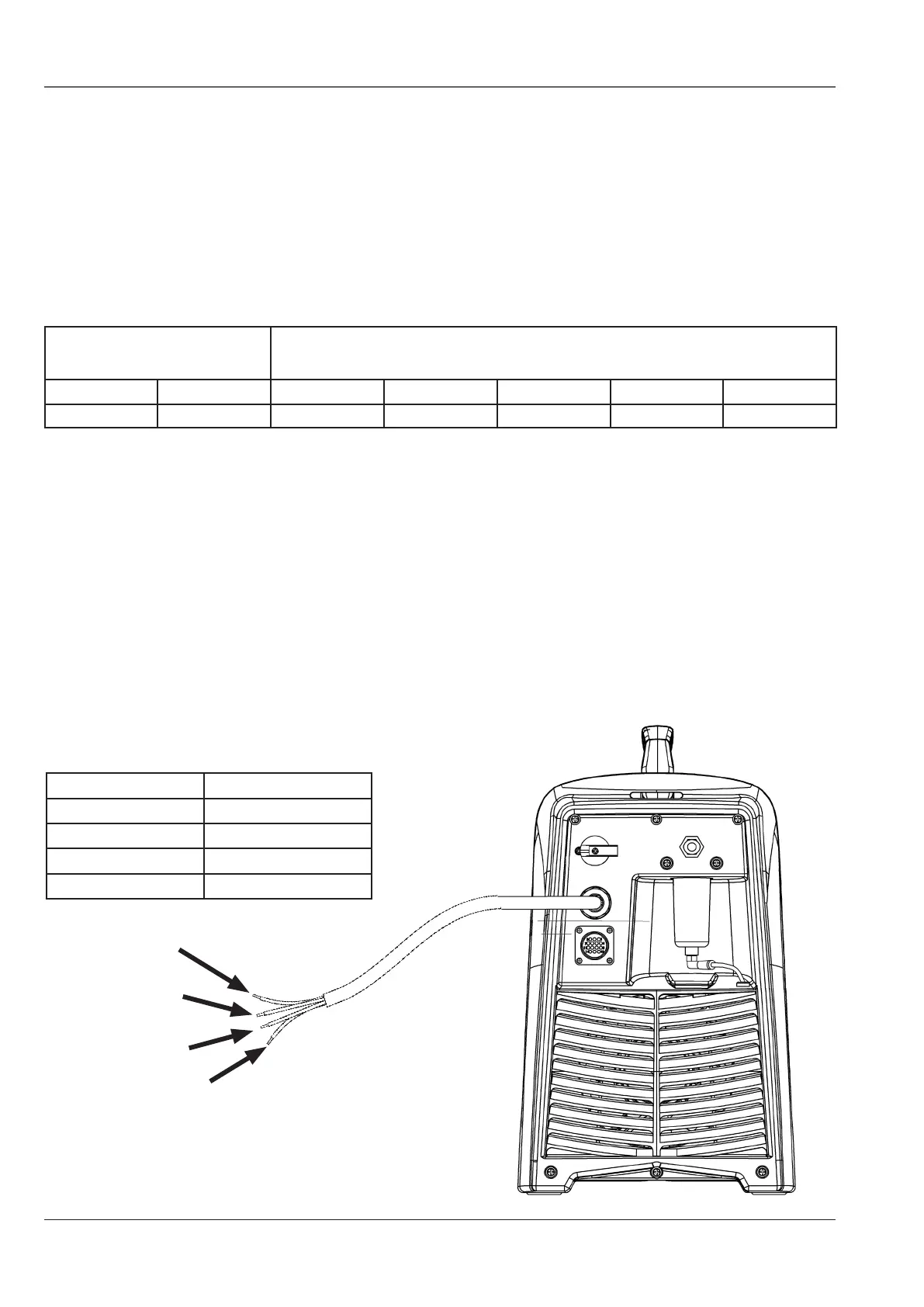

Strip and prepare the mains power lead as show below:
Green-Yellow
Black
Grey
Brown
UNIT CE
L1 Black (U)
L2 Brown (V)
L3 Grey (W)
Earth Green-Yellow
