EX-TRAFIRE
®
100SD
Operator Manual, Revision T-53-30

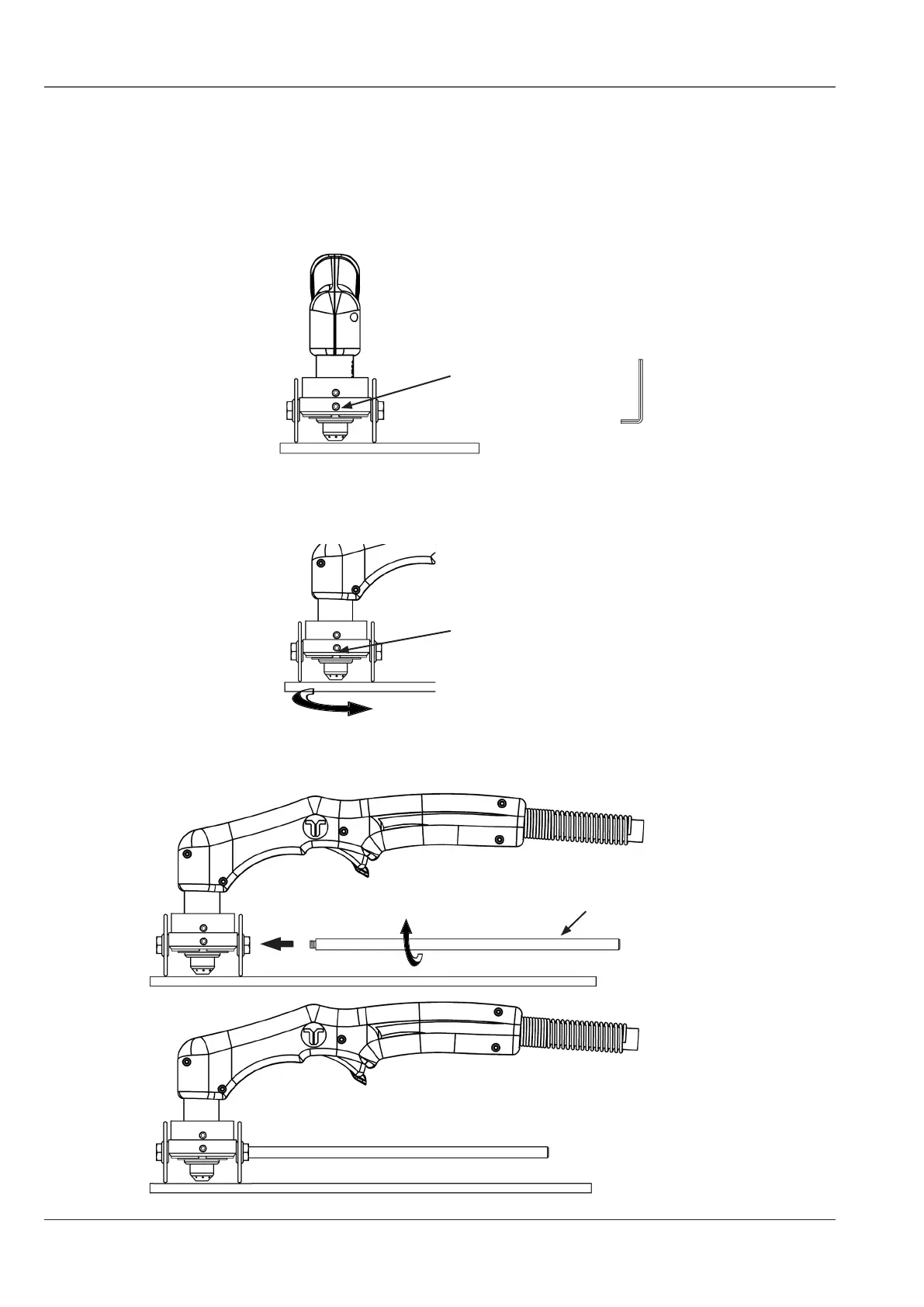

5� The hand torch clamped in the cutting guide can be used alone or with a radius bar�
If you don’t want use the radius bar, lock the cutting guide in a fixed position by using
of the screw with hexagonal head so that the wheels of the cutting guide point in the same
direction as the torch handle - see picture below�
Now the torch with the cutting guide is ready to cut�
Tighten the screw with
hexagonal head with
the hexagonal wrench�
6� If you want use the radius bar, make sure the screw with hexagonal head isn’t tightened
so that the cutting guide can rotate freely�
Screw with
hexagonal head
7� Screw in the radius bar* into the threaded hole in the cutting guide�
* Lengths of bars are 250 mm or 400 mm�
Radius bar
