Thermal Arc 175 SE ARC MASTER - Arc Welding Practice; Welding Position

ARC MASTER 175 SE OPERATION
Manual # 0-5054 4-4 March 20, 2008
4.10 Arc Welding Practice
The techniques used for arc welding are almost identical regardless of what types of metals are being joined.
Naturally enough, different types of electrodes would be used for different metals as described in the preceding
section.
4.11 Welding Position
The electrodes dealt with in this publication can be used in most positions, i.e. they are suitable for welding in
flat, horizontal, vertical and overhead positions. Numerous applications call for welds to be made in positions

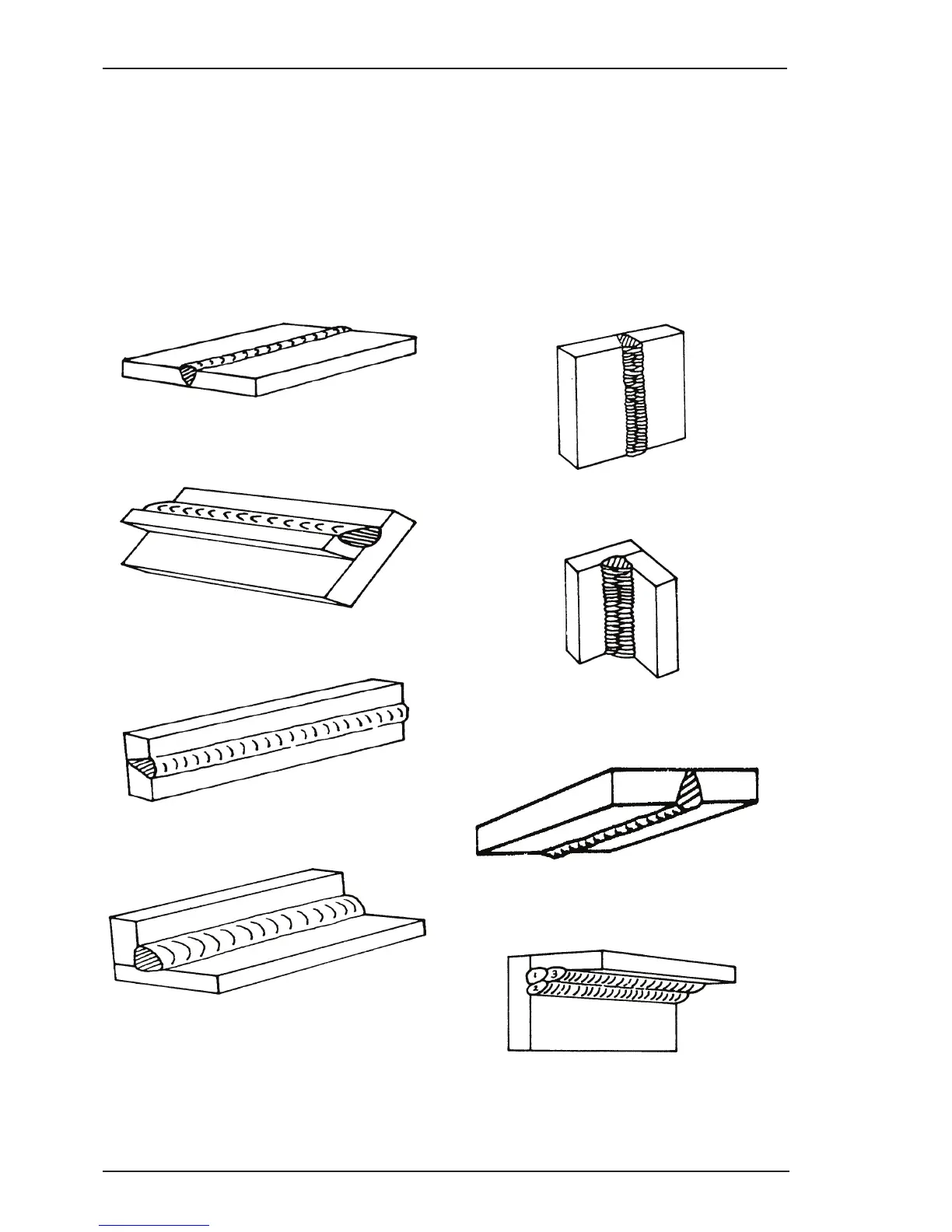

intermediate between these. Some of the common types of welds are shown in Figures 4-2 through 4-9.
Art # A-07687
Figure 4-2: Flat position, down hand butt weld
Art # A-07688
Figure 4-3: Flat position, gravity fillet weld
Art # A-07689
Figure 4-4: Horizontal position, butt weld
Art # A-07690
Figure 4-5: Horizontal - Vertical (HV) position
Art A-07691
Figure 4-6: Vertical position, butt weld
Art # A-07692
Art# A-07693
Art # A-07694
Figure 4-7: Vertical position, fillet weld
Figure 4-8: Overhead position, butt weld
Figure 4-9: Overhead position, fillet weld
