INSTALLATION

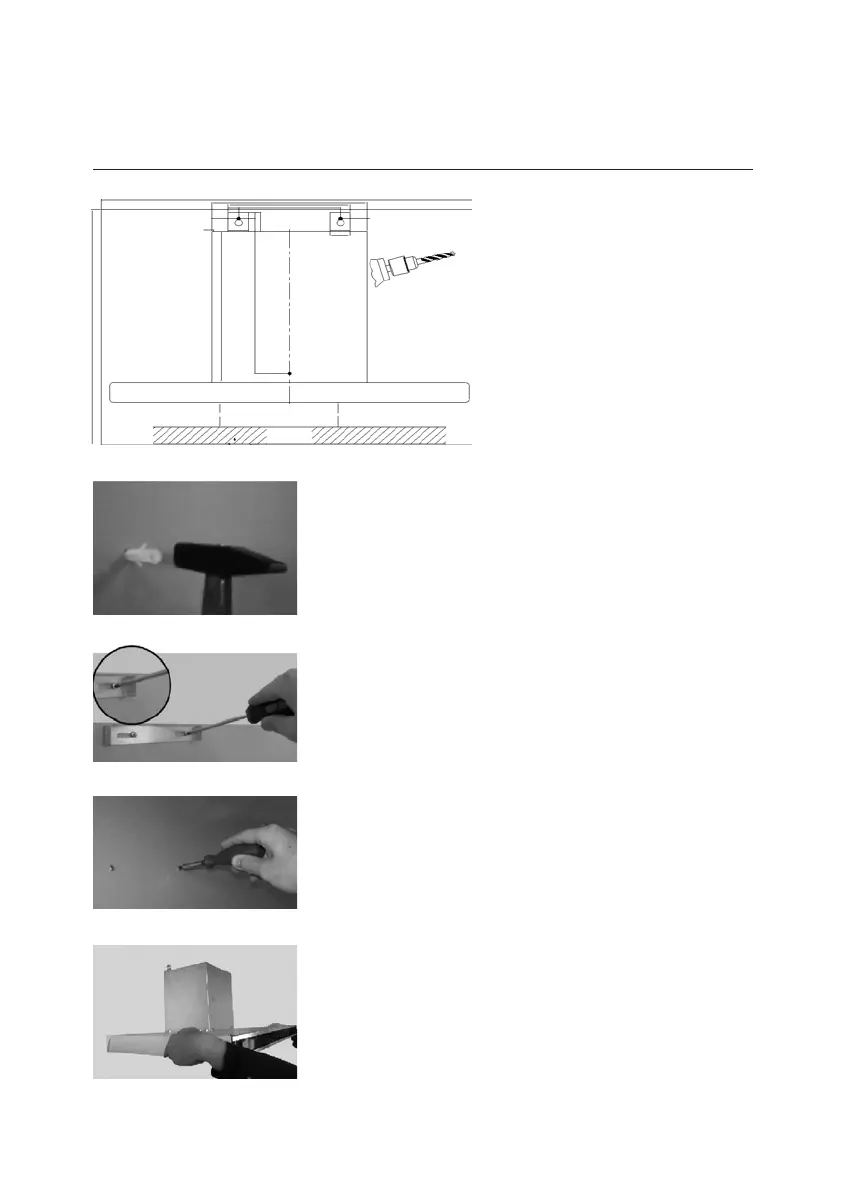

DRILLING OF HANGING HOLES
Stick montage template to the wall that
chimney hood will be installed. Drill
holes on A,B,C points by using 8mm
drill bit.. Drill 6mm holes in order to
install chimney montage plate, con-
sidering min. and max. height of the
product as reference. Figure 2
Figure 2
DRIVING WALL PLUGS IN
Drive 8mm wall plugs in to A,B,C holes. Drive 2 x 6mm wall plugs
to 6mm holes for chimney montage plate. Photo 4
Screw montage plate to 6mm wall plugs by using 3,9 x 22 screws.
Photo 5
SCREWING OF HANGING SCREWS
Screw hanging screws to 8mm wall plugs (A,B) by using 5,5 x 60
screws.There should be 5 mm distance between wall and screw
top. Photo 6
INSTALLATION OF CHIMNEY HOOD
Lift the chimney hood and connect L formed hanging plates
which are on motor box to the wall on A and B points. Photo 7
A B
A, B, C = Ø8
C
GAS
min. 750 - max. 800 mm
ELECTRO
min. 650 - max. 750 mm
