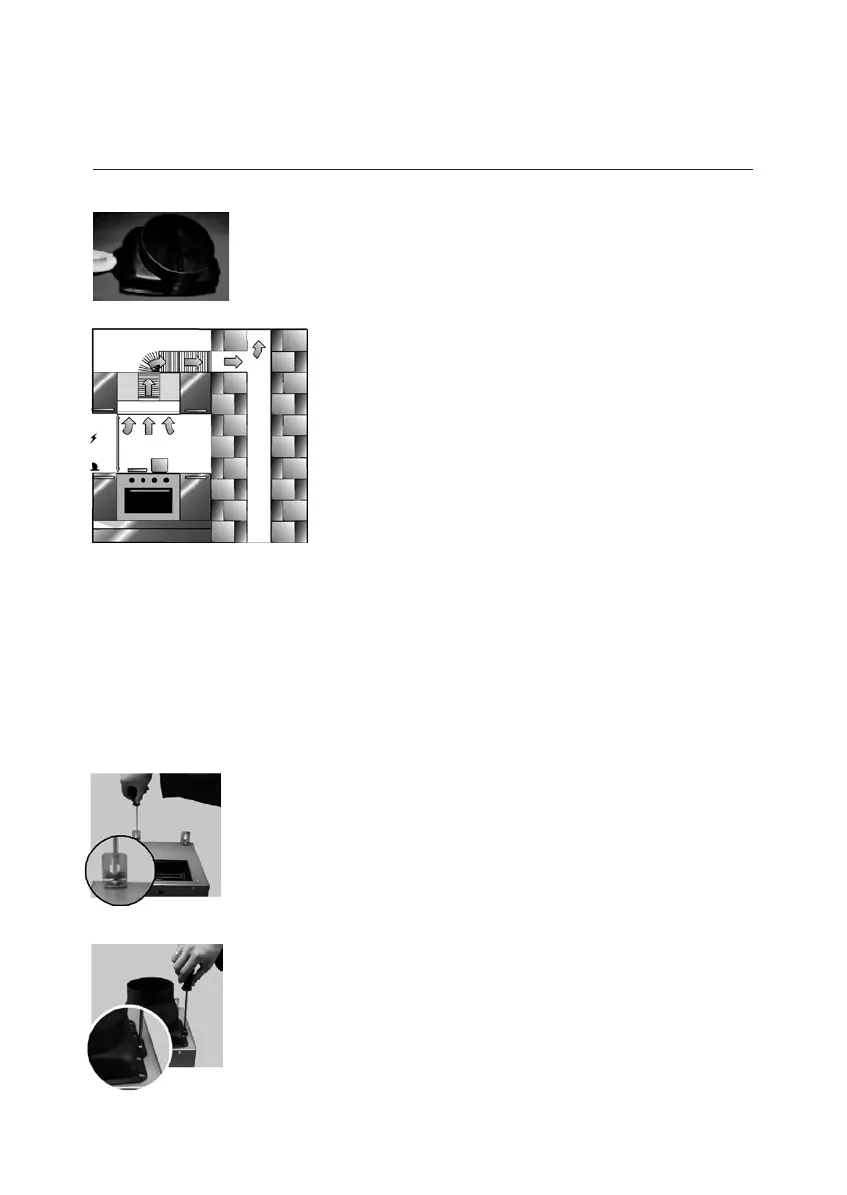

INSTALLATION
STANDARD ACCESSORIES
Plastic chimney (Photo 1) : Plastic chimney is applied to chimney hood air
outlet.
PLACE OF THE PRODUCT
After installation of your product, distance between range
hood and electrical hob should be at least 65 cm and gas
hobs at least 75cm. Fig. 1
Figure 1
INSTALLATION, TAKING OFF YOUR PRODUCT FROM ITS PACKAGE
• Check if there is any deformation on your product.
• Transportation damages and failures should immediately be reported to the transportation
responsible.
• If you notice any damage please report to the seller.
• Do not allow children to play with packing material!!!
INSTALLATION
Installation of hanging bars to chimney hood: There are 2pcs. L formed
hanging plates for installation of product to wall. These are given with screw
set. Screw these plates with M5 x 40 thumbscrews to M5 turnscrews on motor
cabinet before installing product. Photo 2
Installation of plastic chimney: Screw plastic chimney with 3,5 x 9,5 screws
to the top conncetion plate of motor box. Photo 3
1
Min. 65 cm
Min. 75 cm
2
3
