MINI ULTRA ELECTRIC BOILERS Installation and operating manual (Revision: May 2015)
12
Section 4: ADJUSTMENTS OF THE CONTROL MODULE
4.1 INTRODUCTION
The MINI Ultra boiler is mainly designed to be
installed on closed circuit applications where the
water of the heating system flows directly from the
boiler to the heating distribution system (Standard
parallel Piping system)
Two operation modes are then offered:
Fixed boiler temperature set point (the
outdoor sensor shall not be installed)
Outdoor reset
4.2 DISPLAYED INFORMATION
The electronic control uses an LCD display to make
all adjustments and to visualize the operation of the
system.

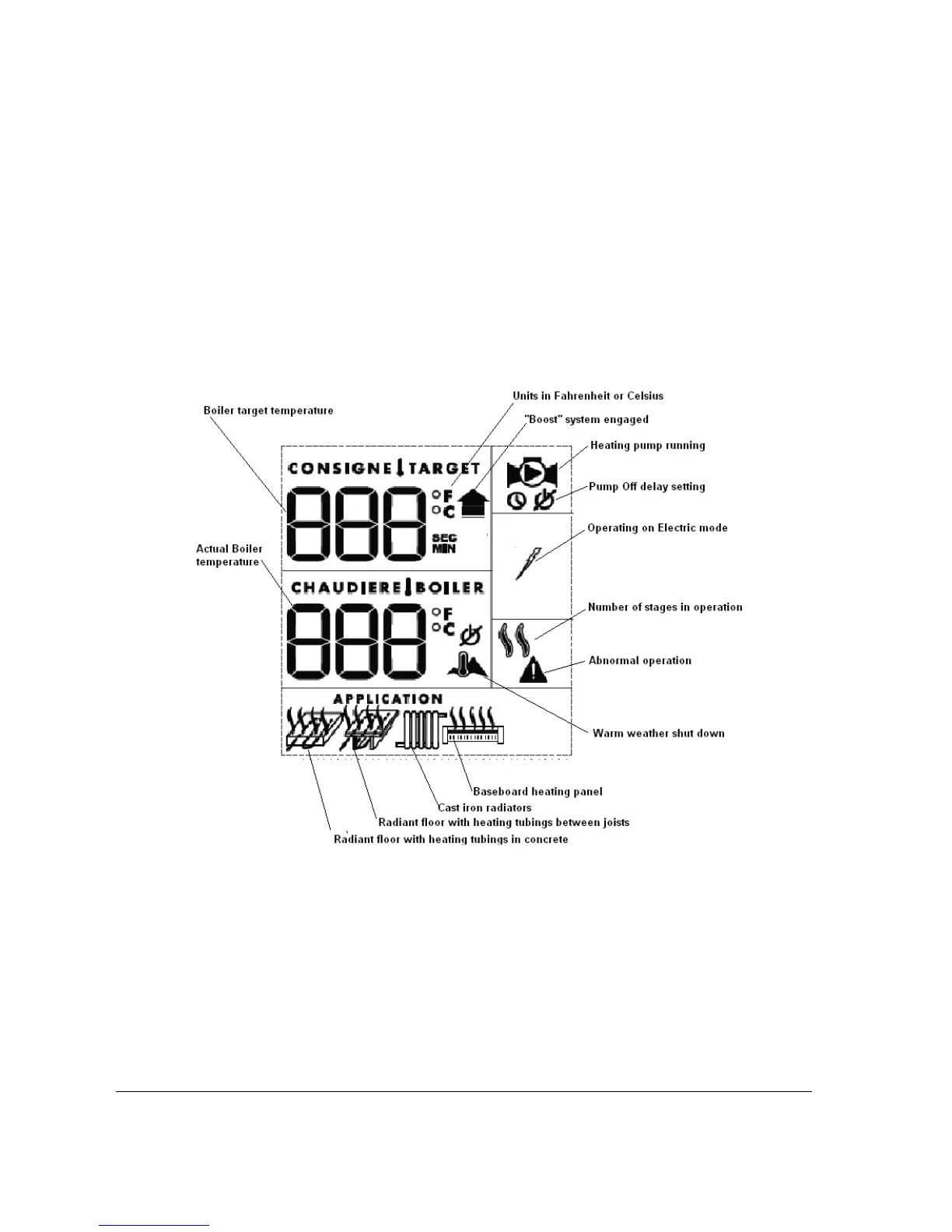

Figure 9 : UltraSmart Controller Display
