MINI ULTRA ELECTRIC BOILERS Installation and operating manual (Revision: May 2015)
7

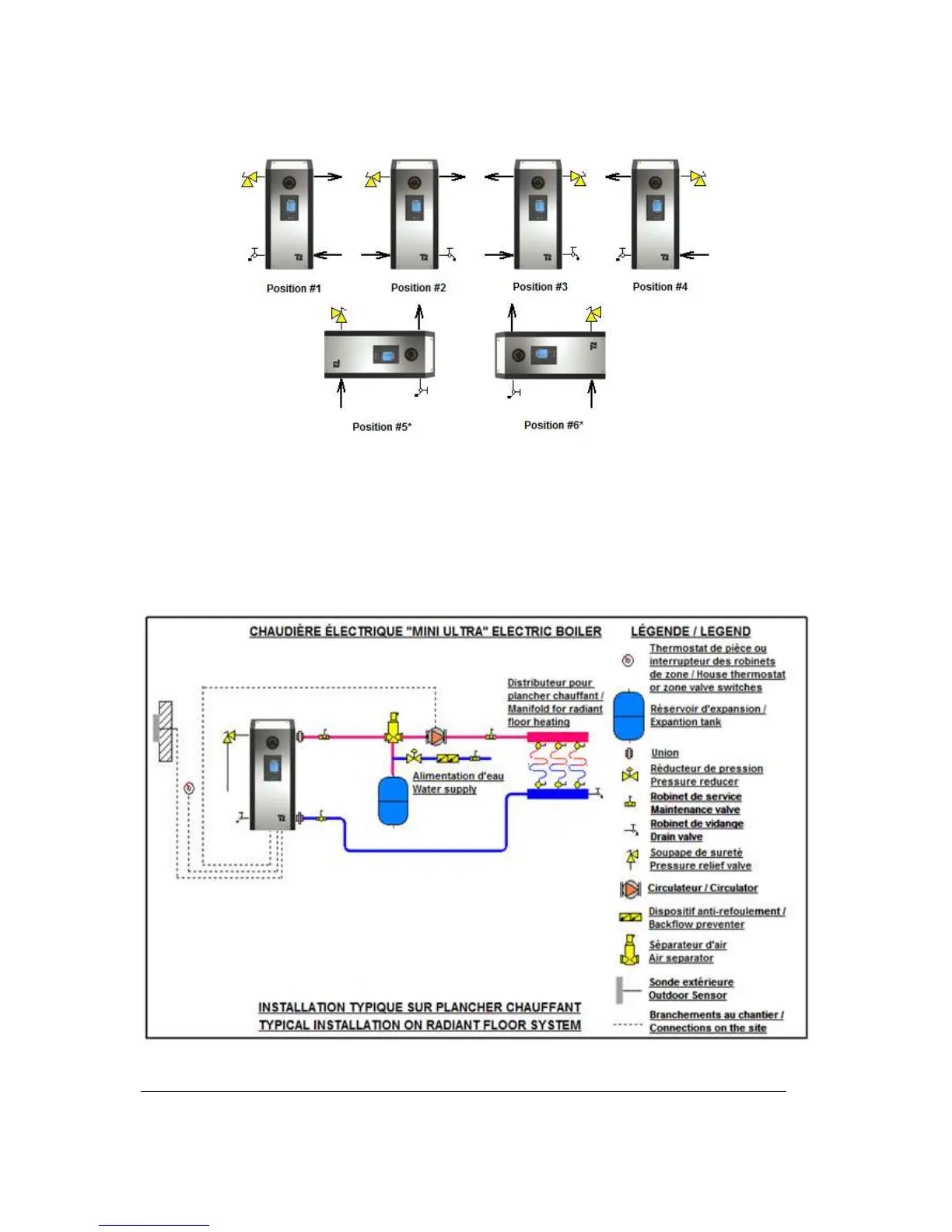

Figure 2 : Mounting positions
*In position #5 and #6: on boilers MINI ULTRA
3 & 4.5kW
, the heating element located in the upper section of the
boiler must be relocated into the lower opening.
3.4 BOILER WATER CONNECTIONS
Make sure you connect the accessories and the piping to the proper connection fittings as indicated at
figure 2 above and according to the selected mounting position.
Figure 3 &4 below shows typical connections of a MINI BTH boiler to a radiant floor and cast iron radiator
heating systems. The location of the distribution system components may be different from what is
represented.
Figure 3 : Typical piping lay-out
