THERMO 2000 MINI ULTRA - Replacement Parts

MINI ULTRA ELECTRIC BOILERS Installation and operating manual (Revision: May 2015) 19
6.2 REPLACEMENT PARTS

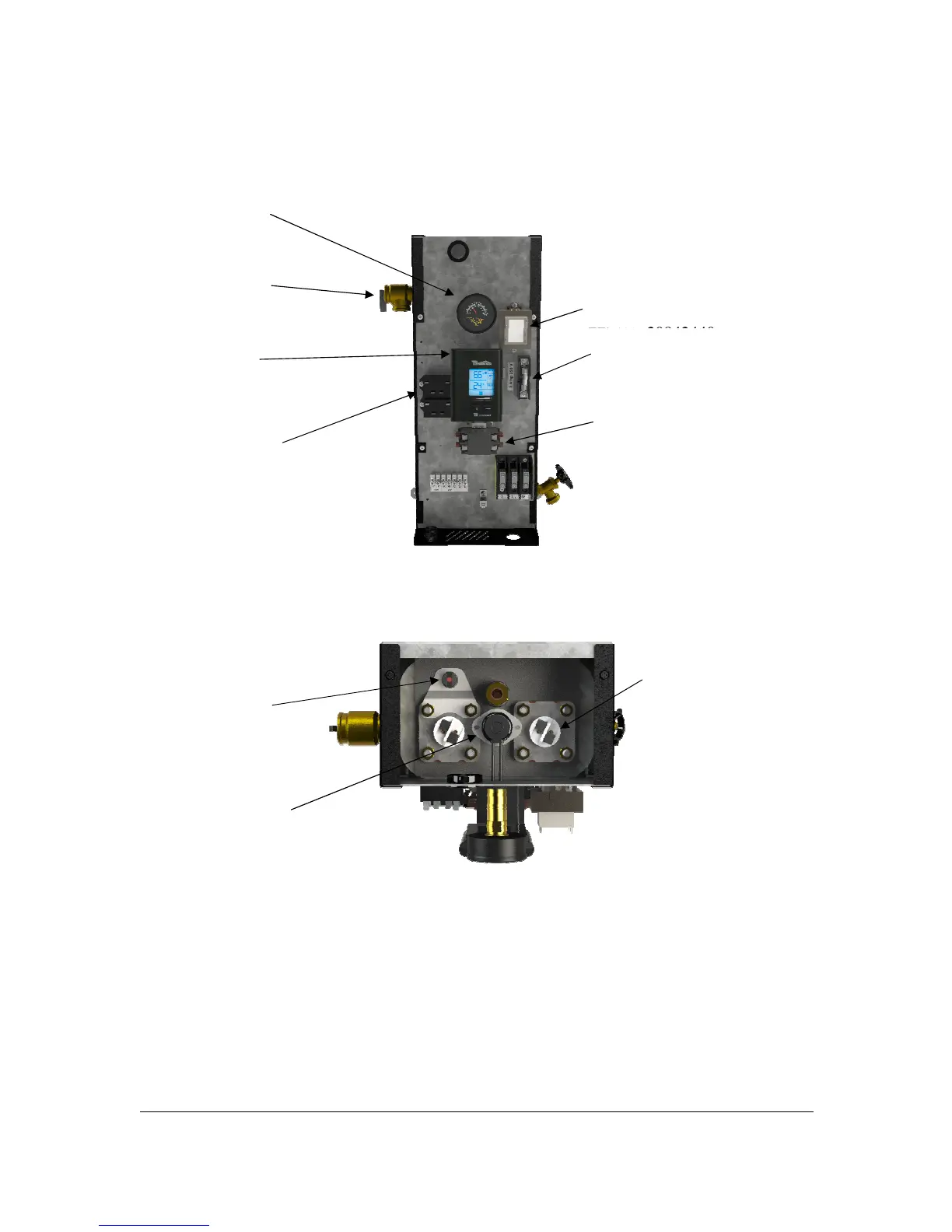

Figure 11 : Replacement Parts (Front view)
Figure 12 : Replacement Parts (Top view)
** When replacing a heating element, make sure to install it in the same orientation it was installed at the factory.
Heating Elements
**
3 kW : ZEL300-240V3KW
4.5 kW : ZEL300-240V45KW
6 kW : ZEL300-240V6KW
Fuse
ZEL250-TDMIDJ5
High
-
Limit automatic
reset Switch
ZEL200-L6C732
Power Relays 24Vac
ZEL100-24ACNO30
Pressure Relief
Valve
ZMC200-SV30PSI1
2 Poles Contactor 24Vac
(3, 4.5, 6, 7.5, 9 kW)
ZEL100-2PC5024
4 poles Contactor 24Vac
(12 kW)
ZEL100-4P50A24
Transformer 208/240Vx24V
(40va)
ZEL400
-
20842440
Temperature and
Pressure Indicator
ZMC300-75P160CN
Control Module
ZEL100-ULTRA
Surface High
-
Limit
manual reset switch
(USA Models only)
ZEL200
-
DISC227
