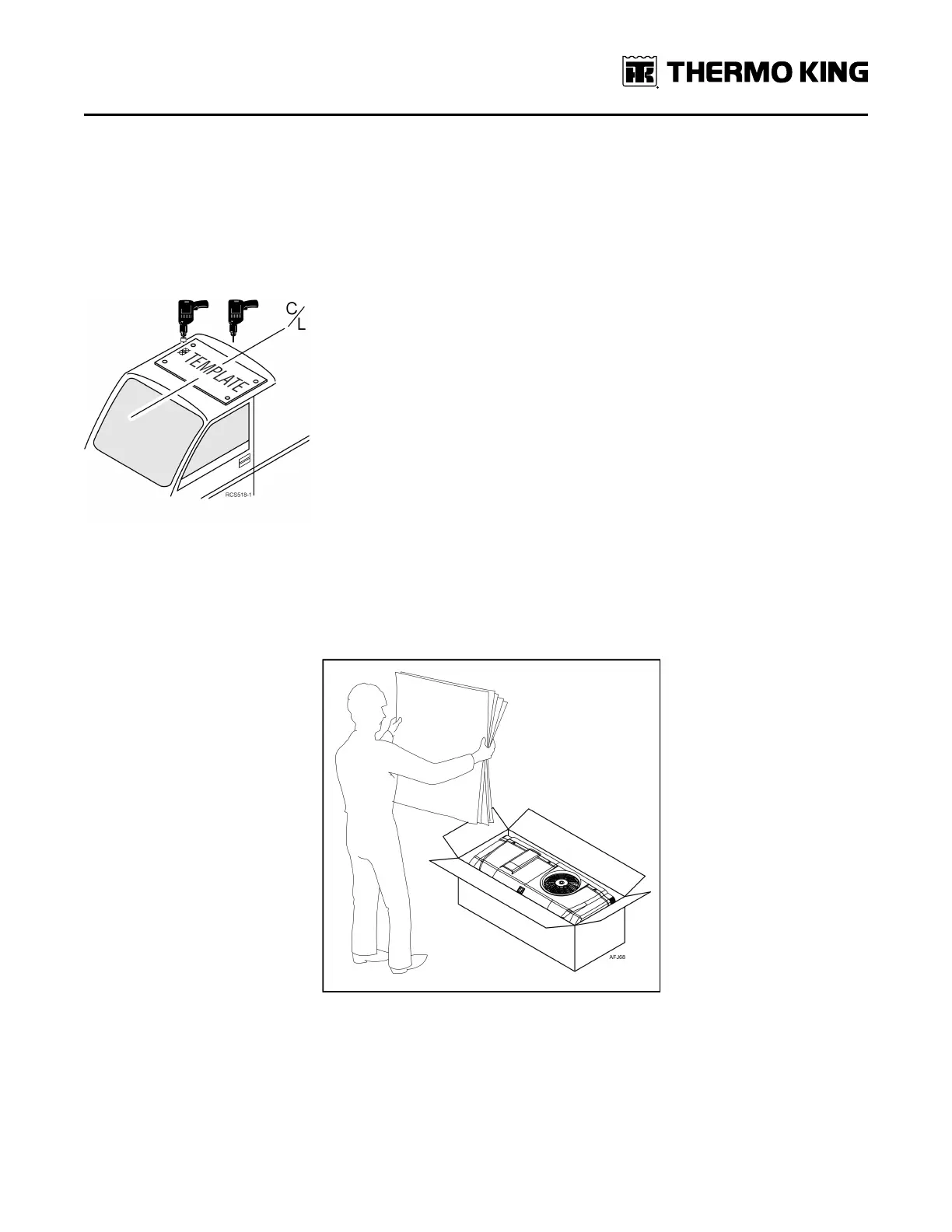

Installation Templates
Paper templates are available to assist with the installation of the condenser and evaporator. These templates provide
the installer with a “footprint” of the component and provide the correct mounting and access hole locations. Thermo
King Dealers can access templates through InfoCentral or order them through the ReqDirect system.
• Using templates saves time and errors by eliminating the time required to measure and mark the locations of the
individual holes.
• When installing multiple units, paper templates should be transferred to a more durable material such as aluminum.
This will allow you to reuse the templates as needed.
Unpacking and Inspecting Components
Components are carefully packaged at the factory to prevent damage during shipment. However, if components are
found to be damaged, contact the shipping company immediately. Contact Thermo King if components are missing.
Before beginning the installation, check the following against the sales order:
Confirm all components are accounted
for including the kits and any options.
