LED and sounder for warning and fault signaling.
An LCD display screen with function control panel to indicate the dose values and settings.
A clip assembly to fasten the EPD.
A battery compartment to replace the battery.
An operating button to adjust the settings on the unit.
A beta window to measure the personal surface dose H
p
(07).

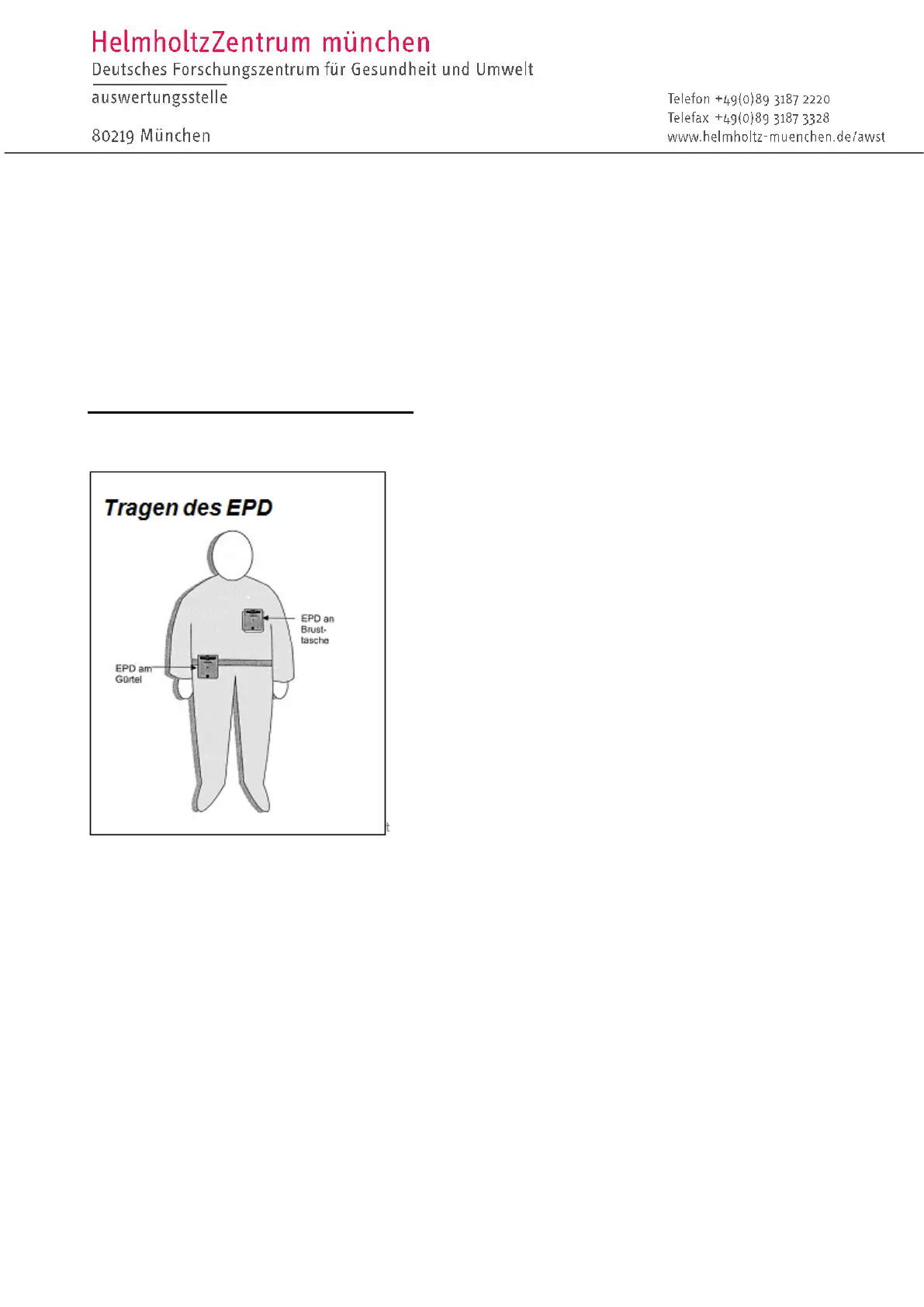

EPD should be worn as shown below:
Wearing the EPD
EPD on the breast pocket
EPD at the waist belt
Using the clip, the EPD can be fastened onto the waist belt or the chest pocket.
The EPD should be worn according to the instructions of the Radiation Safety Officer.
If the EPD is used for the weekly measurement of the personal dose of pregnant women, it
should be worn in the abdominal area.
Please note: the operating button must face out from the front of the body.
FO50KOM27A/ Guide for use 2 As of January 2014
