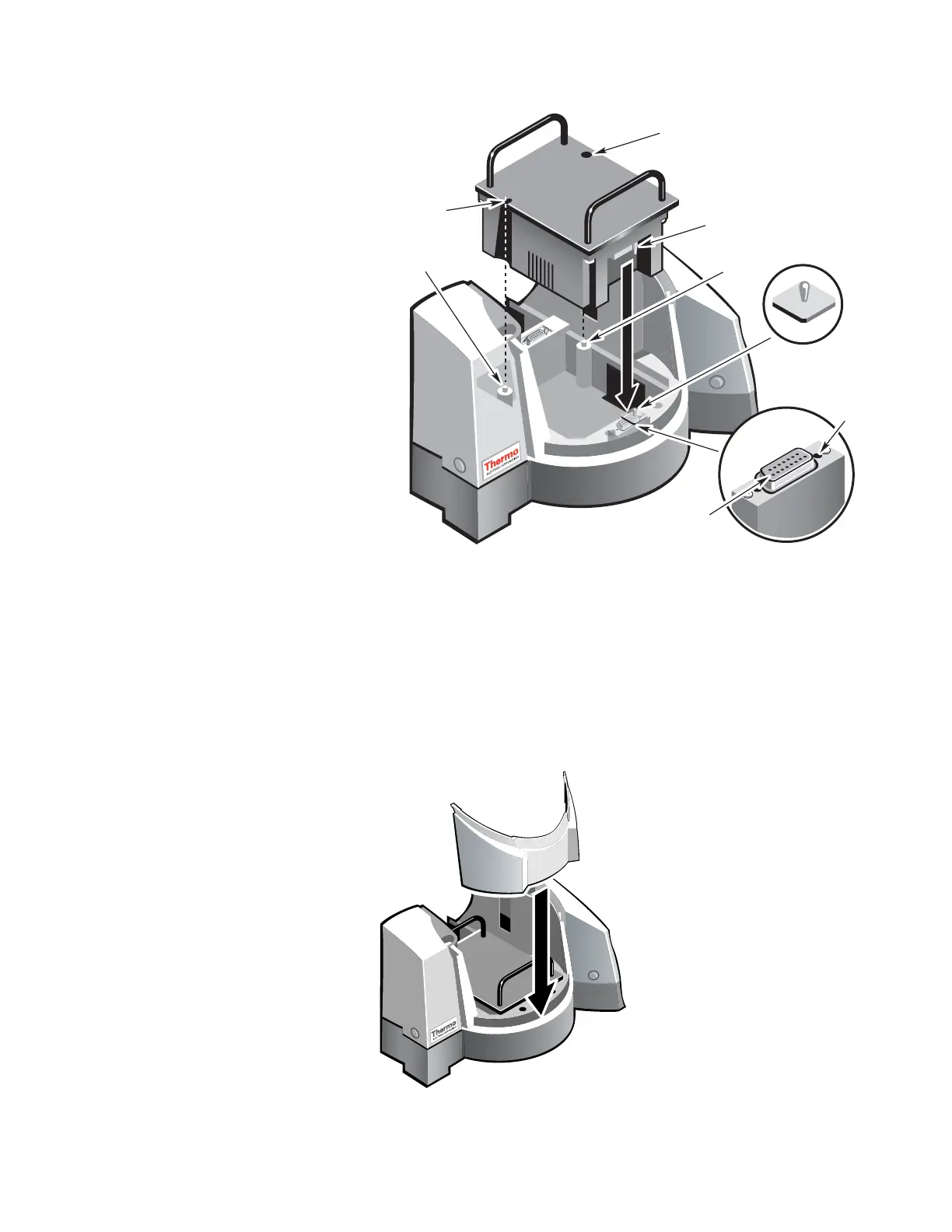

Alignment
hole B
Tapered
guide pin
A
lignment
hole A
Pin A
Pin B
Springloaded
toggle
D-connector
(female)
Guide
pin ho
le
Note On the Smart Peltier Thermostatted Single Cell Holder, the alignment
holes and pins are not visible due to the plastic cover over the unit. 
5. Press down on the front of the unit to complete the connection
between the accessory and the D connector.
6. Replace the front wall of the sample compartment.
