Thermo LabSystems Multiskan EX - Page 102

Lamp
Fan
Filter wheel slot
NAPSU 2 (keyboard) circuit board
LCD display circuit board
2 (printer) circuit board (opiional)
MUSCU %A processor circuit board
Connector for built-in printer
COMW~O~' for Centronics interface, optional
RS-232C interface or optional EEE-488 interface
MOCEN circuit board
Figure
7.

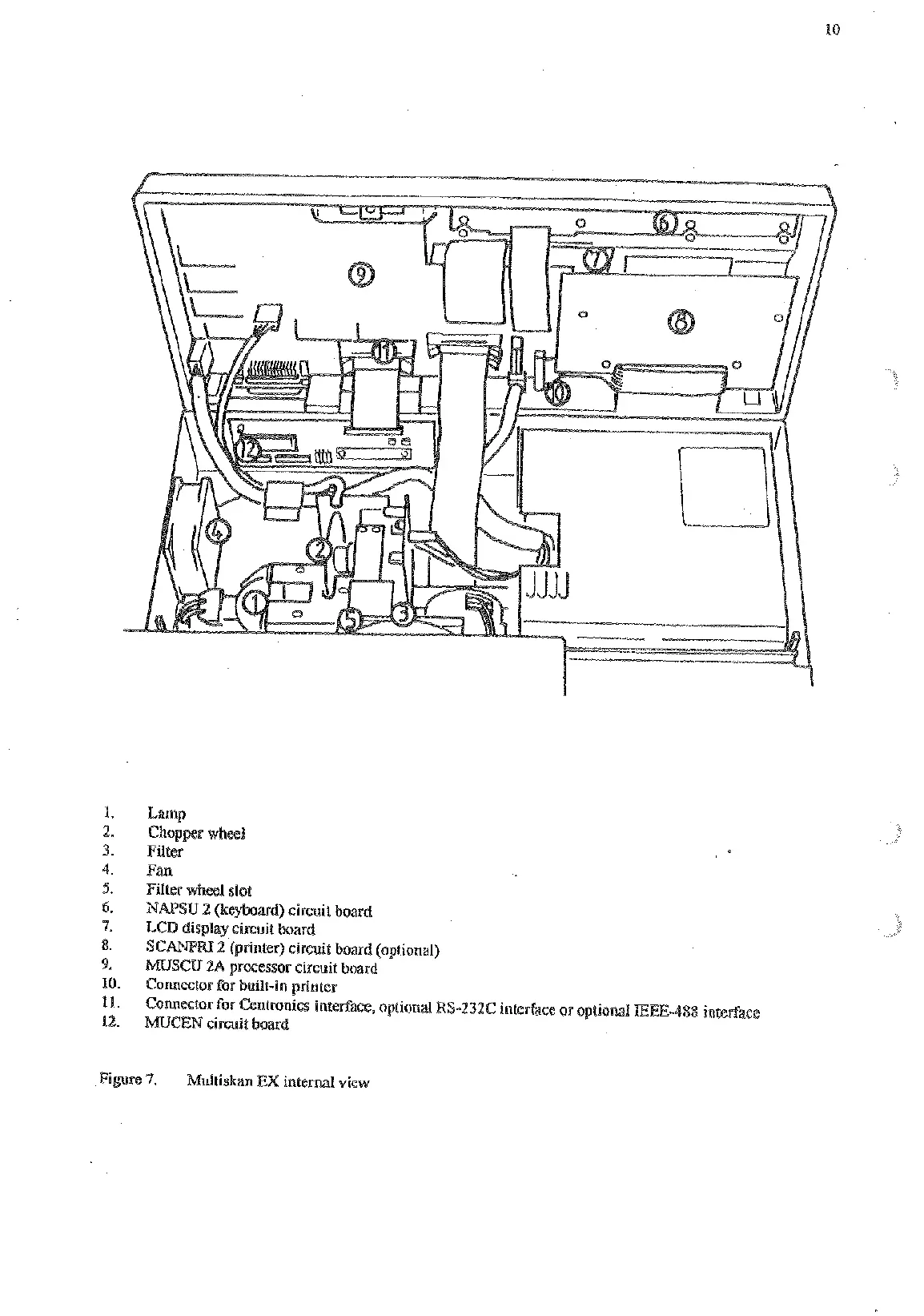

Multiskan EX internal view
