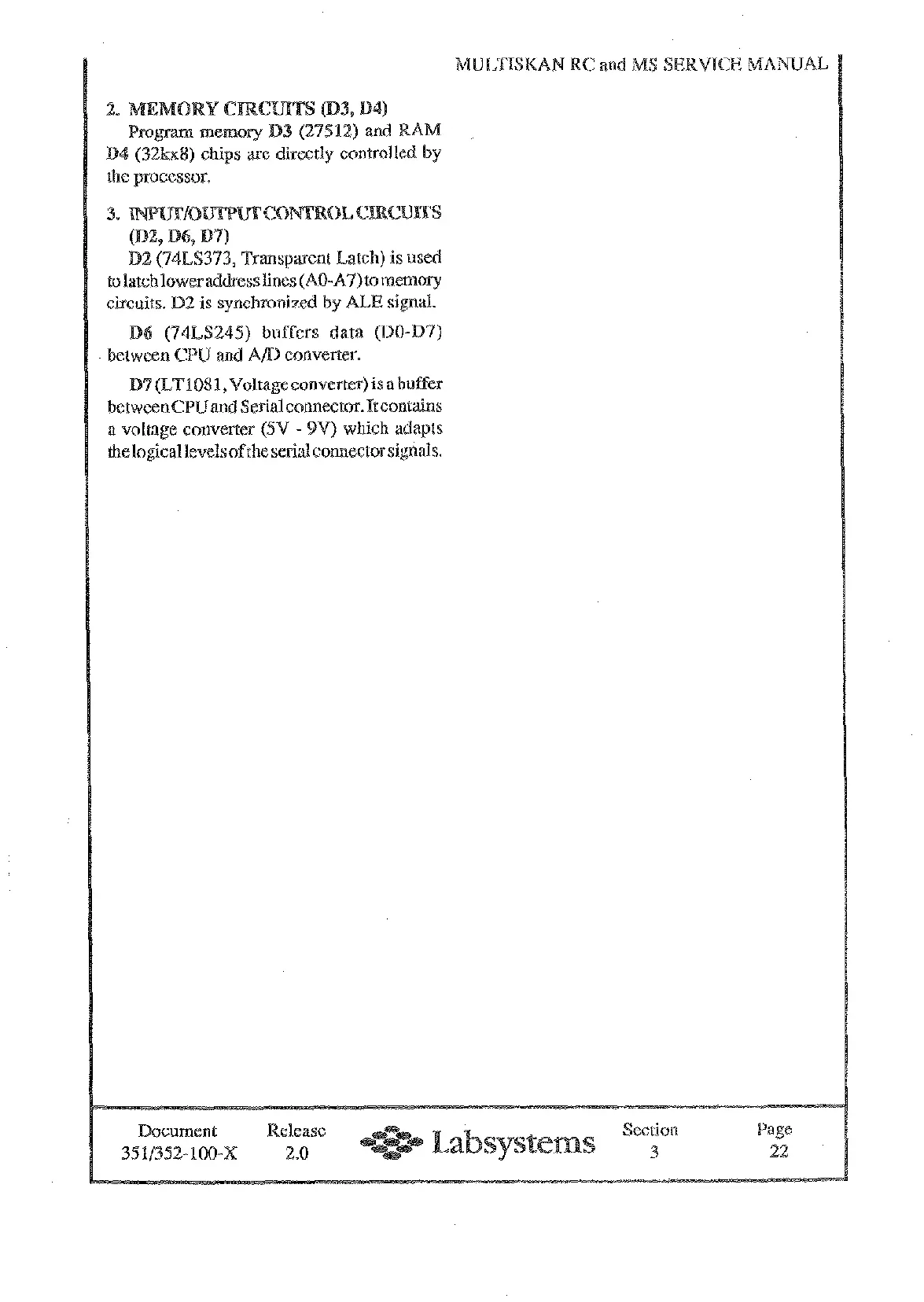

MULTISKAN RC and M
(32kxR) chips me directly controlled by
tolatch lower addresslines (AO-87) tomemov
circuits.
D2 is synchronized by ALE signal.
(74LS245) buffers data
(DO-D7)
between CPU and AD converter.
11)7 (LT1081, Voltageconvefler) is a buffer
between
CPW and Serial connector. It contains
a voltage converter (5V
- 9V) which adapts
the logical levels of the serial connector signals.
Document Release ection Page
3~11352- 100-x
2.0 e 3 22
