ER 5
ER7
ER8
ER9
ERlO
ERl
l
ER12
ER13
ER14
ER15
ER16

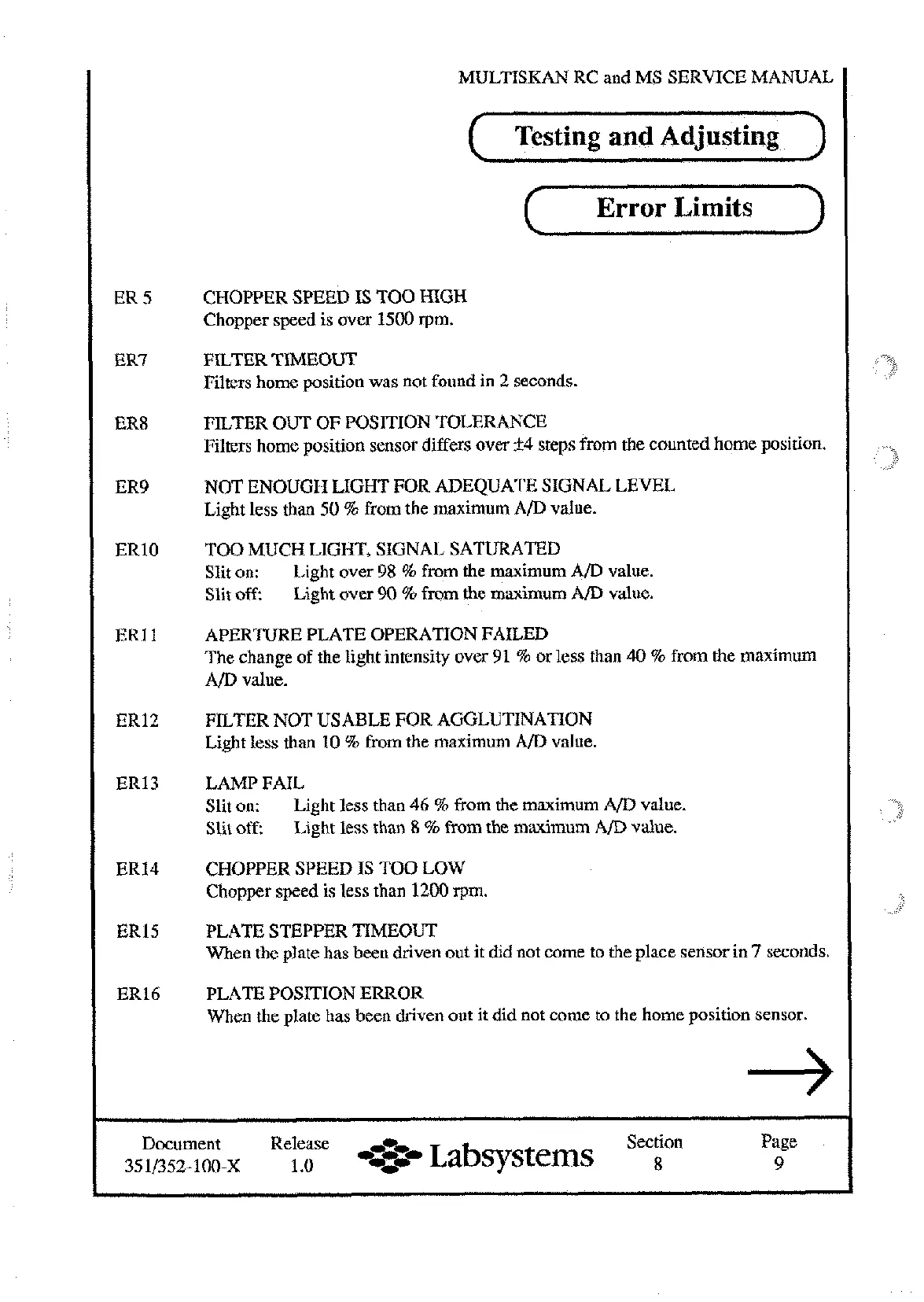

MULTISKAN RC and MS SERVICE MANUAL
(
Testing and Adjusting
Error
Limits
CHOPPER SPEED IS TOO
HIGH
Chopper speed is over 1500 rpm.
FILTER TIMEOUT
Filters home position was not found in 2 seconds.
FILTER OUT OF POSITION TOLERANCE
Filters home position sensor differs over
14
steps from the counted home position.
NOT ENOUGH LIGHT FOR ADEQUATE SIGNAL LEVEL
Light less than 50
%
from the maximum A/D value.
TOO MUCH LIGHT, SIGNAL SATURATED
Slit on:
Light over
98
%
from the maximum A/D value.
Slit off:
Light over 90
%
from the maximum A/D value.
APERTURE PLATE OPERATION FAILED
The change of the light intensity over 91
%
or less than
40
%
from the maximum
A/D
value.
FILTER NOT USABLE FOR AGGLUTINATION
Light less than 10
%
from the maximum
A/D
value.
LAMP FAIL
Slit on:
Light less than 46
%
from the maximum A/D value.
Slit off:
Light less than 8
%
from the maximum
A/D
value.
CHOPPER SPEED IS TOO LOW
Chopper speed is less than 1200 rpm.
PLATE STEPPER TIMEOUT
When the plate has been driven out
it
did not come to the place sensor in
7
seconds.
PLATE POSITION ERROR
When the plate has been driven out it did not come to the home position sensor.
Document Release Section Page
35 1/352-100-~ 1
.O
4%
Labsystems
8
9
