Electric Tankless Instant Water Heater - Installation Manual and User Guide
EN

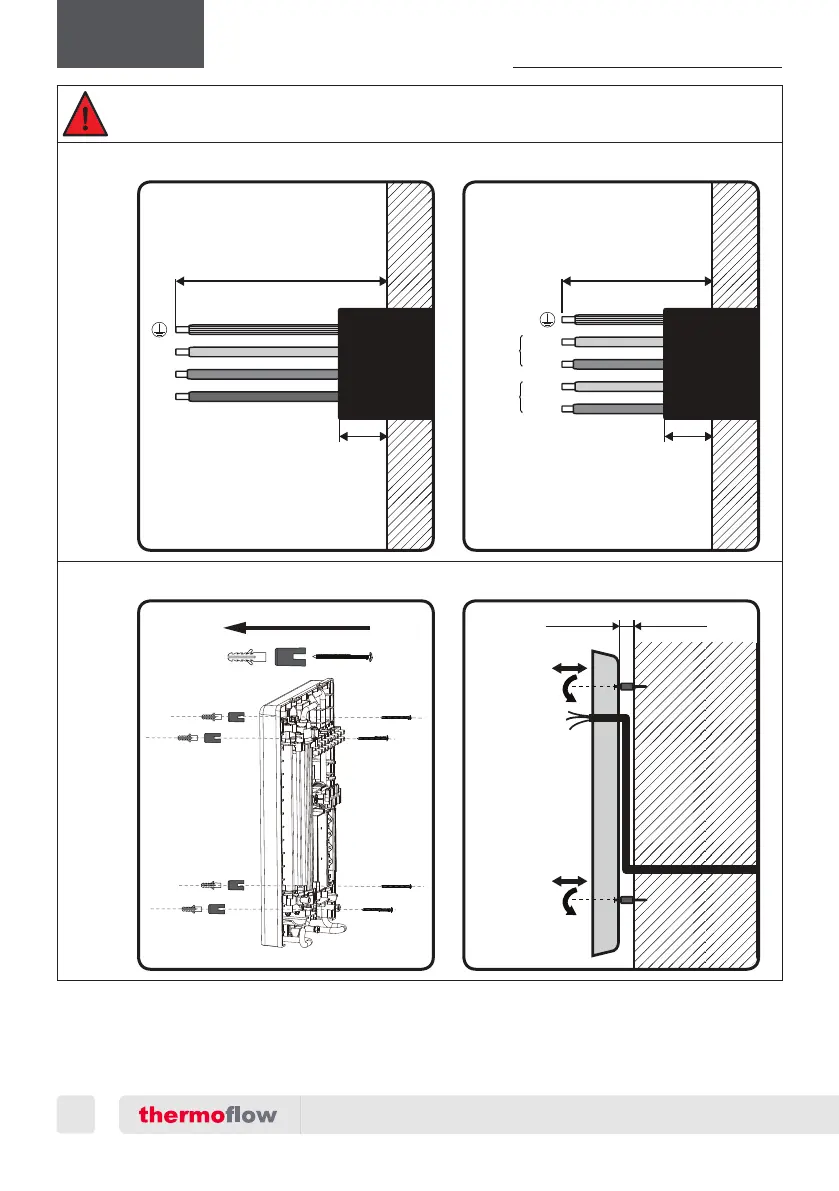

Mounting Instructions
Elex 6/8/8.5/9.6/10/12/15/18/21/24/3IN1 (P)
B5.a.
3-Phase
B9.
25mm
(1”)
150mm (6”)
L1
L2
L3
B5.b.
Single-Phase
B9.
25mm
(1”)
150mm (6”)
L/L1
N/L2
L/L1
N/L2
220-240V
220-240V
B6.
B5.
B7.
max. 25mm (1”)
B6.
