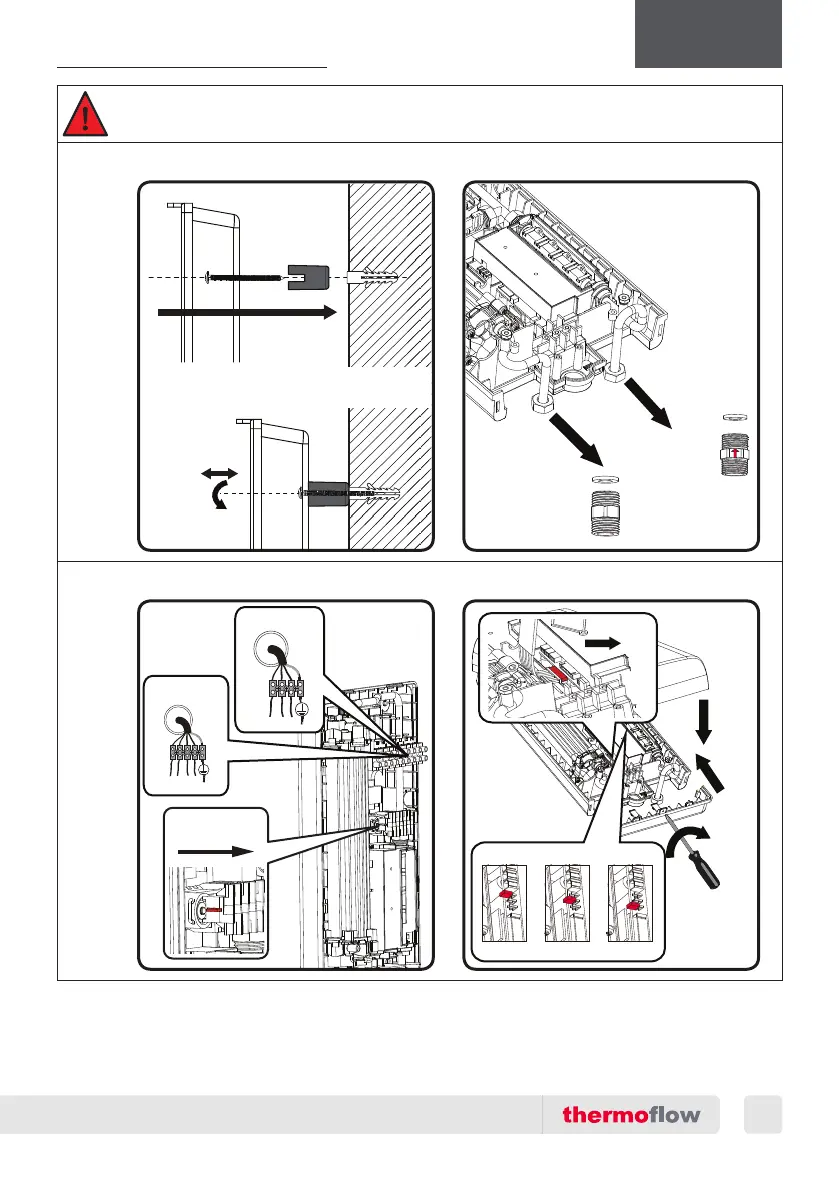

Mounting Instructions
Elex 6/8/8.5/9.6/10/12/15/18/21/24/3IN1 (P)
B8.
B7.
B9.
B8.
Inlet Connector
Outlet Connector
Gasket
Gasket
B10.
Push the button
to reset the switch
L1
L2
L3
L1
/L
L2
/N
L1
/L
L2
/N
3-Phase Wiring
Single Phase
Wiring
B11.
4
5
1
18kW
Power adjustment for 3IN1 models
21kW 24kW
Display plug
2
3
