4
1. Place the antennas upright.
2. When connecting each pair of antenna cables, follow the labels on the reader faceplate
as shown below.

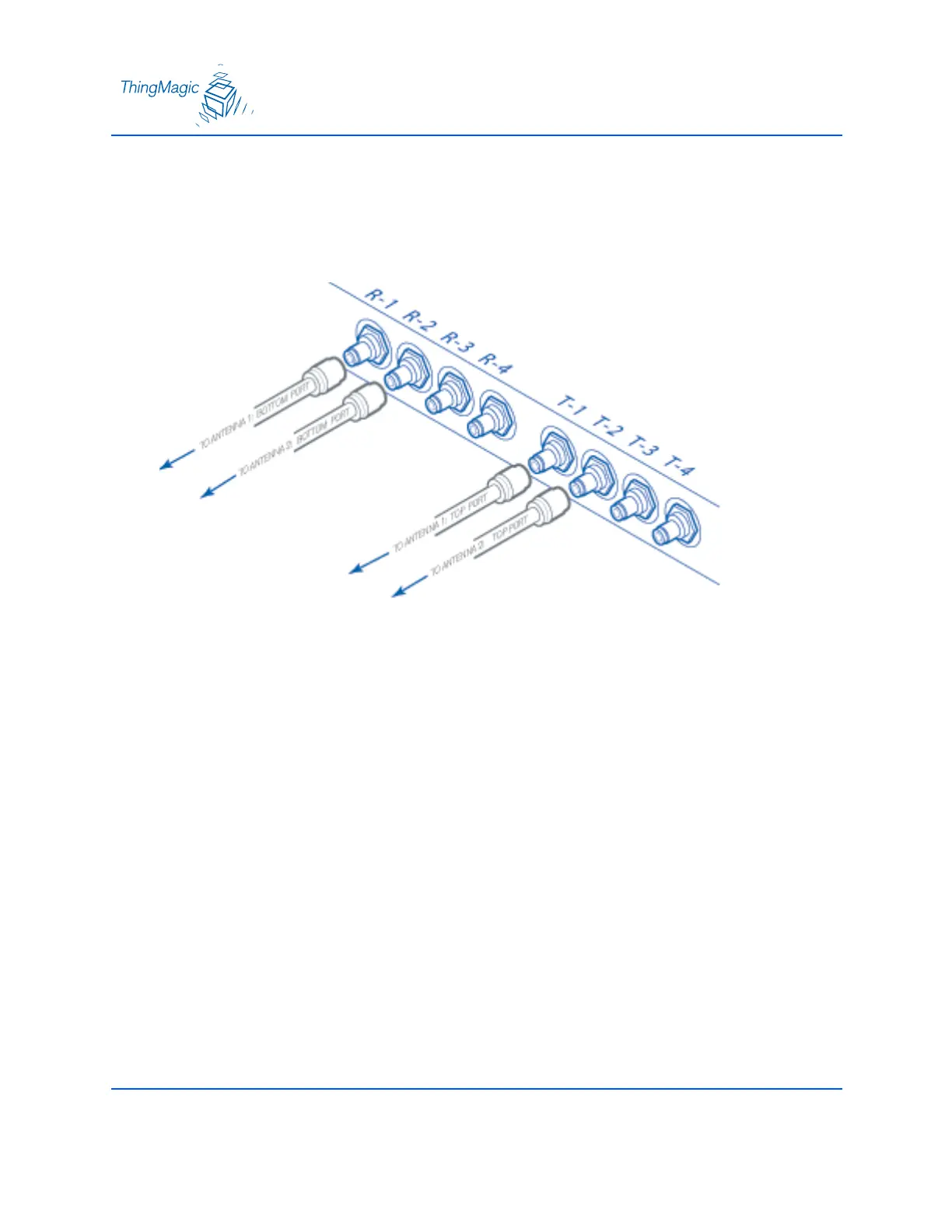

Connecting Cable Pairs to Reader
3. Connect the top port of the antenna to the T-1 (transmit) port on the reader. Connect
the bottom port of the antenna to the R-1 (receive) port on the reader.
4. Repeat for the second through fourth antenna, if supplied, using T2 and R2, etc.
