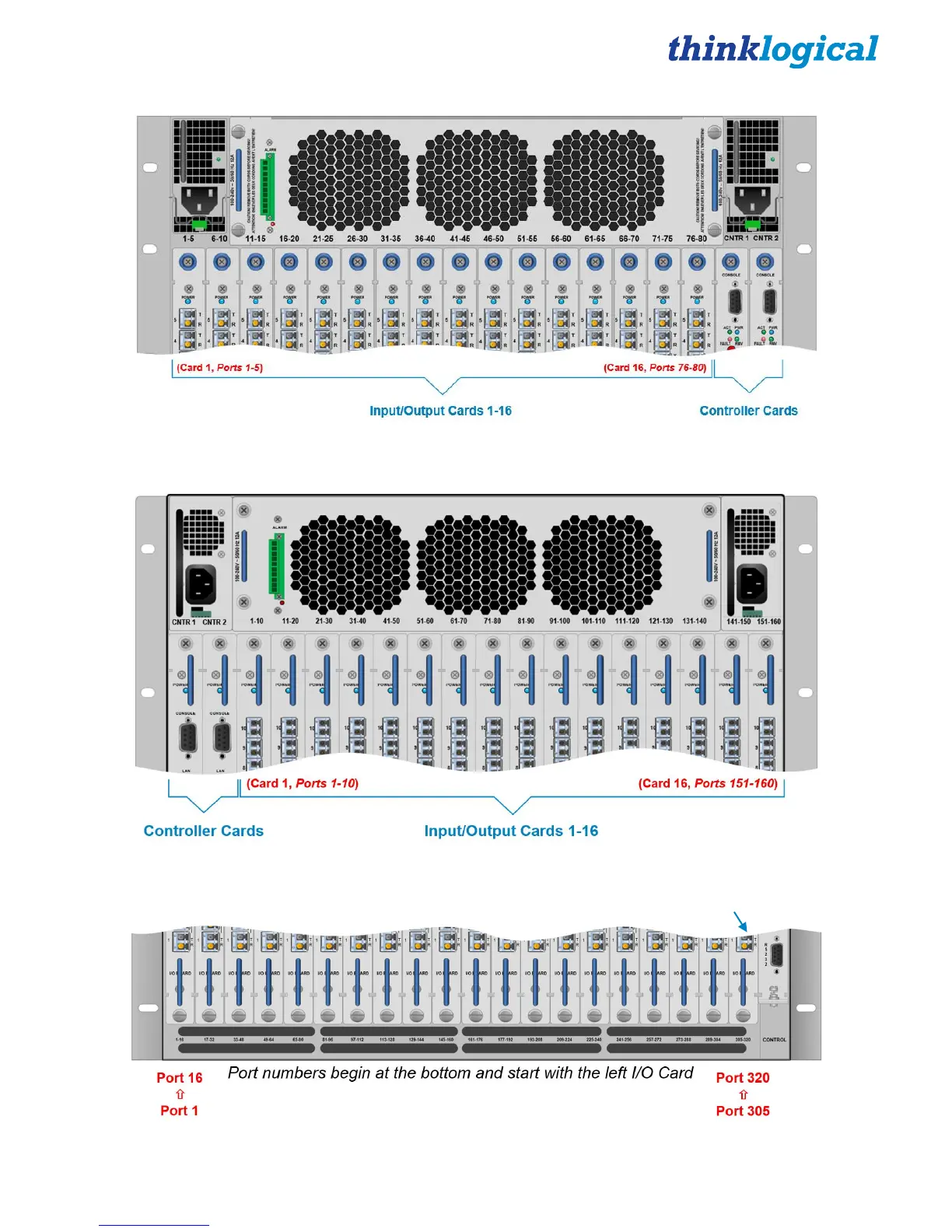

TLX Matrix Switch ASCII API V5 17 Rev. I, January 2019
The TLX80
TLX80 Port numbers begin at the bottom and start with the left I/O Card.
The TLX160
TLX160 Port numbers begin at the bottom and start with the left I/O Card.
The TLX320
Controller Cards
