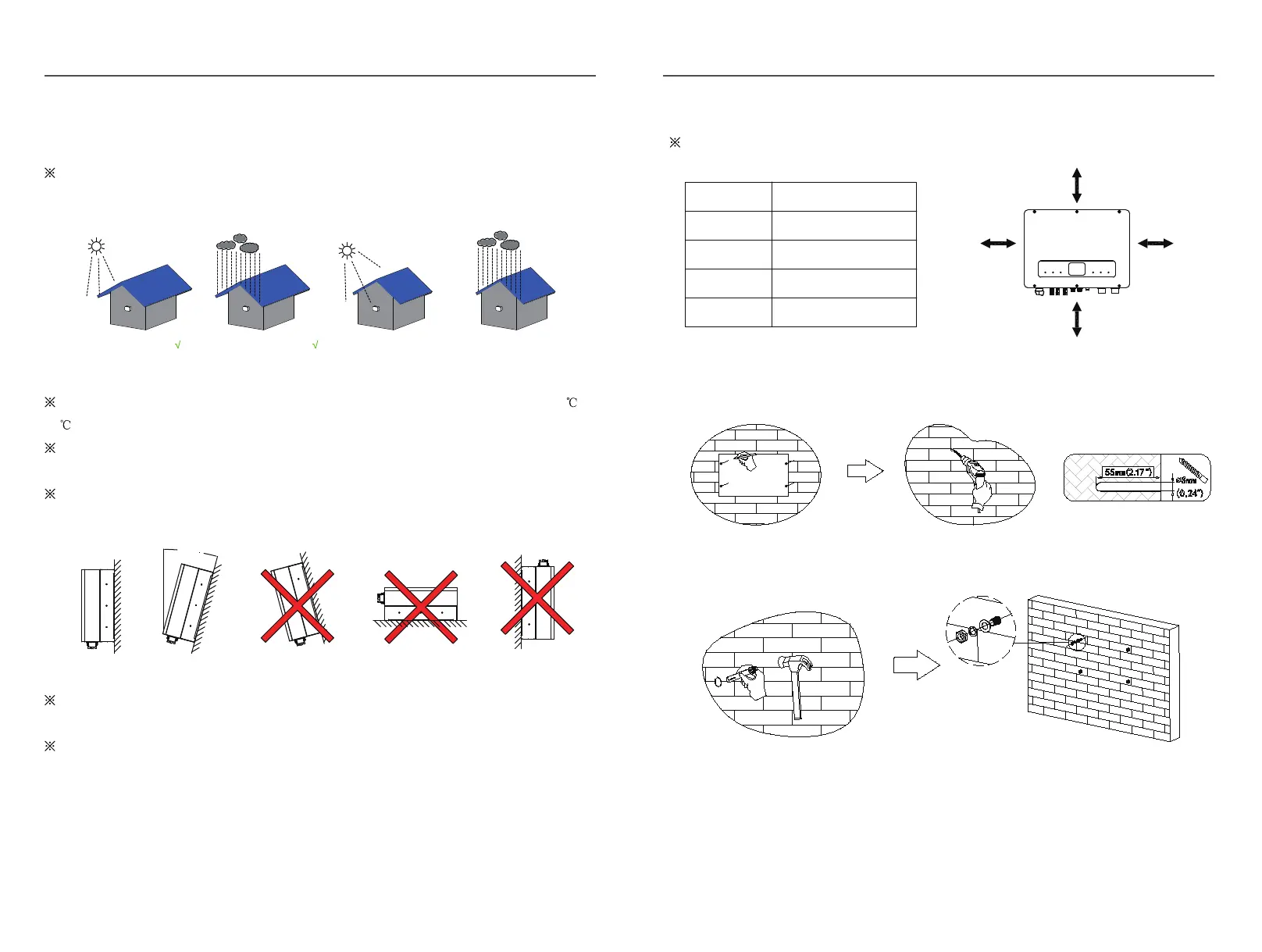

2.3 Mounting
2.3.1 Requirements For Mounting
The installation of the inverter should be protected under shelter from direct sunshine or
any bad weather conditions as shown below:
Fig.2.1
The inverter should be installed in a cool & dry place with temperature from -25 to
60
(High ambient temperature will cause the inverter’s power derating).
The inverter LCD should be leveled with eyes and with enough space in the front for
inspection.
The inverter should be install
ed on a vertical wall or within 15°at most if backwards to the
wall
Fig.2.2
To avoid burning and electric shock, the inverter should be installed beyond reach of
children.
Make sure the installation position does not shake.
MAX 15°
No Direct Sunlight
No Exposure to Rain and Snow
Direct Sunlight
×
Exposure to Rain and Snow
×
Leave enough space around the inverter as shown below:
Fig.2.3
2.3.2 Mounting The Inverter
Step 1: Use the positioning the cardboard as template to drill 4 holes on walls.
Fig.2.4
Step2: Fix the trapping screws to the wall tightly.
Fig.2.5
Position Min.Size(CM)
Front
40CM
Lateral
Top
Bottom
40CM
40CM
50CM
40CM
40CM 40CM
50CM
87
Installation Installation
