7. Installation

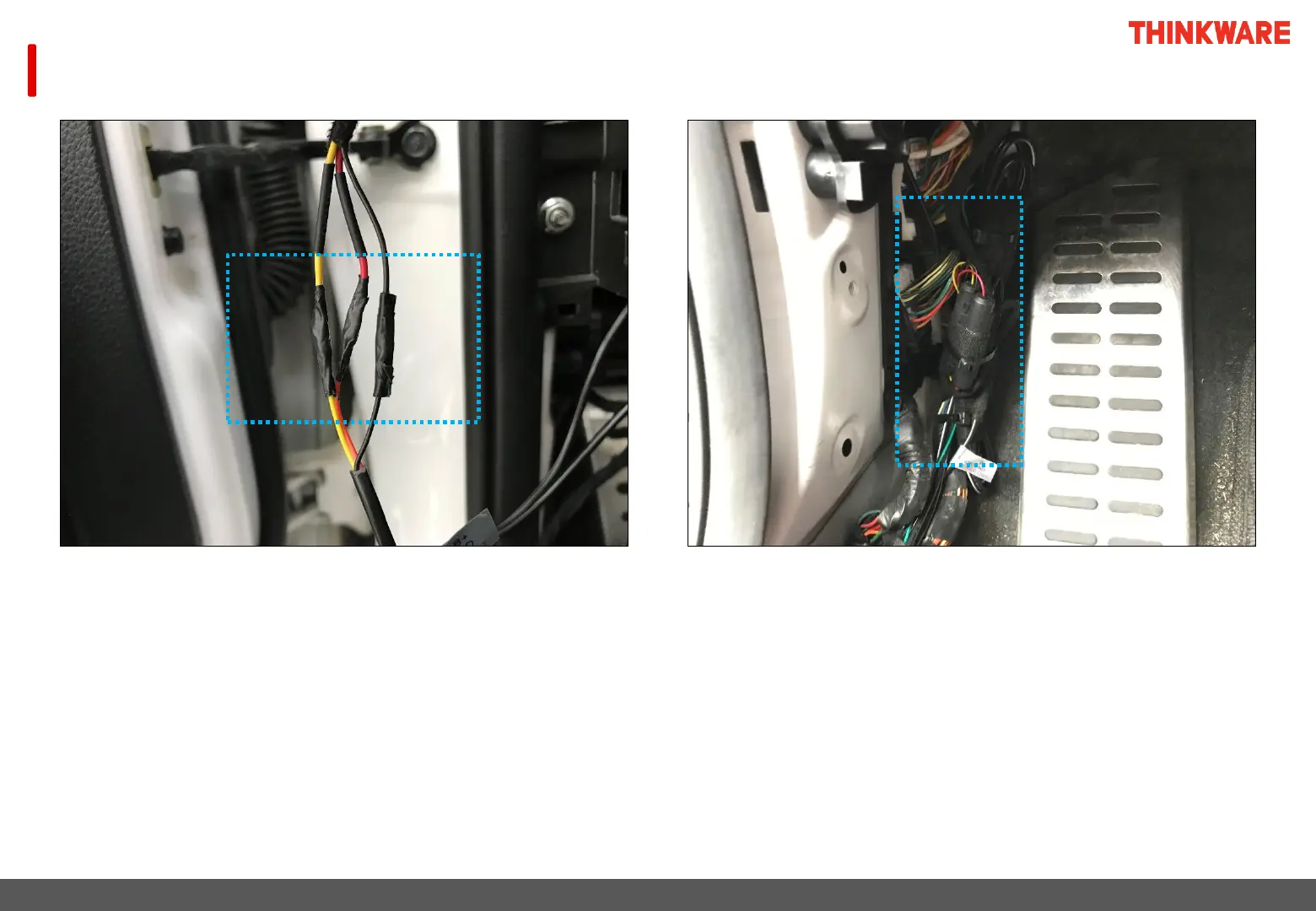

• Connecting the output cable
① Connect the power wires B+ (yellow), ACC OUT (red),
and GND (black) of the output cable to the constant power cables
of the dash dam (B+, ACC, GND)respectively
• Organizing slack wires
② Organize the slack wires following the genuine wiring
of the vehicle up to the kick panel location of the driver’s seat
