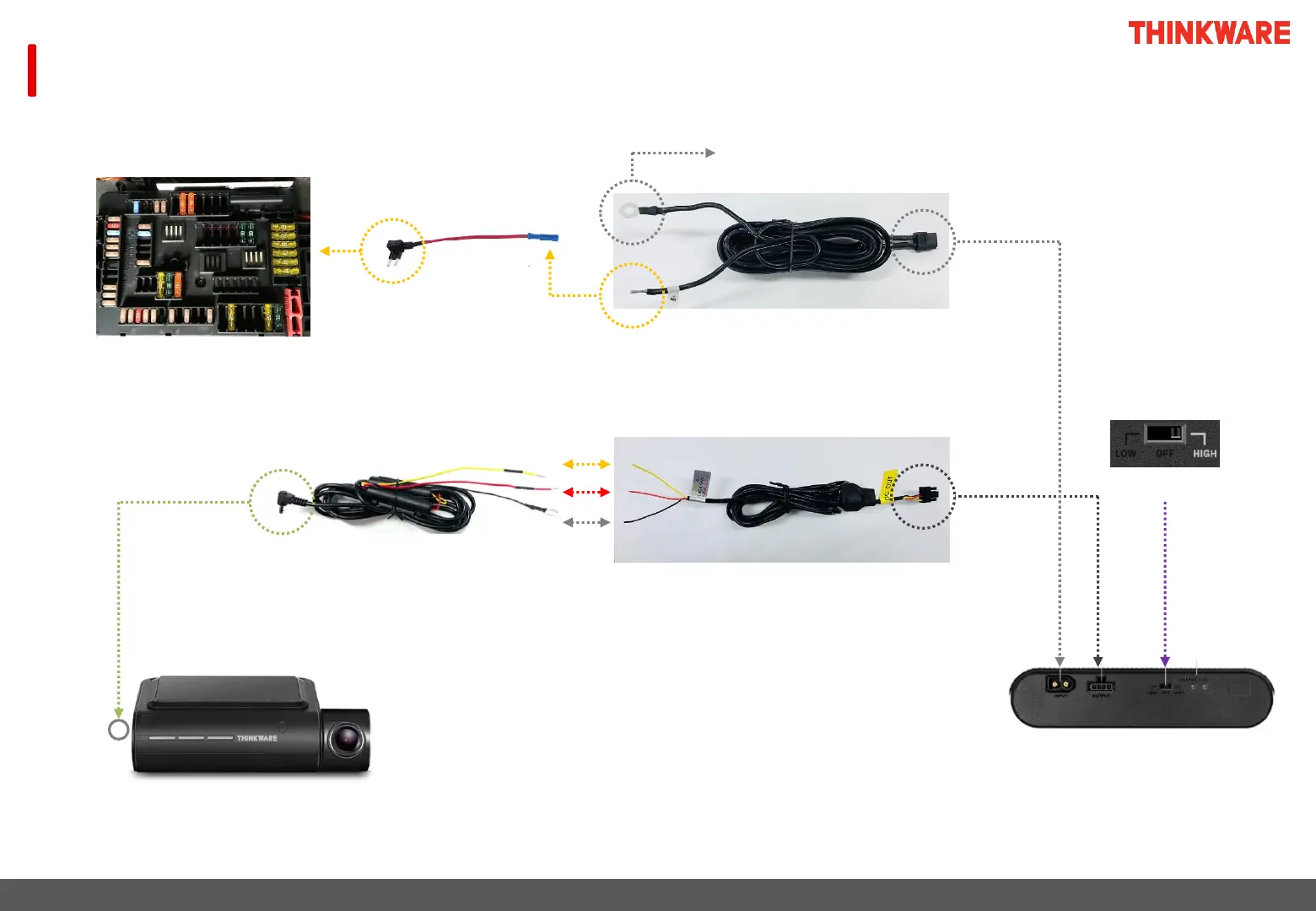

3. Wiring Diagram for Installation – BAB-50 (Connecting to the Fuse Box)
BAB-50 Main Unit
Dash Cam
Constant Power Cable
* The BAB-50 model uses an ACC power fuse of 20A or higher when the fuse box charging cable is connected.
Interior Fuse Box
Fuse Holder
B+
ACC
GND
ACC Power
Input
Ground to Chassis (GND)
Hardwiring Cable
Output Cable
Switch HIGH
(7A) Setting
DC-IN
