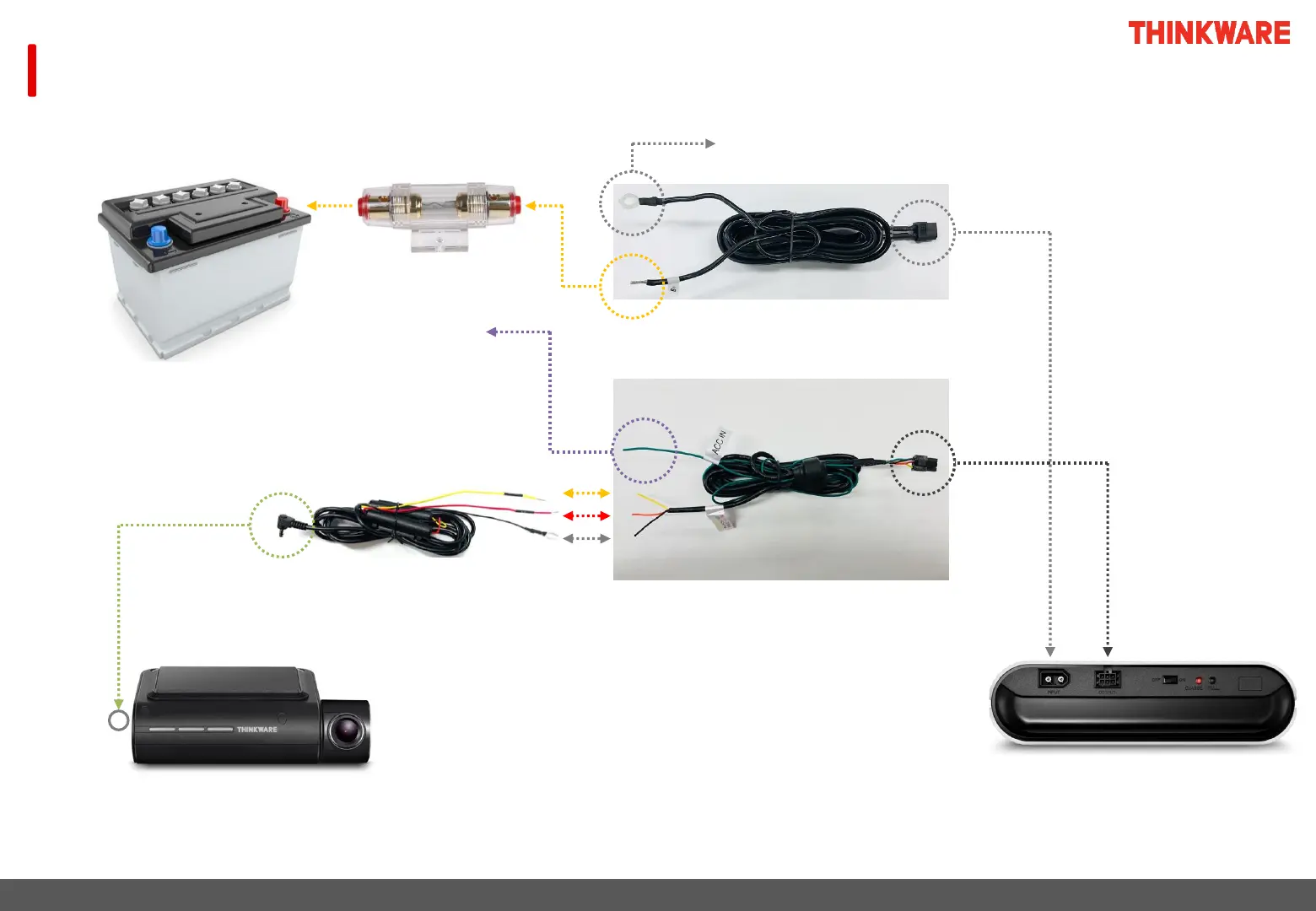

6. Installation Wiring Diagram – BAB-100 (Connecting to the Car Battery)
* A separate purchase AGU or ANL fuse block (20A or higher) is required when connecting directly to the car battery.
** You cannot connect the BAB-50 model directly to the car battery.
ACC Power Signal
Input
(Interior Fuse Box)
Ground to Chassis (GND)
Charging Cable (Power Input)
Output Cable
Fuse Block
(AGU or ANL)
B+ Power Input
ACC IN
Car Battery
Output Cable
Dash Cam
Constant Power Cable
DC-IN
B+
ACC
GND
BAB-100 Main Unit
