4-4
4. About Product
4. About Product
4-2-2
Encoder Specifications
●Linear Encoder Basic Specifications
Type Incremental magnetic encoder
Resolution [μm]* 1/5/10
Accuracy Repeatability in One Direction ± Resolution or less
Power supply [V] DC5V±5%
Max. Current Consumption [mA] 50 or less
Output
Incremental A-B phase differential output
EIA-422 line driver
Standard compliance
EMC directive (2014/30/EU)
EN 61800.3:2004/AI!2012,
EN 550112009/AI:2010,
Use and Storage Ambient Temperature 0 to 50°C (No freezing)
Use and Storage Ambient Humidity 20 to 80%RH (No condensation)
* It is the value after multiplying by 4.
4-2-3
Output Specifications
●The output signals from SHS-LE should be complied with EIA-422,
A/B-phased, differential outputs and in the line driver format.
●The higher-level device (e.g. counter) that you prepare yourself
should receive in the line receiver circuit.

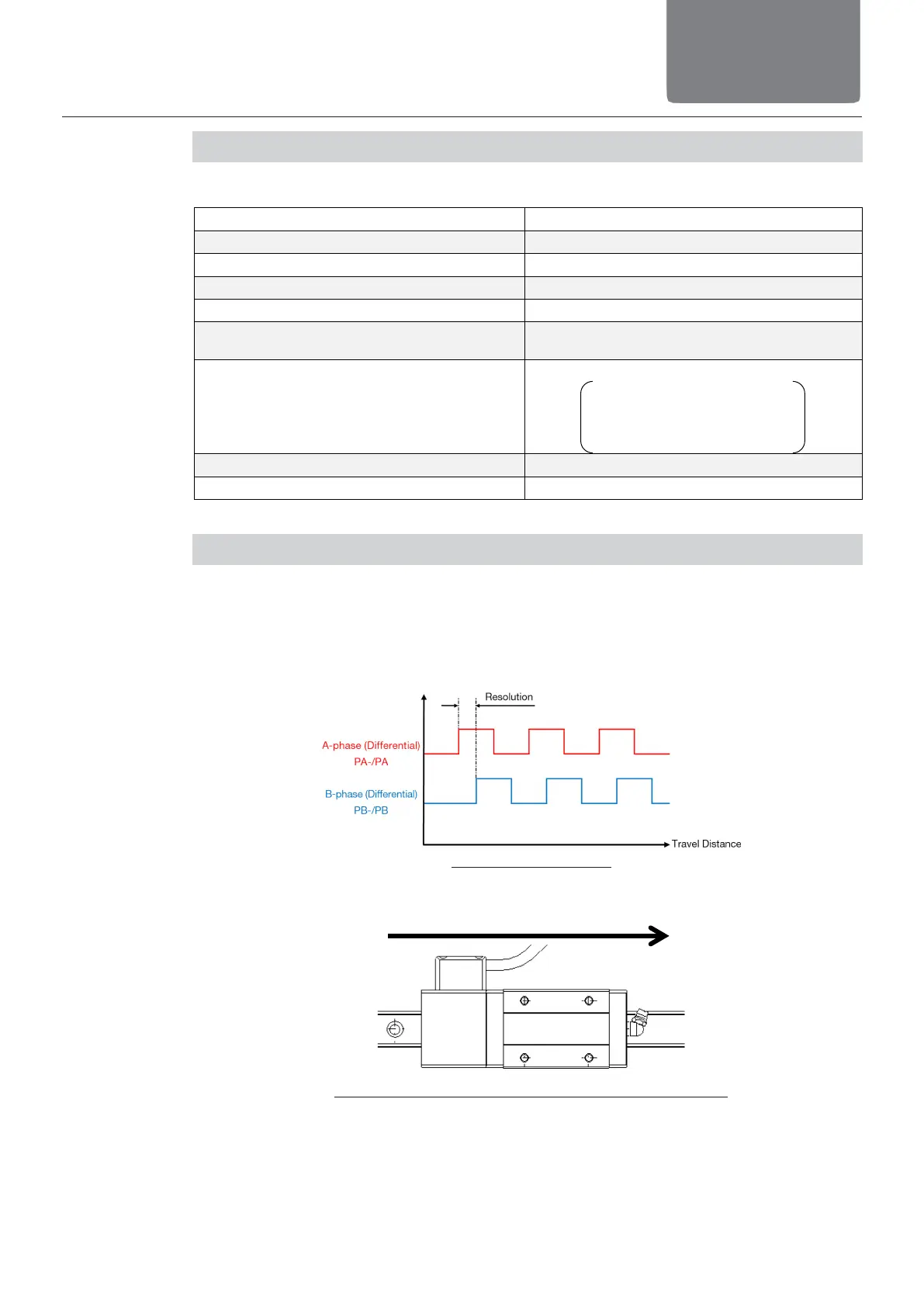

Fig. 4-6 Output Signal
Fig. 4-7 Moving Direction and Output Signal Direction
When moving in cable direction: Lead by A-phase
(Encoder Positive Direction)
To Next Page
