4-2-4
Extension cable

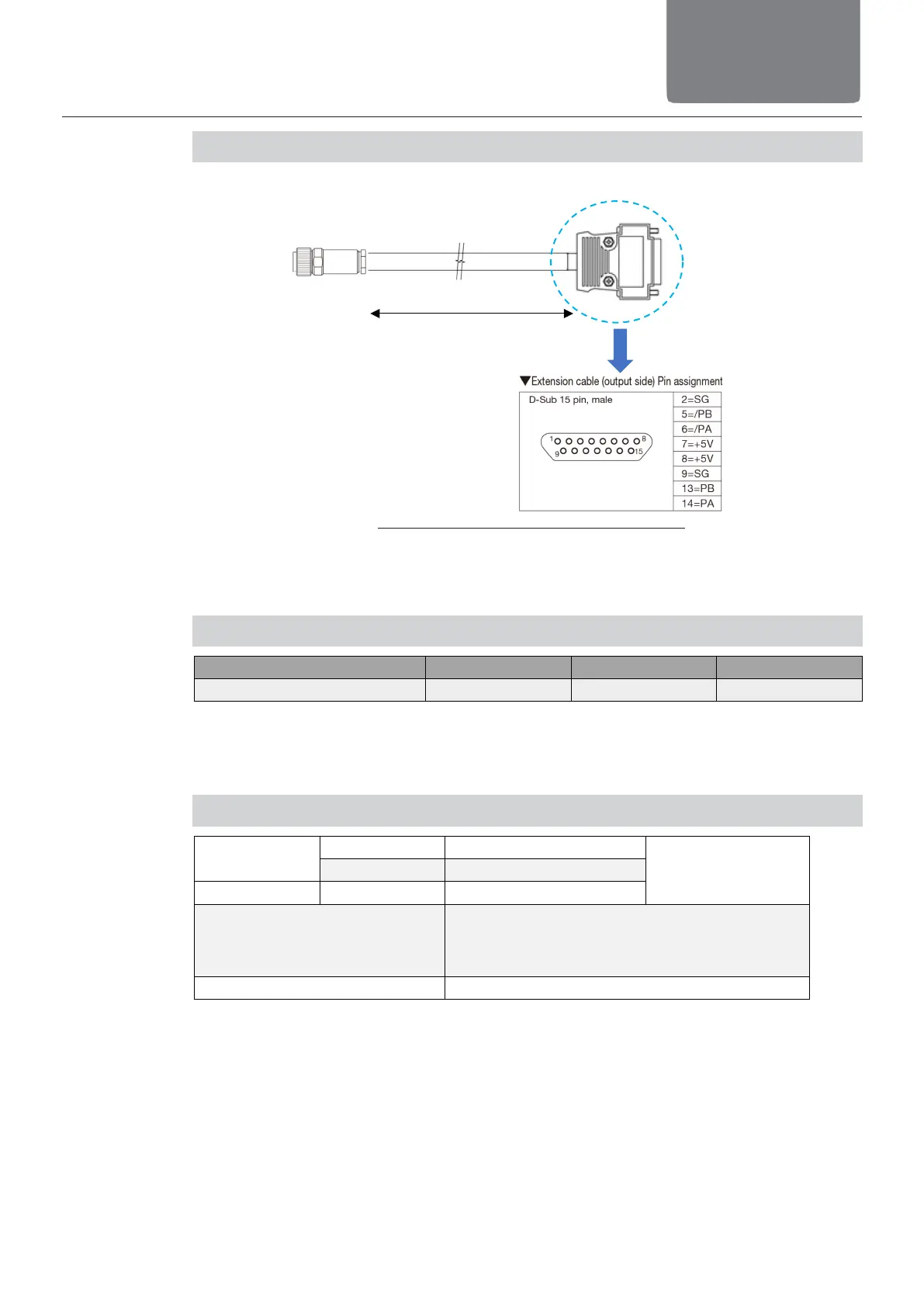

Fig. 4-8 Specifications of Extension Cable
● Make sure to connect the connector hood as it works as the frame grounding (FG).
● Consult with our IOT Innovation Division when an extension cable is to be made by yourself.
4-2-5
Max. Response Speed
Resolution [μm] 1 5 10
Maximum speed [m/s]
9.34 23.34 23.34
Shown above is the response speed of the encoder reading.
The maximum speed of the LM guide gives an impact to many conditions such as lubricant
condition and payload condition.
Consult with our IOT Innovation Division for details.
4-2-6
General Specifications
Temperature
Min. – Max.
In use
0 to 50°C
No freezing or
condensation
Storage
0 to 50°C
Humidity Use and Storage
20 to 80%
External Vibration / Impact
Encoder section : (BS EN 60068-2-6,7) (Vibration) frequency
55 to 2000Hz / max. acceleration 100m/s
2
(Impact) Acceleration 500m/s
2
/ activating
time 6ms
LM Guide section : See the general catalog.
External Strong Electromagnetic Field Nonexistent
Extension cable: Bending Resistant ɸ6mm
□□=03: 3m, 05: 5m, 10: 10m, 15: 15m
L=□□m
◆Optional Extension Cable: KLE-□□
