2. Adding Oil
To add oil, remove the oil filler cap located at the top of the
oil reservoir (Fig. 4.7B). Check and ensure the filter screen in
the filler neck is undamaged. Add 10W30 or 20W50API
Classification SJ oil until oil is visible in the oil level sight
glass (Fig. 4.7A).
3. Hydraulic Filter Replacement
The hydraulic oil filter (Fig. 4.7C) must be changed after
the first 50 hours of operation and every 150 hours
thereafter.
To change the filter; shut off the engine, lower the lift
arms, ground any attachment and set the parking brake.
Open the rear door and using an oil filter wrench remove
the filter element. Lubricate the new filter seal with system
fluid and reinstall hand tight. Note: The loader only has
one filter.
4. Draining System Fluid
Change the hydraulic oil:
1. After 1000 operating hours.
2. If the oil has become contaminated.
3. After any major hydrostatic repair.
To drain the oil: remove the drain plug located at the
bottom of the reservoir (Fig. 4.7D). Have a container(s)
ready to hold approximately 15 gallons (58 liters) of
fluid. Remove any metal particles stuck to the magnet.
Seal the plug with teflon tape when replacing.
4. MAINTENANCE
To avoid personal injury,
lower the lift arms, shut off
the engine, raise the seat bar
and cycle the hydraulics to
ensure they are locked. Then,
unlatch the seat belt and exit
the loader. Do not enter or
exit with the engine running
unless as specified in this
manual or under specific
service and backhoe
operating procedures.
WARNING
OIL RESERVOIR
DRAIN

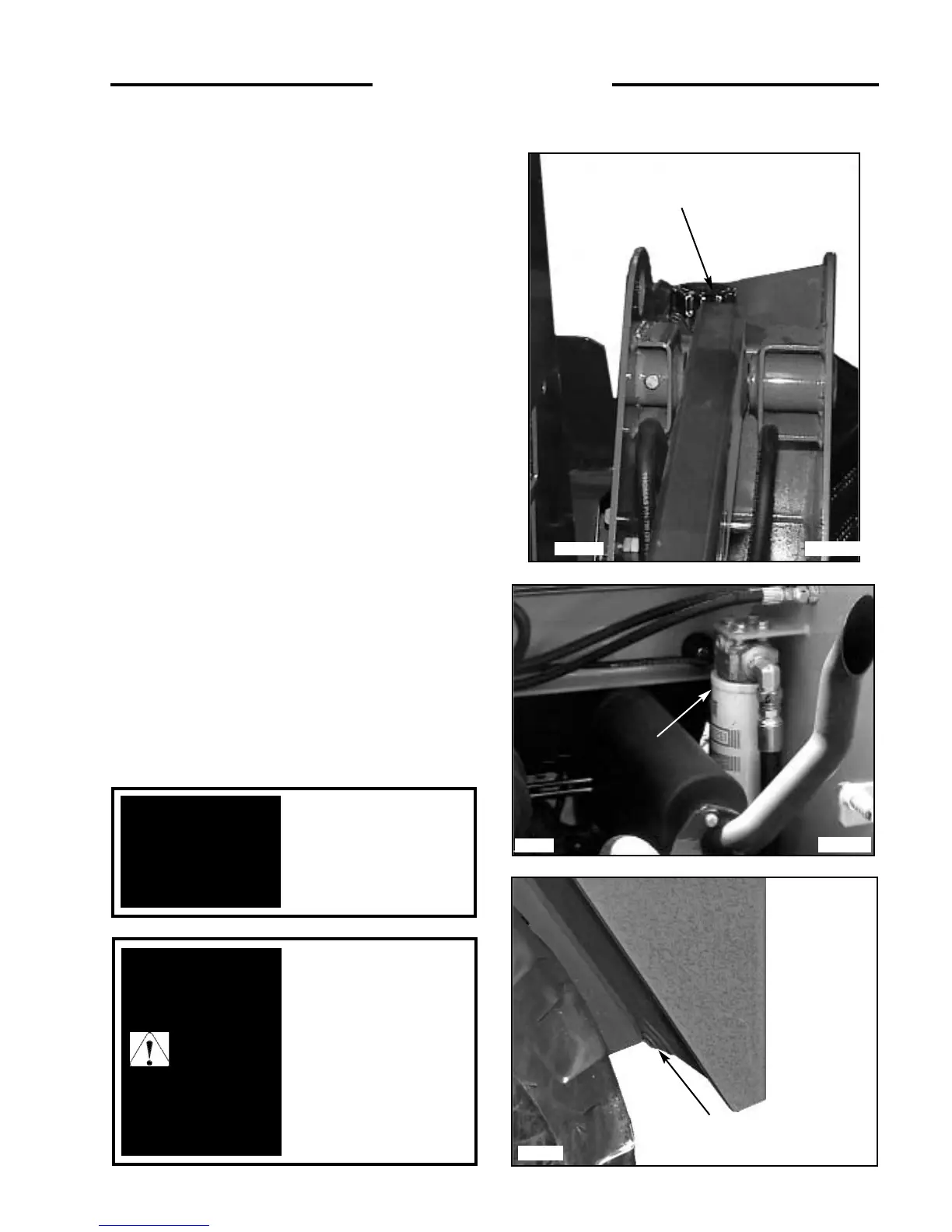

Fig. 4.7B
Fig. 4.7D
C1034
C-1108
Thomas recommends
that you abide by all
applicable enviromental
regulations when
disposing of oil.
IMPORTANT
OIL FILLER CAP
C3364
Fig. 4.7C
Hydraulic
Filter
