TS 970 Transfer Switch
PM163 REV 0 20/02/05 18 Thomson Power Systems

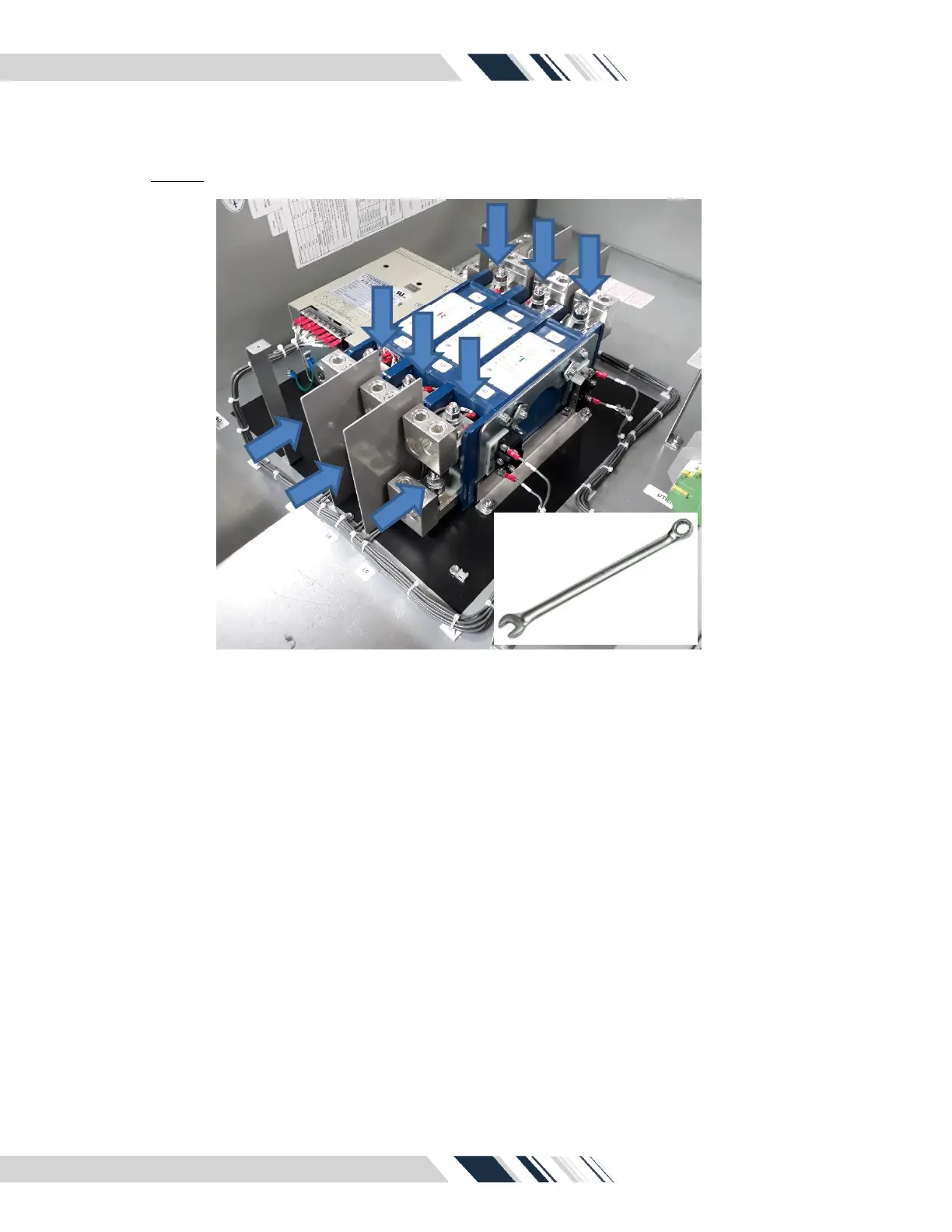

5. Loosen lug nut fasteners (9 in total) by using a 5/16” wrench. Disconnect all wire terminals.
NOTE: Remember to note all wire locations for proper re-installation
6. Replace the power contactor then repeat steps 1 through 5 backwards to re-assemble the new
contactor.
STEP 5
