TS 970 Transfer Switch
PM163 REV 0 20/02/05 17 Thomson Power Systems

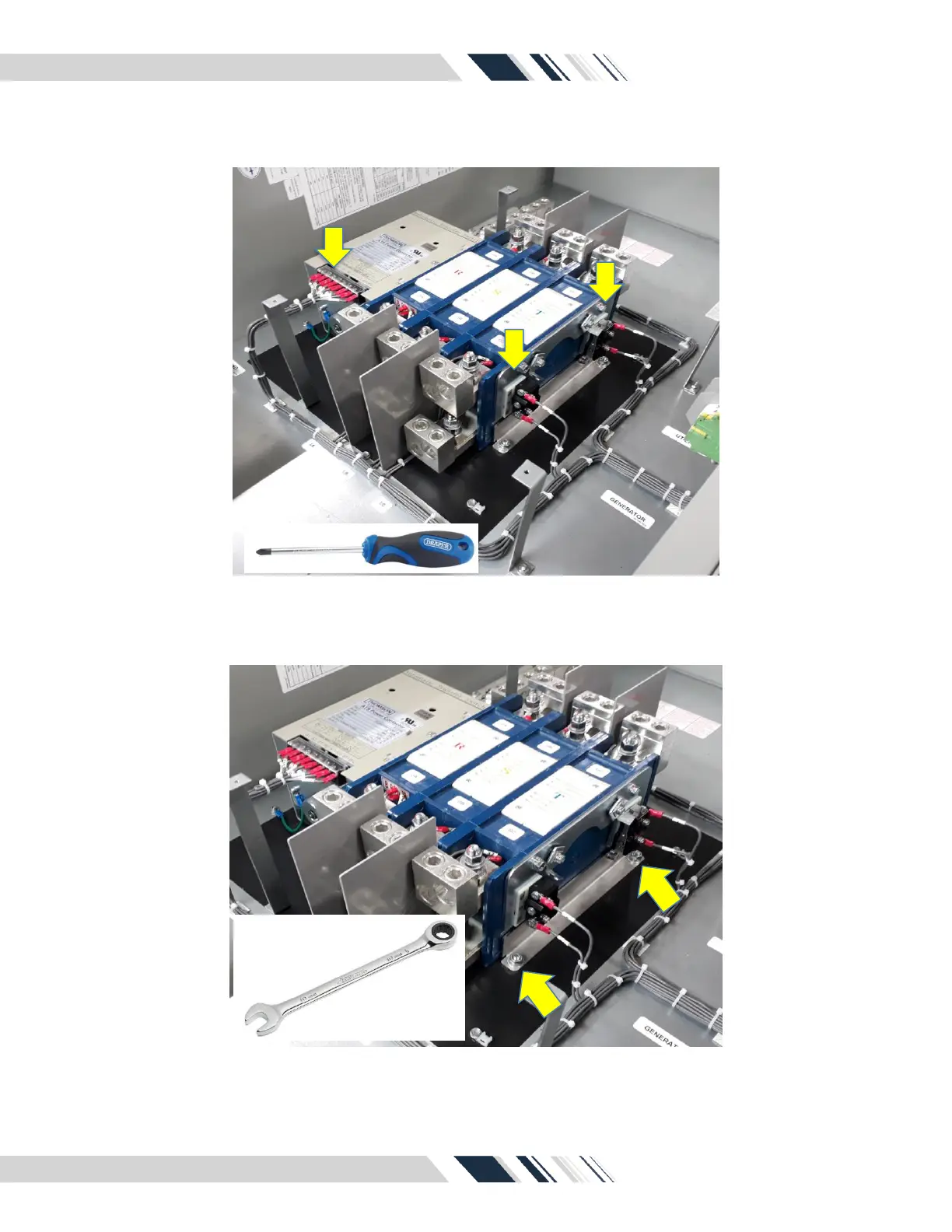

3. Disconnect harness connections on the power contactor (1) and limit switches (2 and 3) shown
in the figure below. Use a cross screw driver.
4. Remove the bolts located at the base of the power contactor using a 7/16” wrench.
1
2
3
STEP 3
STEP 4
