THOMSON HTS300 - Description of the Product; Front Side Components; Rear Side Connections

11
HOME CINEMA 5.1
HTS300
EN

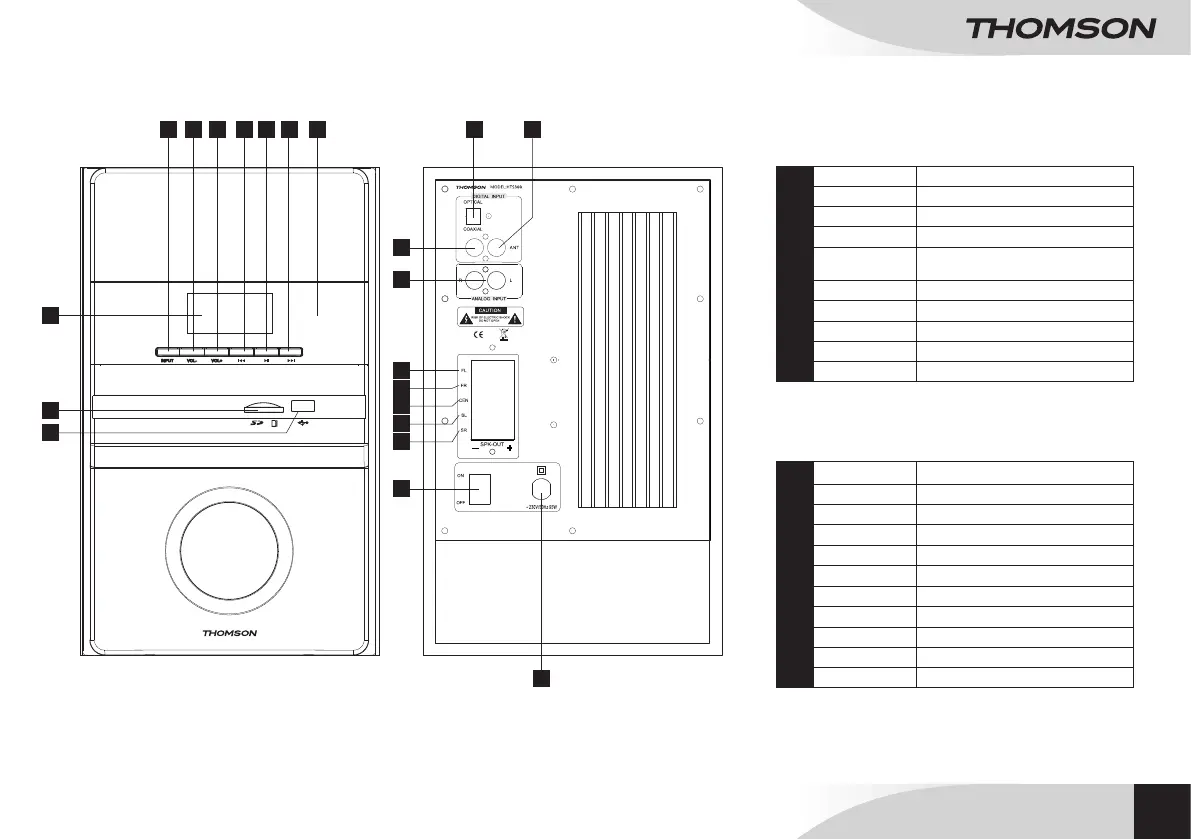

DESCRIPTION OF THE PRODUCT
FRONT SIDE
REAR SIDE
1
INPUT
Input selection
2
VOL-
Decreases sound volume
3
VOL+
Increases sound volume
4
7
Last track/frequency
5
12
Plays/pauses tracks & performs an FM
search
6
8
Next track/frequency
7
SD/MMC Port
8
USB port
9
LCD screen
10
Infrared sensor
11
Optical input
12
Coaxial input
13
Analogue audio input
14
FL: Left front speaker output
15
FR: Right front speaker output
16
CEN: Center speaker output
17
SL: Left rear speaker output
18
SR: Right rear speaker output
19
Supply cable
20
On/Off switch
21
Antennae socket
1
7
9
12
13
14
20
19
15
16
17
18
8
2 3 4 5 6 10 11 21
