THOMSON marathon TS 910 Series User Manual

PM 148 Rev 1 16/07/27 Part ID
THOMSON POWER SYSTEMS • 9087A - 198th STREET, LANGLEY, BC CANADA V1M 3B1
TELEPHONE: (604) 888-0110 • FAX: (604) 888-3381 • E-MAIL: info@thomsonps.com • www.thomsonps.com

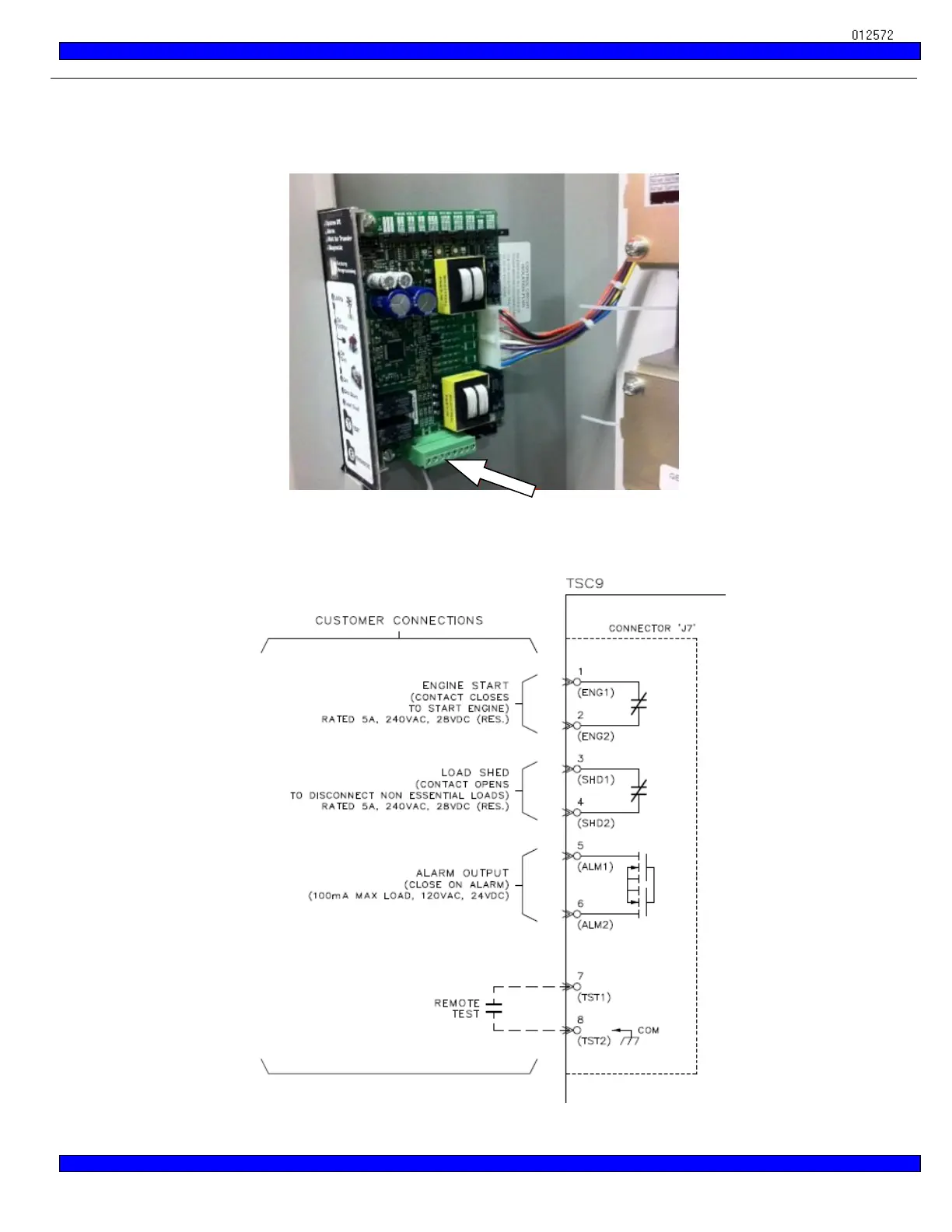

G. Control Wiring Connections
All control wiring connections are made directly on the TSC 9 Transfer controller. A removable plug-in clamp screw terminal block is provided at the
bottom end of the controller (see photo below).
Terminals are provided for the following control features: Refer to wiring diagram shown below for connection numbers.
CONTROL TERMINAL BLOCK
