H. TSC 9 Controller Configuration Jumpers

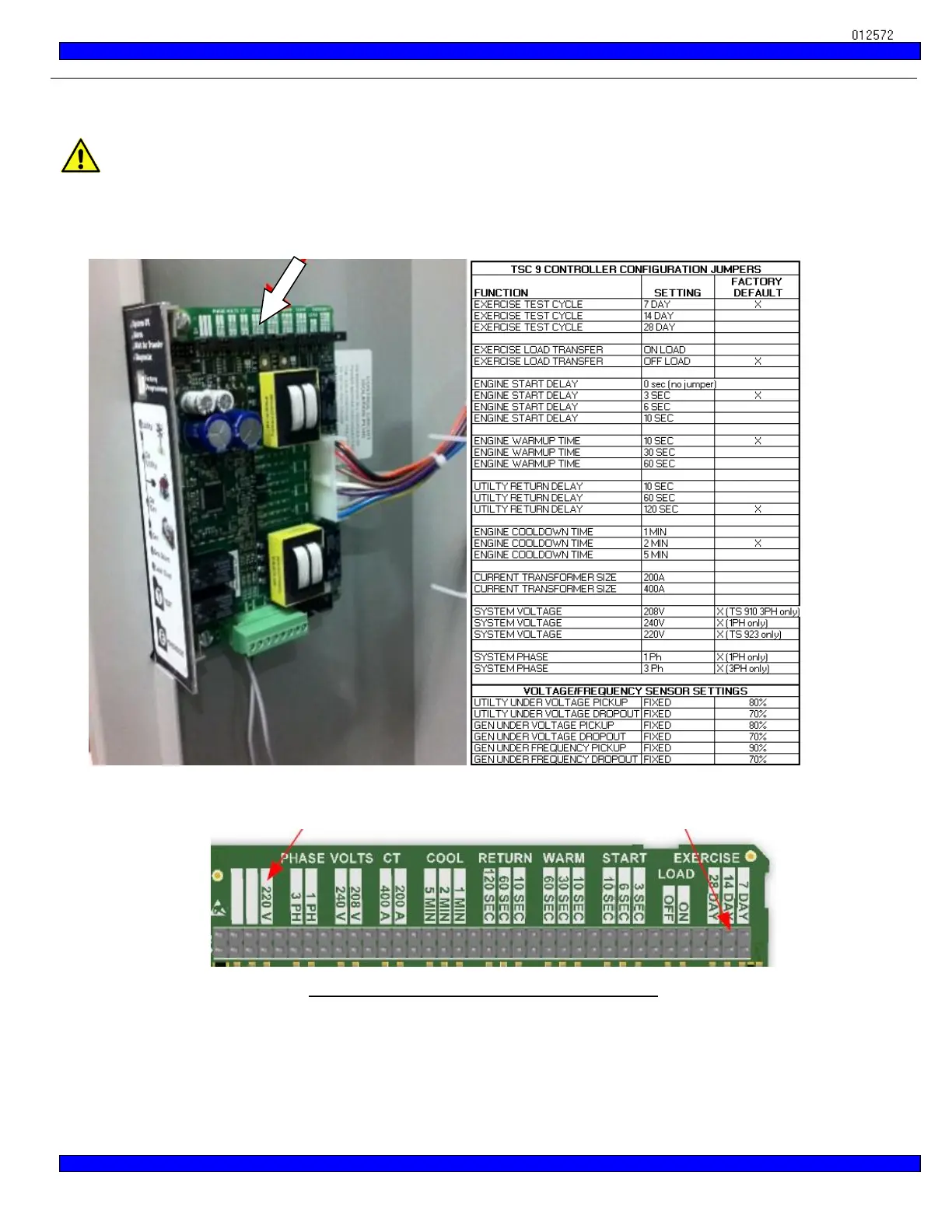

The following photo shows the location of user configurable jumpers on the TSC 9 controller. Factory default settings are shown in the table below.
WARNING: The transfer switch must be de-energized prior to opening the enclosure to access the TSC 9 configuration jumpers. Do not change
any configuration jumpers on the TSC 9 controller while the Transfer Switch is energized. Failure to follow these instructions can result in death or
serious injury.
TSC 9 Printed Circuit Board Jumper Pin Layout
TSC 9 CONFIGURATION JUMPERS
Settings
Jumpers
