Chapter 2
Basic Installation
20
2.3 Thomson Gateway Connection Essentials
Wiring

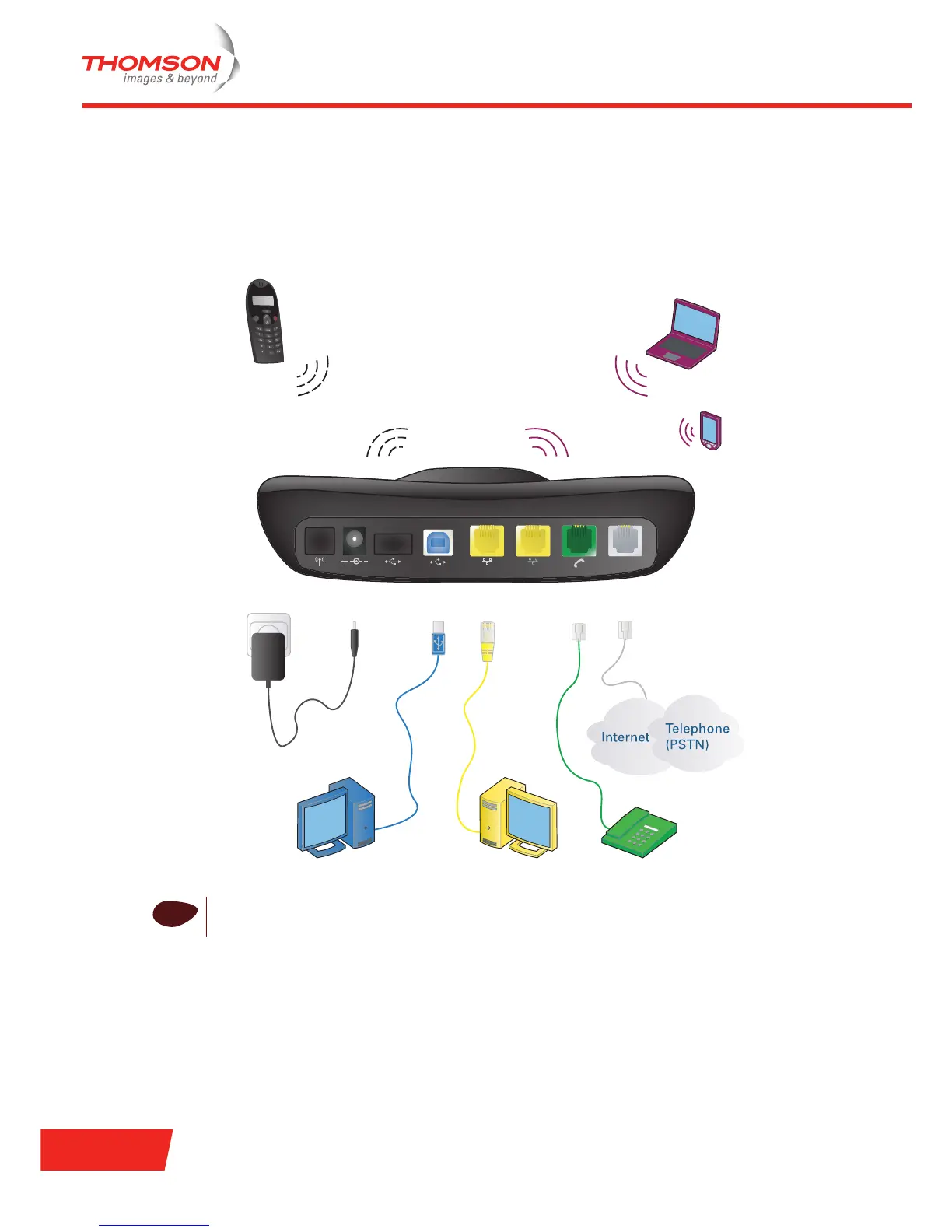

The image below shows all possible types of connection to the Thomson Gateway.
i
The colour coded printing on the backpanel of your Thomson Gateway will facilitate matching the
colour coded cables.
USB-B
DSL
ETH 1
ETH 2USB-A9V DC
R
