THOMSON THG570 - Rear Panel

Chapter 1: Connections and Setup
THG570 Power DS US ONLINE
LINK TEL1
TEL2 Description
CPE
Operation
X X X X
OFF
ON
FLASH
X X
No Ethernet Link
Ethernet Link
TX/RX Ethernet Traffic
SW
Download
Operation
ON FLASH
FLASH ON X X X
A software download and while
updating the FLASH memory

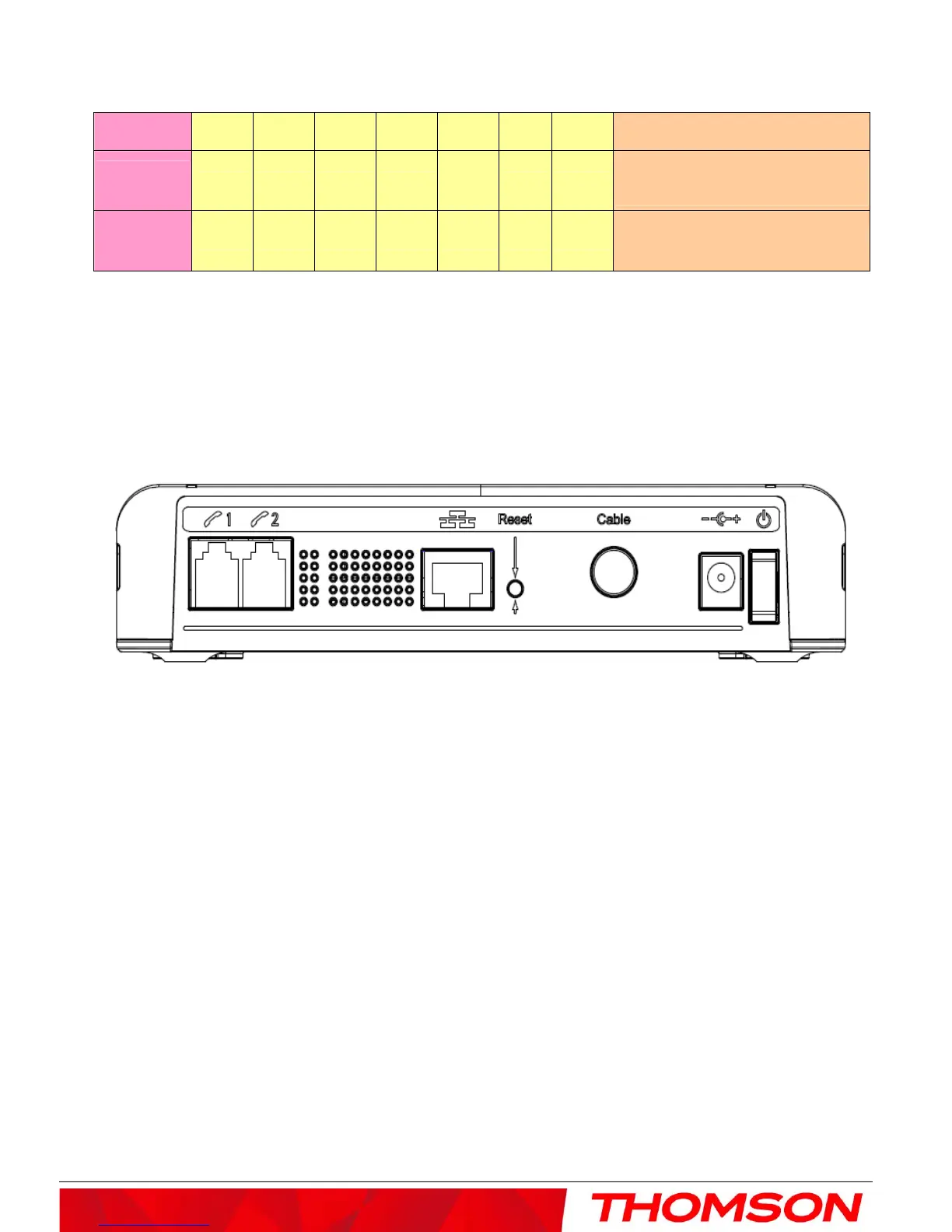

Rear Panel
z TEL 1 and TEL 2: RJ-11 Phone set connector
z GIGA ETHERNET: Ethernet 10/100/1000BaseT RJ-45 connector
z Reset: Reboot CM
z CABLE: F-Connector
z 12VDC: AC power socket
z on/off button: Power on/off switch
4
